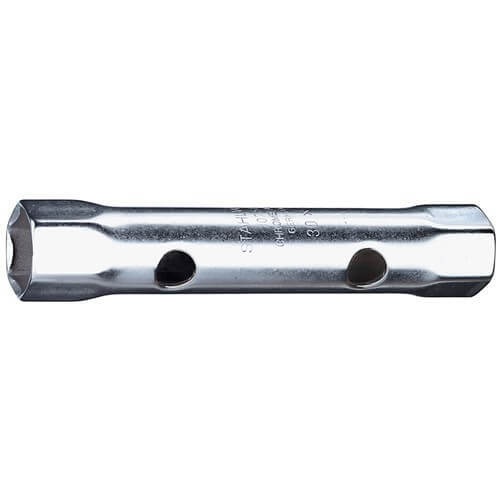

Stahlwille Metric tubular box spanners, 12 x 13mm

Stahlwille 10750 is a double ended tubular box spanner range in 18 metric size pairs from 6 x 7 to 55 x 60mm, from 110 to 245mm long. The tube is made from seamless drawn precision steel, countersunk at both ends, in Chrome Alloy Steel that is slide-ground and chrome-plated.

Where this product is used

• Metric hexagon nuts and bolts from 6 to 60mm across flats
• Hand-operated work where leverage is set by the tommy bar length
• Workshop kits that need a tube spanner with two sizes per tool

Features

• Double ended tubular box spanner, hexagon profile

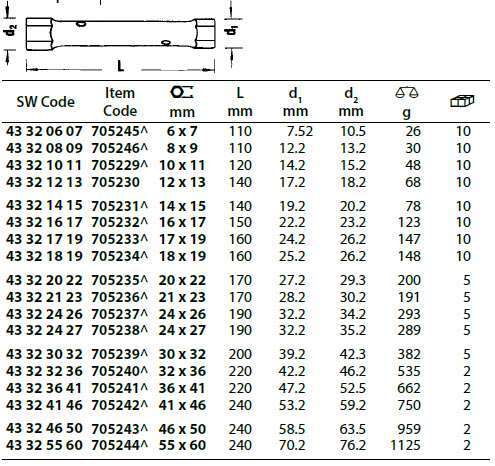

• 18 metric size pairs from 6 x 7 to 55 x 60mm
• Made to DIN 896 Form B
• Seamless drawn precision steel tube, chrome-plated
• Cross bores of 6, 7 or 8mm for a tommy bar
• Lengths from 110 to 245mm

Key specifications

Choosing the right option

Pick the size pair by the widths across flats of the fasteners. The tommy bar is a separate accessory and its order number depends on the cross bore: 48010006 for 6 x 7 to 14 x 15mm, 48010007 for 16 x 17 to 24 x 27mm and 48010008 for 30 x 32 to 55 x 60mm. For work where a ring or open end spanner reaches the fastener, see the double ended Stahlwille 20 offset ring spanners or the metric combination spanners.

Related Stahlwille products: metric combination spanners, metric ratchet ring spanners, metric double open end spanners, metric flare nut spanners.
