Stahlwille Circlip pliers for outside circlips, #A11
Available
Stahlwille 6546 is a 90° angled circlip pliers range for outside circlips (external rings on shafts), in 5 sizes: A01, A11, A21, A31 and A41, covering circlips from 3 to 140mm. Each size has precision cylindrical tips from 0.9 to 3.2mm diameter.
Where this product is used
- Fitting and removing outside circlips with limited access from above
- Maintenance on gearboxes, pumps and bearing housings
Features
- 5 sizes, A01 to A41, for outside circlips of 3 to 140mm
- Jaws angled 90° with precision cylindrical tips
- Drop-forged, polished head, dip-coated handles
- Made to DIN 5254 B
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | Circlip Plier |
| Standard | DIN 5254 B |
| Use | Outside circlips (external rings on shafts) |
| Jaws | Angled 90°, precision cylindrical tips, with closing spring |
| Sizes | A01, A11, A21, A31 and A41 |
| Size | A01, A11, A21, A31, A41 |
| Circlip range | 3 to 10mm, 10 to 25mm, 19 to 60mm, 40 to 100mm, 85 to 140mm |
| Tip diameter | 0.9 to 3.2mm |
| Length | 125mm, 170mm |
| Weight | 105 to 468 g |
Choosing the right option
For straight jaws see the Stahlwille 6545 circlip pliers for outside circlips. Inside circlips need the Stahlwille 6543 circlip pliers for inside circlips or the Stahlwille 6544 angled circlip pliers for inside circlips. A 4-piece set is the Stahlwille TCS 10821/4 circlip pliers set.
Related Stahlwille products: Stahlwille 6545 circlip pliers for outside circlips, Stahlwille 6543 circlip pliers for inside circlips, Stahlwille 6544 angled circlip pliers for inside circlips, Stahlwille TCS 10821/4 circlip pliers set.
| Option | Part number | SKU |
|---|---|---|
| #A1 | SW6546 6 001 - 65466001 | A0105498 |
| #A11 | SW6546 6 011 - 65466011 | A0105499 |
| #A21 | SW6546 6 021 - 65466021 | A0105500 |
| #A31 | SW6546 6 031 - 65466031 | A0105501 |
| #A41 | SW6546 6 041 - 64566041 | A0105502 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Stahlwille 6546 Circlip Pliers for Outside Circlips, 90 Degree Angled, A01 to A41: #A11
SKU: A0105499 | Model: SW6546 6 011 - 65466011

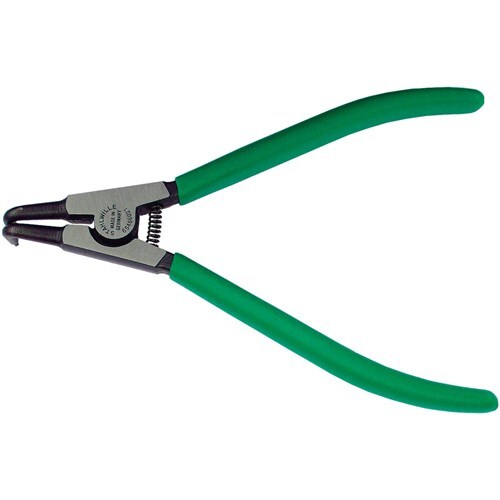

Stahlwille SW6546 A11: circlip pliers for outside circlips of 10 to 25mm, jaws angled 90°, 1.3mm tip, 125mm, 105 g.
