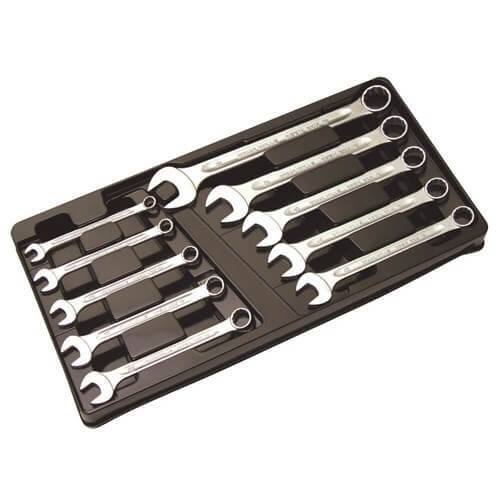

Stahlwille 13/10 Combination Spanner Set, 10-Piece, 8 to 19 mm

Stahlwille 13/10 is a metric combination spanner set of 10 pieces from 8 to 19mm across flats. Each spanner has the same size at both ends: an open end with the jaw angled at 15° and a 12-point ring offset by 15°. Made to DIN 3113 Form A / ISO 7738 Form A.

The set contains the 8, 9, 10, 11, 12, 13, 14, 15, 17 and 19mm spanners. They are the individually sold Stahlwille 13 spanners, so a worn or missing size can be replaced from the range. Set weight is 746 g. The ring has the Stahlwille Anti-Slip-Drive (AS-Drive) profile, which puts the force on the flanks of the bolt or nut rather than the corners. The spanners are Chrome Alloy Steel, chrome-plated. The spanners are drop-forged, hardened and cooled in an oil bath, with a double-T profile for bending strength, a round finish for grip, thin-walled rings for hard-to-reach fastening points and a reinforced transition from jaw to shaft, where the highest forces act (Offset Shaft Design).

Where this product is used

• Nuts and bolts from 8 to 19mm across flats
• Ring end for a firm hold, open end for quick turns or where a ring cannot be slipped over the fastener
• A graded set for a workshop bench, service vehicle or maintenance kit

Features

• 10-piece set, 8 to 19mm across flats
• Combination spanners, same size at both ends
• Jaw angled at 15°, ring offset by 15°
• 12-point AS-Drive ring
• Set weight 746 g
• Chrome Alloy Steel, chrome-plated
• Made to DIN 3113 Form A / ISO 7738 Form A

Key specifications

Choosing the right option

Pick the set by the sizes you use most. The spanners in it are also sold singly in the Stahlwille 13 combination spanners (metric, single), so one missing or worn size can be replaced on its own. Nearby sets: SW13/9 combination spanner set, 9 pieces, 9 to 22mm and SW13/11 combination spanner set, 11 pieces, 8 to 22mm.
