Stahlwille 10/10 MOTOR Double Open End Spanner Set, 10-Piece, 6 x 7 to 30 x 32 mm
Available

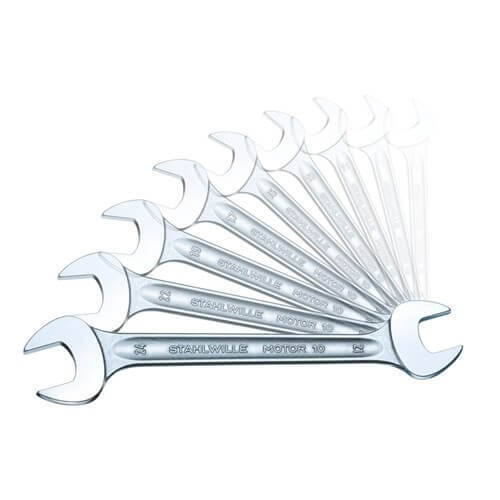

Stahlwille 10/10 is a metric MOTOR double open end spanner set of 10 pieces from 6 x 7 to 30 x 32mm across flats. Each spanner has a different size at each end, a straight design and the jaws angled at 15°. The 10 MOTOR spanners is made to DIN 3110 / ISO 10102.

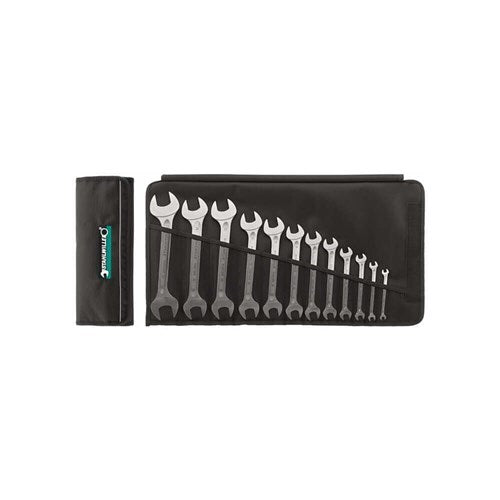

The set contains the 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 24 x 27 and 30 x 32mm spanners. They are the individually sold Stahlwille 10 MOTOR spanners, so a worn or missing size can be replaced from the range. Set weight is 1,540 g. The spanners are Chrome Alloy Steel, chrome-plated. The spanners are drop-forged in a die, hardened and cooled in an oil bath, with a slim, light construction, a double-T profile for bending strength and a round finish for grip.
Where this product is used
- Metric nuts and bolts from 6 x 7 to 30 x 32mm across flats
- Open end access where a ring spanner cannot be slipped over the fastener
- A graded set for a workshop bench, service vehicle or maintenance kit
Features
- 10-piece set, 6 x 7 to 30 x 32mm across flats
- Double open end spanners, a different size at each end, jaws angled at 15°
- Set weight 1,540 g
- Chrome Alloy Steel, chrome-plated
- Made to DIN 3110 / ISO 10102
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | Open End Spanner Set |
| Pieces | 10 |
| Size range | 6 x 7 to 30 x 32mm |
| Set weight | 1,540 g |
| Design | Straight, different size at each end |
| Jaw angle | 15° |
| Standard | DIN 3110 / ISO 10102 |
| Material | Chrome Alloy Steel, chrome-plated |
| Length | 120 to 300mm |
Choosing the right option
Pick the set by the sizes you use most. The spanners in it are also sold singly in the Stahlwille 10 MOTOR double open end spanners (metric, single), so one missing or worn size can be replaced on its own. Other Stahlwille sets: 10/12 double open end spanner set (12-piece) and 10/8 double open end spanner set (8-piece).
Related Stahlwille products: Stahlwille 10 MOTOR double open end spanners (metric, single), 10/12 double open end spanner set (12-piece), 10/8 double open end spanner set (8-piece).
