Stahlwille Small metric double open end spanners, 4.5mm
Available

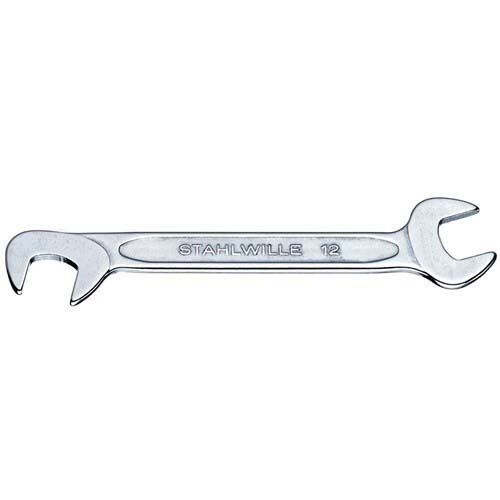

Stahlwille 12 ELECTRIC is a range of small double open end spanners in 15 metric sizes from 3.2 to 14mm across flats, from 70mm to 131mm long. Each spanner has the same size at both ends, with the jaws angled at 15 and 75°.
The spanners are Chrome Alloy Steel, chrome-plated, with a double-T profile for bending strength and the Stahlwille round finish for grip.
Where this product is used
- Small metric nuts and bolts from 3.2 to 14mm across flats
- Tight spaces and light assemblies where a slim spanner is wanted
- Instrument and small equipment work where a compact open end spanner suits
Features
- Small double open end spanner, same size at both ends
- 15 metric sizes from 3.2 to 14mm
- Jaws angled at 15 and 75°
- Chrome Alloy Steel, chrome-plated
- Lengths from 70 to 131mm
- Double-T profile for bending strength
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | Open End Spanner |
| Length | 70 to 131mm |
| Jaw angle | 15 and 75° |
| Material | Chrome Alloy Steel, chrome-plated |
| Sizes in this range | 15 |
| Width across flats | 3.2 to 14mm |
| Order no | 40060404 to 40065555 |
| Weight | 5 to 37 g |
Choosing the right option
Pick the size by the width across flats; each spanner has the same size at both ends. For two sizes in one tool see the Stahlwille 10 MOTOR double open end spanners, which start at 4 x 5mm. Inch sizes are in the Stahlwille 12a ELECTRIC spanners.
Related Stahlwille products: ELECTRIC 12 small double open end spanner sets, metric combination spanners, metric ratchet ring spanners, metric flare nut spanners.
| Option | Part number | SKU |
|---|---|---|
| 3.2 | SW12 3.2 - 40063232 | A0103675 |
| 3.5 | SW12 3.5 - 40063535 | A0103676 |
| 4 | SW12 4 - 40060404 | A0103677 |
| 4.5 | SW12 4.5 - 40064545 | A0103678 |
| 5 | SW12 5 - 40060505 | A0103679 |
| 5.5 | SW12 5.5 - 40065555 | A0103680 |
| 6 | SW12 6 - 40060606 | A0103681 |
| 7 | SW12 7 - 40060707 | A0103682 |
| 8 | SW12 8 - 40060808 | A0103683 |
| 9 | SW12 9 - 40060909 | A0103684 |
| 10 | SW12 10 - 40061010 | A0103670 |
| 11 | SW12 11 - 40061111 | A0103671 |
| 12 | SW12 12 - 40061212 | A0103672 |
| 13 | SW12 13 - 40061313 | A0103673 |
| 14 | SW12 14 - 40061414 | A0103674 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Stahlwille 12 ELECTRIC Small Double Open End Spanners, Metric, 3.2 to 14 mm: 4.5
SKU: A0103678 | Model: SW12 4.5 - 40064545
Stahlwille SW12 4.5mm: small double open end spanner, 70mm long, 5 g, order number 40064545. Width (b): 10.5mm.
