Stahlwille Adjustable hook spanners, 20-42mm
Available

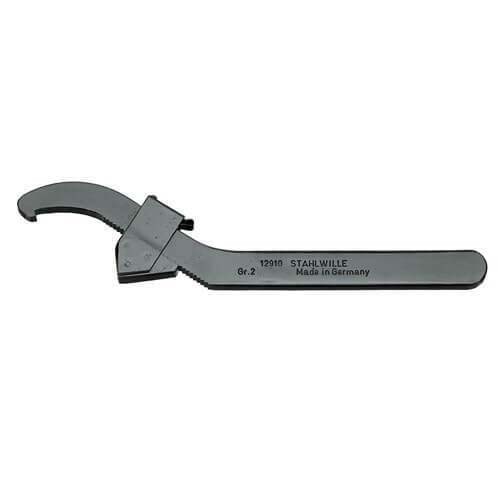

Stahlwille 12910 is an adjustable hook spanner for slotted nuts, in three sizes with span ranges of 20 to 42mm, 45 to 90mm and 95 to 165mm. A spare spring is available for each size: 90432452 for size 1, 90432453 for size 2 and 90432454 for size 3.
Where this product is used
- Slotted nuts within the 20 to 165mm span ranges
- Hand-operated work on slotted nuts where one adjustable spanner covers a range of sizes
- Workshop kits that need adjustable hook spanners in three sizes
Features
- Adjustable hook spanner for slotted nuts
- Three sizes: 20 to 42, 45 to 90 and 95 to 165mm span
- Made to DIN 1810
- Alloy special steel, blued finish
- Serration (toothing) on the hook
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | Specialty Spanner |
| Profile | Adjustable, with serration, for slotted nuts |
| Standard | DIN 1810 |
| Material | Alloy special steel, blued |
| Sizes in this range | 3 |
| Size | 1 to 3 |
| Span range | 20-42mm, 45-90mm, 95-165mm |
| Order no | 44010001 to 44010003 |
| Weight | 90 to 686 g |
Choosing the right option
Pick the size by the span range that covers the slotted nut you are turning: size 1 covers 20 to 42mm, size 2 covers 45 to 90mm and size 3 covers 95 to 165mm. Where a nut has flats rather than slots, see the metric double open end spanners or the metric combination spanners.
Related Stahlwille products: metric combination spanners, metric double open end spanners, metric ratchet ring spanners, metric flare nut spanners.
| Option | Part number | SKU |
|---|---|---|
| 20-42 | SW12910GR.1 20-42 - 44010 | A0103700 |
| 45-90 | SW12910GR.2 45-90 - 44010 | A0103701 |
| 95-165 | SW12910GR.3 95-165 - 4401 | A0103702 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Stahlwille 12910 Adjustable Hook Spanners for Slotted Nuts, 20 to 165 mm: 20-42
SKU: A0103700 | Model: SW12910GR.1 20-42 - 44010
Stahlwille SW12910 20-42mm: adjustable hook spanner for slotted nuts, 90 g, order number 44010001.
