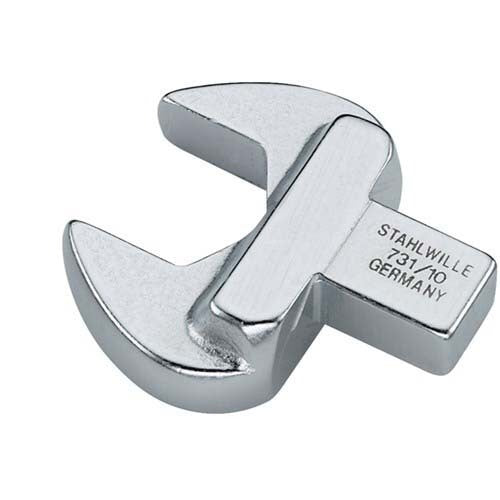

Stahlwille SW731/10 7 mm Open End Insert Tool, 9 x 12 mm Connection
Available
The Stahlwille 731/10 is an open end insert tool range in 13 metric sizes from 7 to 19 mm across flats, with a 9 x 12 mm connection to the tool holder of the torque wrench (manufacturer-stated).
The datasheets list the tools for torque wrenches with a square receiver, and describe the plating as chrome over nickel that is durable and flake-resistant, drop-forged, hardened and cooled in an oil bath. They print no standard, no maximum torque and no material grade. Stahlwille lists its MANOSKOP torque wrenches in the 2017 brochure with either a 9 x 12 mm or a 14 x 18 mm insert tool holder, so the connection on the insert tool has to match the holder on the wrench.
Where this product is used
- Hexagon nuts and bolts from 7 to 19 mm across flats
- Torque wrenches with a 9 x 12 mm insert tool holder
- Torque-controlled work on fasteners where an open end head is wanted
Features
- Open end insert tool, 9 x 12 mm connection (manufacturer-stated)
- 13 metric sizes from 7 to 19 mm across flats (manufacturer-stated)
- Chrome plating over nickel, drop-forged and hardened (manufacturer-stated)
- Cooled in an oil bath after hardening (manufacturer-stated)
- Heads from 22 to 42 mm wide (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Connection | 9 x 12 mm |
| Profile | Open end head, 9 x 12 mm connection |
| Material | Chrome plating over nickel, drop-forged, hardened and cooled in an oil bath |
| Sizes in this range | 13 |
Key specifications
| Size (across flats) | Order no. | Width (b) | Height (h) | Weight |
|---|---|---|---|---|
| 7 mm | 58211007 | 22 mm | 5 mm | 40 g |
| 8 mm | 58211008 | 22 mm | 5 mm | 39 g |
| 9 mm | 58211009 | 26 mm | 5.5 mm | 38 g |
| 10 mm | 58211010 | 26 mm | 5.5 mm | 42 g |
| 11 mm | 58211011 | 26 mm | 5.5 mm | 41 g |
| 12 mm | 58211012 | 30 mm | 7 mm | 43 g |
| 13 mm | 58211013 | 30 mm | 7 mm | - |
| 14 mm | 58211014 | 35 mm | 8 mm | 52 g |
| 15 mm | 58211015 | 35 mm | 8 mm | 51 g |
| 16 mm | 58211016 | 38 mm | 8.5 mm | 58 g |
| 17 mm | 58211017 | 38 mm | 8.5 mm | 60 g |
| 18 mm | 58211018 | 42 mm | 9 mm | 71 g |
| 19 mm | 58211019 | 42 mm | 9 mm | 74 g |
A dash means the figure is not published on this page. Lengths, widths and weights are manufacturer-stated.
Selecting the right option
The 731/10 has a 9 x 12 mm connection. The larger sizes of open end insert tool with a 14 x 18 mm connection are the Stahlwille 731/40 open end insert tools, and ring heads are the Stahlwille 732 ring insert tools. Stahlwille lists its MANOSKOP torque wrenches in the 2017 brochure with either a 9 x 12 mm or a 14 x 18 mm insert tool holder, so the connection on the insert tool has to match the holder on the wrench. Check the holder size on your wrench, for example the 730N MANOSKOP clicking torque wrenches or the 730 Quick MANOSKOP torque wrenches, before ordering.
Related products
Related Stahlwille tools: 730N MANOSKOP clicking torque wrenches, 730 Quick MANOSKOP torque wrenches, 735 ratchet insert tools, 734 square drive insert tools and 725QR ratchet insert tools.
