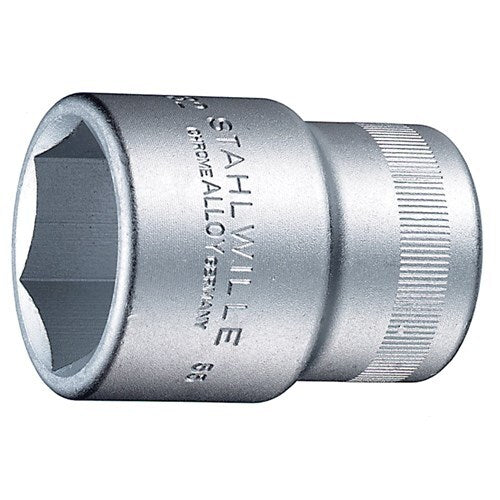

Stahlwille SW55 19 mm Hexagon Socket, 3/4" Drive, 50 mm Long
Out of stock
The Stahlwille 55 is a 3/4" drive socket range in metric sizes from 19 to 60 mm, 16 sizes in all. Unlike the other Stahlwille sockets in this group the 55 has a hexagon (6-point) profile, and lengths step from 50 to 80 mm with the size (manufacturer-stated).
The hexagon profile carries Stahlwille's AS-Drive (Anti-Slip Drive) form, which the maker says transmits high forces to the flats of nuts and bolts without damaging them. The sockets are HPQ steel, chrome-plated, and Stahlwille specifies hand operation only. Stahlwille lists the range to DIN 3124 / ISO 2725-1 / ASME B 107.5 M (manufacturer-stated).
Where this product is used
- Large metric fasteners from 19 to 60 mm turned with 3/4" drive ratchet heads and bar handles
- Heavy maintenance on plant, fleet and structural fasteners
- Hand-operated work where a 6-point socket suits the fastener
Features
- 3/4" internal square drive, metric sizes 19 to 60 mm (manufacturer-stated)
- Lengths from 50 to 80 mm, stepped by size (manufacturer-stated)
- Hexagon (6-point) profile with AS-Drive anti-slip form (manufacturer-stated)
- HPQ steel, chrome-plated (manufacturer-stated)
- Hand operation only (manufacturer-stated)
- Listed to DIN 3124 / ISO 2725-1 / ASME B 107.5 M (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Square drive | 3/4" |
| Sizes | 19 to 60 mm |
| Length | 50 to 80 mm |
| Profile | Hexagon (6-point) with AS-Drive profile |
| Standard | DIN 3124 / ISO 2725-1 / ASME B 107.5 M (manufacturer-stated) |
| Material | HPQ steel, chrome-plated |
| Operation | Hand operation only |
| Sizes in this range | 16 |
Key specifications
| Size (across flats) | Order no. | Length | Weight |
|---|---|---|---|
| 19 mm | 05010019 | 50 mm | 183 g |
| 21 mm | 05010021 | 50 mm | - |
| 22 mm | 05010022 | 51 mm | 199 g |
| 24 mm | 05010024 | 51 mm | 200 g |
| 27 mm | 05010027 | 54 mm | 263 g |
| 30 mm | 05010030 | 58 mm | 313 g |
| 32 mm | 05010032 | 58 mm | 326 g |
| 33 mm | 05010033 | 60 mm | 372 g |
| 34 mm | 05010034 | 60 mm | 363 g |
| 36 mm | 05010036 | 60 mm | 386 g |
| 38 mm | 05010038 | 64 mm | 429 g |
| 41 mm | 05010041 | 67 mm | - |
| 46 mm | 05010046 | 73 mm | 600 g |
| 50 mm | 05010050 | 80 mm | 769 g |
| 55 mm | 05010055 | 80 mm | 970 g |
| 60 mm | 05010060 | 80 mm | 1,025 g |
A dash means no weight is published for that size on this page. Lengths and weights are manufacturer-stated.
Selecting the right option
The 55 is the metric range in 3/4" drive and the only hexagon-profile socket in this group; the 12-point (bi-hex) alternative for inch sizes is the Stahlwille 55a 3/4" Drive Bi-Hex Sockets. For metric sizes up to 34 mm the 1/2" drive Stahlwille 50 1/2" Drive Bi-Hex Sockets is lighter and has a 12-point profile.
Related products
Related Stahlwille 3/4" drive tools: Stahlwille 552 3/4" Drive QuickRelease Reversible Ratchet Head, Stahlwille 558 Bar Handle, Stahlwille 556 3/4" Drive Sliding Head, Stahlwille 554 3/4" Drive QuickRelease Angle-Joint Head, Stahlwille 514 Step-Up Adaptor, Stahlwille 568 Reducing Adaptor and Stahlwille 569 Step-Up Adaptor.
