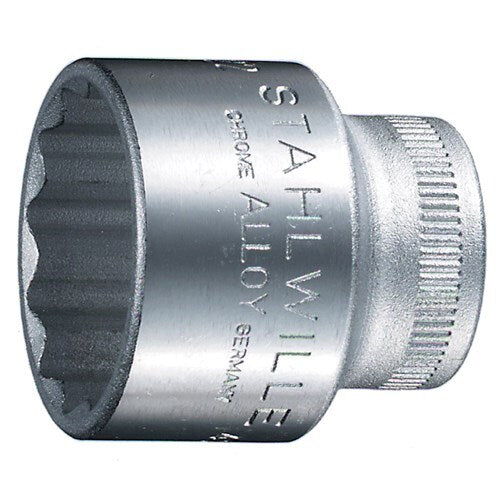

Stahlwille Metric 3/8" bi-hex sockets, 7mm

Stahlwille 45 is a 3/8" drive bi-hex socket range in metric sizes from 7 to 24mm. The 17 sizes run from 24 to 35mm long, so the socket grows with the size rather than staying one fixed length.

The bi-hex (double hexagon, 12-point) profile carries Stahlwille's AS-Drive (Anti-Slip Drive) form, which transmits high forces to the flats of nuts and bolts without damaging them. The sockets are HPQ steel, chrome-plated, for hand operation only. The range is made to DIN 3124 / ISO 2725-1 / ASME B 107.5M / DIN EN 3709.

Where this product is used

• General metric fastening from 7 to 24mm with a 3/8" drive ratchet or handle
• Workshop and maintenance sets built around 3/8" drive
• Work where a short, thin-walled socket is needed

Features

• 3/8" internal square drive, metric sizes 7 to 24mm
• Lengths from 24 to 35mm, stepped by size
• Bi-hex (12-point) profile with AS-Drive anti-slip form
• HPQ steel, chrome-plated
• Hand operation only
• Made to DIN 3124 / ISO 2725-1 / ASME B 107.5M / DIN EN 3709

Key specifications

Choosing the right option

The 45 is the standard-length 3/8" metric socket. When the fastener is recessed, the Stahlwille 46 3/8" Drive Long Bi-Hex Sockets is 54 to 65mm long in the same drive size. For inch fasteners see the Stahlwille 45a 3/8" Drive Bi-Hex Sockets. For metric sizes above 24mm move to the 1/2" drive Stahlwille 50 1/2" Drive Bi-Hex Sockets.

Related Stahlwille products: Stahlwille 435QR N 3/8" Drive QuickRelease Fine-Tooth Ratchet, Stahlwille 435-2K 3/8" Drive Reversible Ratchet, Stahlwille 452QR 3/8" Drive QuickRelease Flexible-Joint Ratchet, Stahlwille 427 3/8" Drive Extension Bars.
