Stahlwille SW40DL 5 mm Long Bi-Hex Socket, 1/4" Drive, 50 mm
Available

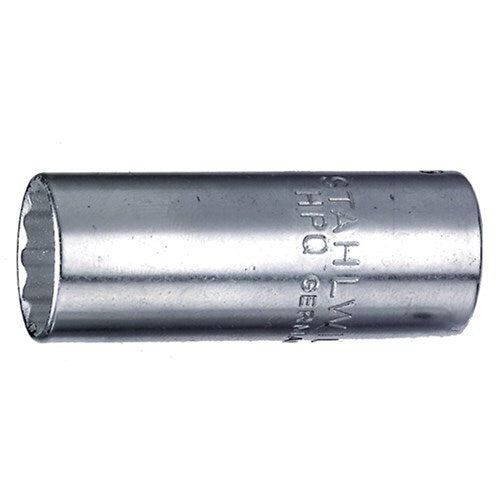

The Stahlwille 40DL is the long version of the 1/4" drive metric bi-hex socket, 50 mm long in every size from 5 to 14 mm. That is more than double the 23 mm of the standard 40D (manufacturer-stated).
Stahlwille's datasheets call this series the long version, and its 2017 brochure lists it as extra deep. The bi-hex (double hexagon, 12-point) profile carries Stahlwille's AS-Drive (Anti-Slip Drive) form, which the maker says transmits high forces to the flats of nuts and bolts without damaging them. The sockets are HPQ steel, chrome-plated, and Stahlwille specifies hand operation only. The range is listed to DIN EN 3710 / DIN EN 3709 / DIN 3124 / ISO 2725-1 / ASME B 107.5M (manufacturer-stated).
Where this product is used
- Metric fasteners from 5 to 14 mm that sit below a surface or on a stud
- Reaching a nut that a standard 23 mm socket cannot clear
- Hand-operated work with 1/4" drive ratchets and extension bars
Features
- 1/4" internal square drive, metric sizes 5 to 14 mm (manufacturer-stated)
- 50 mm long in every size (manufacturer-stated)
- Bi-hex (12-point) profile with AS-Drive anti-slip form (manufacturer-stated)
- HPQ steel, chrome-plated (manufacturer-stated)
- Hand operation only (manufacturer-stated)
- Listed to DIN EN 3710 / DIN EN 3709 / DIN 3124 / ISO 2725-1 / ASME B 107.5M (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Square drive | 1/4" |
| Sizes | 5 to 14 mm |
| Length | 50 mm |
| Profile | Bi-hex (double hexagon, 12-point) with AS-Drive profile |
| Standard | DIN EN 3710 / DIN EN 3709 / DIN 3124 / ISO 2725-1 / ASME B 107.5M (manufacturer-stated) |
| Material | HPQ steel, chrome-plated |
| Operation | Hand operation only |
| Sizes in this range | 11 |
Key specifications
| Size (across flats) | Order no. | Length | Weight |
|---|---|---|---|
| 5 mm | 01240005 | 50 mm | - |
| 5.5 mm | 01240055 | 50 mm | 16 g |
| 6 mm | 01240006 | 50 mm | 18 g |
| 7 mm | 01240007 | 50 mm | 21 g |
| 8 mm | 01240008 | 50 mm | 23 g |
| 9 mm | 01240009 | 50 mm | 30 g |
| 10 mm | 01240010 | 50 mm | 35 g |
| 11 mm | 01240011 | 50 mm | 40 g |
| 12 mm | 01240012 | 50 mm | 47 g |
| 13 mm | 01240013 | 50 mm | 50 g |
| 14 mm | 01240014 | 50 mm | 57 g |
A dash means no weight is published for that size on this page. Lengths and weights are manufacturer-stated.
Selecting the right option
Choose the 40DL when reach is the problem and the fastener is metric. The standard-length Stahlwille 40D 1/4" Drive Bi-Hex Sockets is 23 mm long and suits open fasteners. For inch sizes at the same 50 mm length see the Stahlwille 40aDL 1/4" Drive Long Bi-Hex Sockets. If 50 mm is still short, a 1/4" drive extension bar adds reach.
