Taper Lock Bush 1008, 20 mm Bore, 6 x 6 mm Keyway, Steel
Available
These metric taper lock bushes are steel, with metric bores. The range covers 11 series, from 1008 to 5050, and 71 bore sizes from 20 to 125 mm.

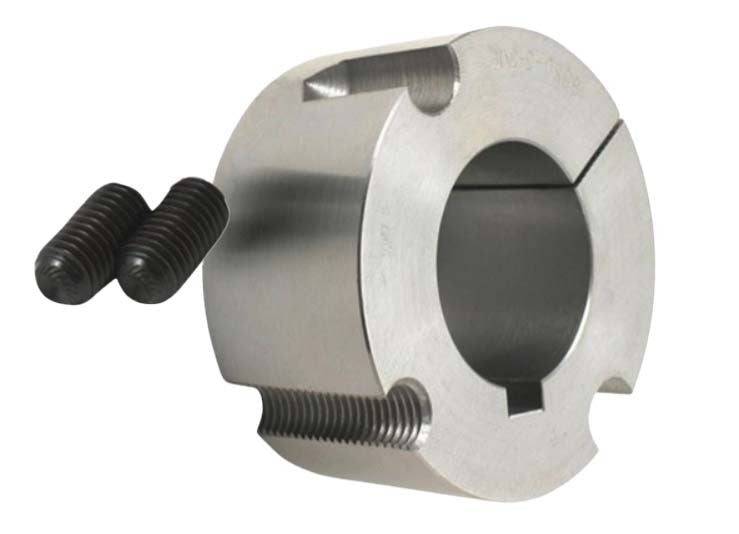

A taper lock bush fits into a hub with a matching tapered bore, such as a taper lock pulley, sprocket or coupling hub. The bush is split so it clamps onto the shaft when its screws are tightened, and it can be removed and refitted.
Choose the bush by series, which must match the series of the hub, and then by bore to suit your shaft. The table below lists the bores available in each series, with the length and screws for that series.
Where this product is used
- Fitting taper lock V pulleys to a shaft
- Fitting taper lock sprockets to a shaft
- Fitting taper lock coupling hubs and other taper lock hubs to a shaft
Features
- Steel taper lock bush, series 1008 to 5050
- Metric bores from 20 to 125 mm
- Keyway size listed for each bore
- Two screws on series up to 3030 and three screws on series 3525 and above
- Can be removed and refitted
- Fits a hub with a matching tapered bore of the same series
Key specifications
| Specification | Detail |
|---|---|
| Product | Taper lock bush |
| Material | Steel |
| Bore system | Metric |
| Series | 1008 to 5050 |
| Bore range | 20 to 125 mm |
| Number of sizes | 71 |
Series and bore sizes
| Series | Bore range (mm) | Bores available (mm) | Length (mm) | Screws (qty x size, in) |
|---|---|---|---|---|
| 1008 | 20 to 25 | 20, 25 | 22.2 | 2 x 1/4 x 1/2 |
| 1108 | 25 to 28 | 25, 28 | 22.2 | 2 x 1/4 x 1/2 |
| 1210 | 24 to 32 | 24, 25, 28, 30, 32 | 25.4 | 2 x 3/8 x 5/8 |
| 1610 | 24 to 42 | 24, 25, 28, 30, 32, 35, 38, 40, 42 | 25.4 | 2 x 3/8 x 5/8 |
| 2012 | 20 to 50 | 20, 24, 25, 28, 30, 32, 35, 38, 40, 42, 45, 48, 50 | 31.8 | 2 x 7/16 x 7/8 |
| 2517 | 25 to 65 | 25, 28, 30, 32, 35, 38, 40, 42, 45, 48, 50, 55, 60, 65 | 44.5 | 2 x 1/2 x 1 |
| 3020 | 48 to 75 | 48, 50, 55, 60, 65, 70, 75 | 50.8 | 2 x 5/8 x 1-1/4 |
| 3535 | 70 to 100 | 70, 75, 80, 85, 90, 100 | 88.9 | 3 x 1/2 x 1-1/2 |
| 4040 | 80 to 110 | 80, 85, 90, 95, 100, 110 | 101.6 | 3 x 5/8 x 1-3/4 |
| 4545 | 100 to 110 | 100, 105, 110 | 114.3 | 3 x 3/4 x 2 |
| 5050 | 100 to 125 | 100, 110, 120, 125 | 127 | 3 x 7/8 x 2-1/4 |
Selecting and fitting
Check the series number on the hub and choose a bush of the same series. The bore must suit your shaft diameter, and the keyway listed for the bore is the key size for the shaft and hub. Tighten the screws using the torque in the installation instructions for the bush or hub you are fitting.
Length and screw sizes are nominal and are for reference. Contact AIMS to confirm a measurement if it is critical to your application.
