Sutton Carbon Hand Tap Set UNC #10-24 - M2190483, 3 Pieces
Regular price
$39.47
Sale price
$39.47
Regular price
Inc. GST
Available

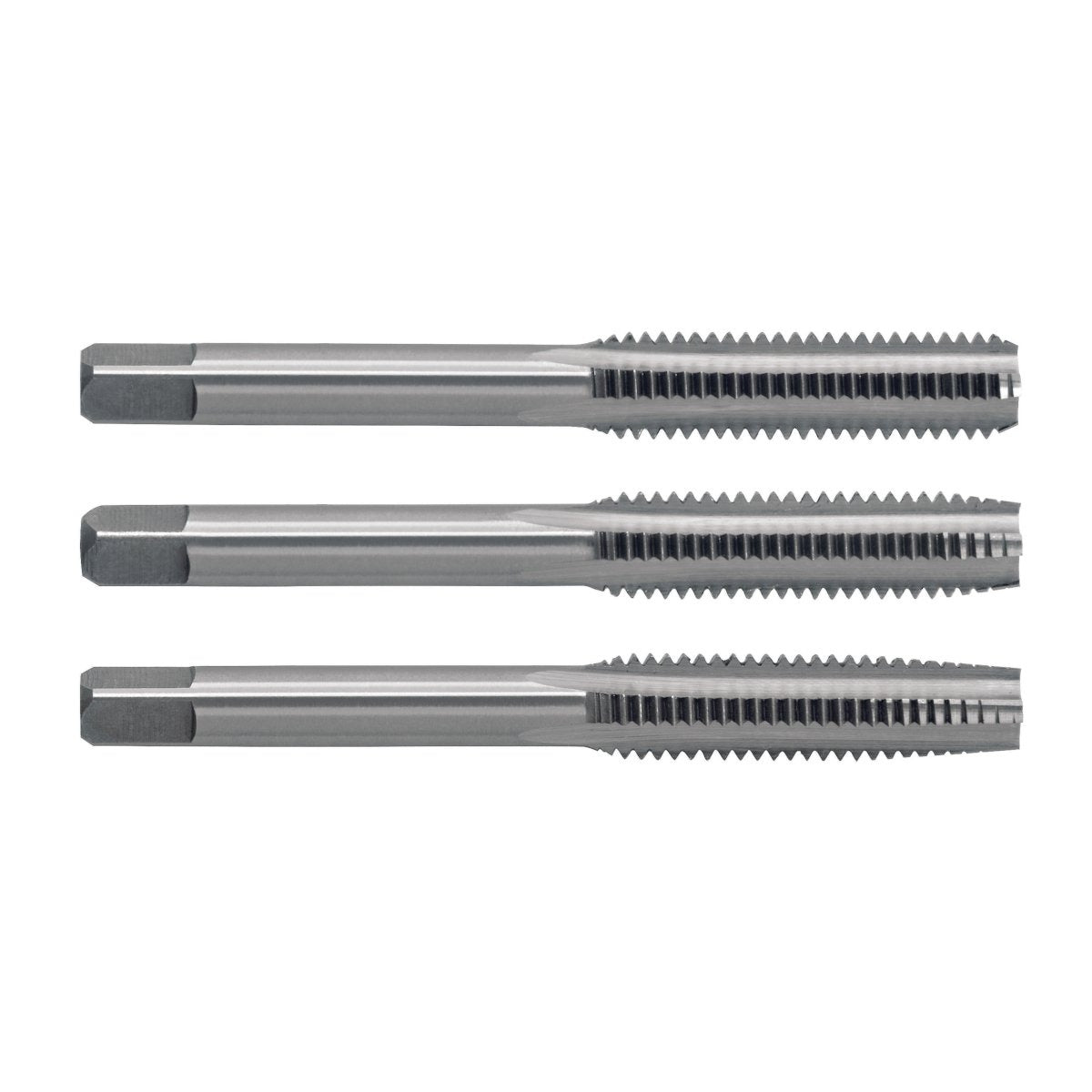

The Sutton carbon hand tap set (M2190483) holds a taper, an intermediate and a bottoming tap for cutting UNC #10-24 threads by hand. The taps have straight flutes and a square shank for use with a tap wrench.
Where this product is used
- Routine maintenance, repair work and rethreading where high accuracy and tolerance thread is not critical.
- Hand tapping only; the taps are not for machine use.
Design features
- Taper lead: starts the thread.
- Intermediate lead: suits through holes.
- Bottoming lead: suits blind holes.
- Straight flutes: suit through-hole tapping up to 1.5 x diameter.
- Bright finish: for general purpose use, non-ferrous metals and plastics.
Sizes and pack options
Item number, thread size, tapping drill size and piece count are shown below.
| Sutton item no. | Thread size | Tapping drill (mm) | Pieces | Supplied as |
|---|---|---|---|---|
| M2190483 | UNC #10-24 | 3.8 | 3 | Set of 3 taps |
Key specifications
| Specification | Detail |
|---|---|
| Brand | Sutton |
| Item number | M2190483 |
| Type | Hand tap set |
| Thread size | UNC #10-24 |
| Thread form | Unified |
| Tapping drill size | 3.8 mm |
| Material | Carbon steel |
| Finish | Bright |
| Shank | Square |
| Maximum cut depth | 1.5 x diameter |
| Pieces | 3 (taper, intermediate, bottoming) |
| Barcode | 9311963071732 |
