SKU: A0004910

Type: Stub Drill Bit

$44.04
$44.04
Inc. GST
Buy It Now

Available

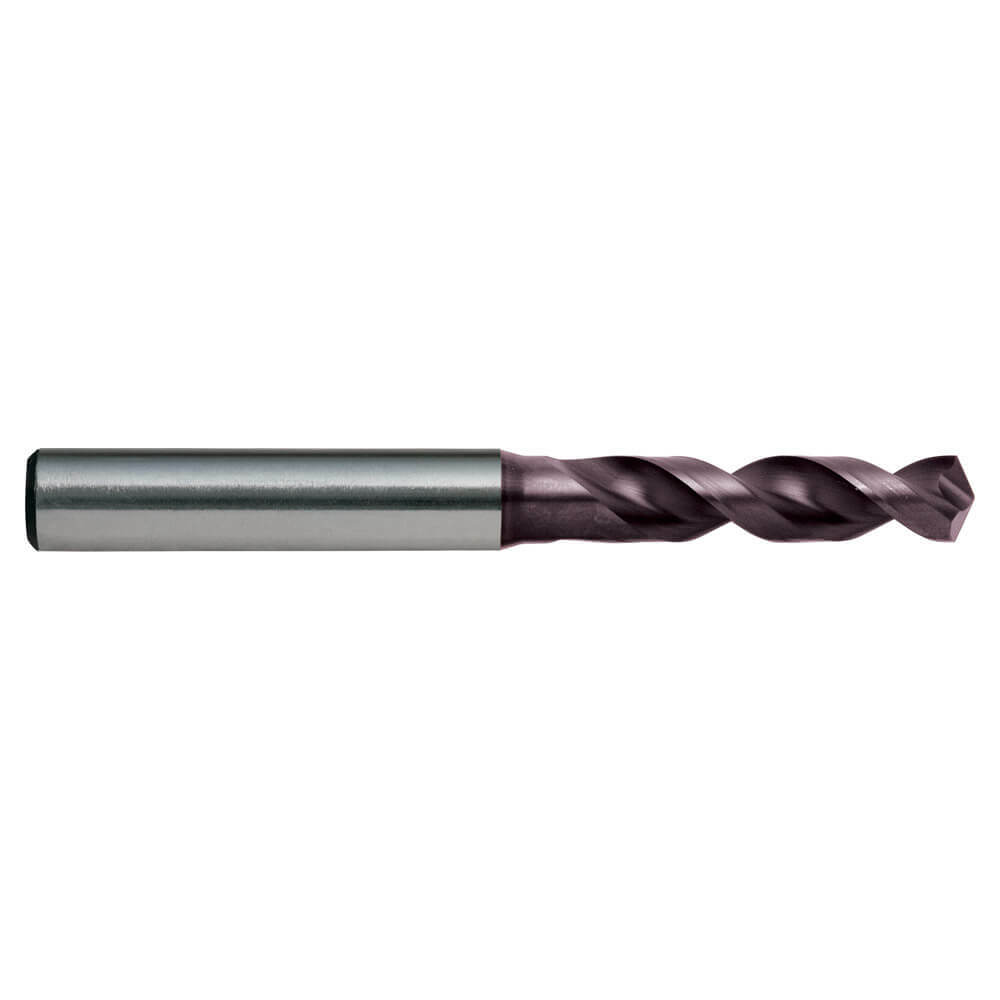

The Sutton D155 Stub Drill Bit by Sutton Tools is a Stub Drill Bit with TiAlN finish. It provides 1.1 mm d1 and is suitable for production drilling.

Resources

  • SPM offers superior performance
  • TiAlN for longer tool life

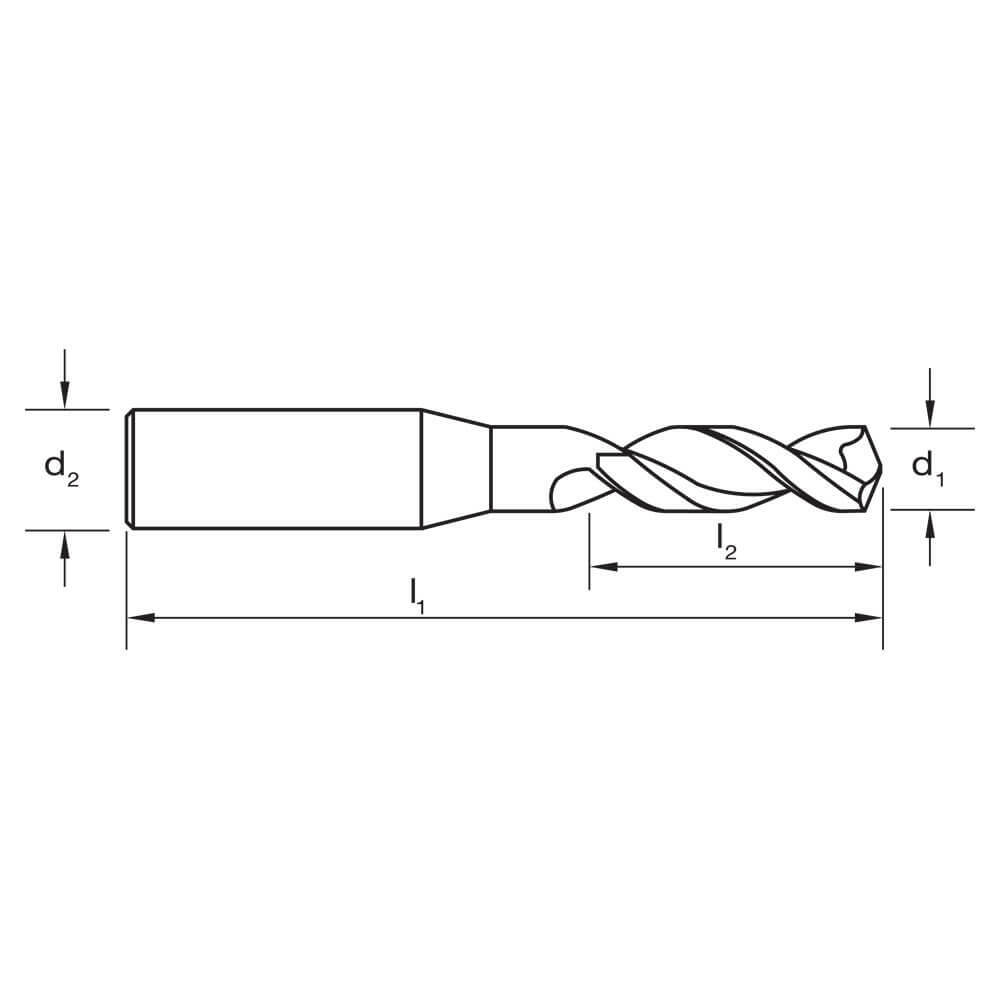

  • d1 (mm): 1
  • d2 (mm): 3
  • l1 (mm): 38
  • l2 (mm): 6
  • Pack Quantity: 1
  • Designation: UNI
  • Material: SPM
  • Finish: TiAIN
  • Maximum Cut Depth: 3XD
  • Shank Form: A
  • Helix Angle: R40
  • X: als
  • Point Tolerance: h8
  • Shank Tolerance: h7
  • Point Type: 130° 4 Facet Form B
  • Cutting Edges: ul
  • Standard: DIN 1897
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
  • Optimal for Stainless Steel – Precipitation Hardening- 250 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
  • Optimal for Cast Iron, Nodular (GGG) – Ferritic- 160 HB
  • Optimal for Cast Iron, Pearlitic (GGG) – Ferritic- 250 HB
  • Optimal for Cast Iron, Malleable – Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable- 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable- 90 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)- 90 HB
  • Optimal for Cast Iron – Chilled- 400 HB

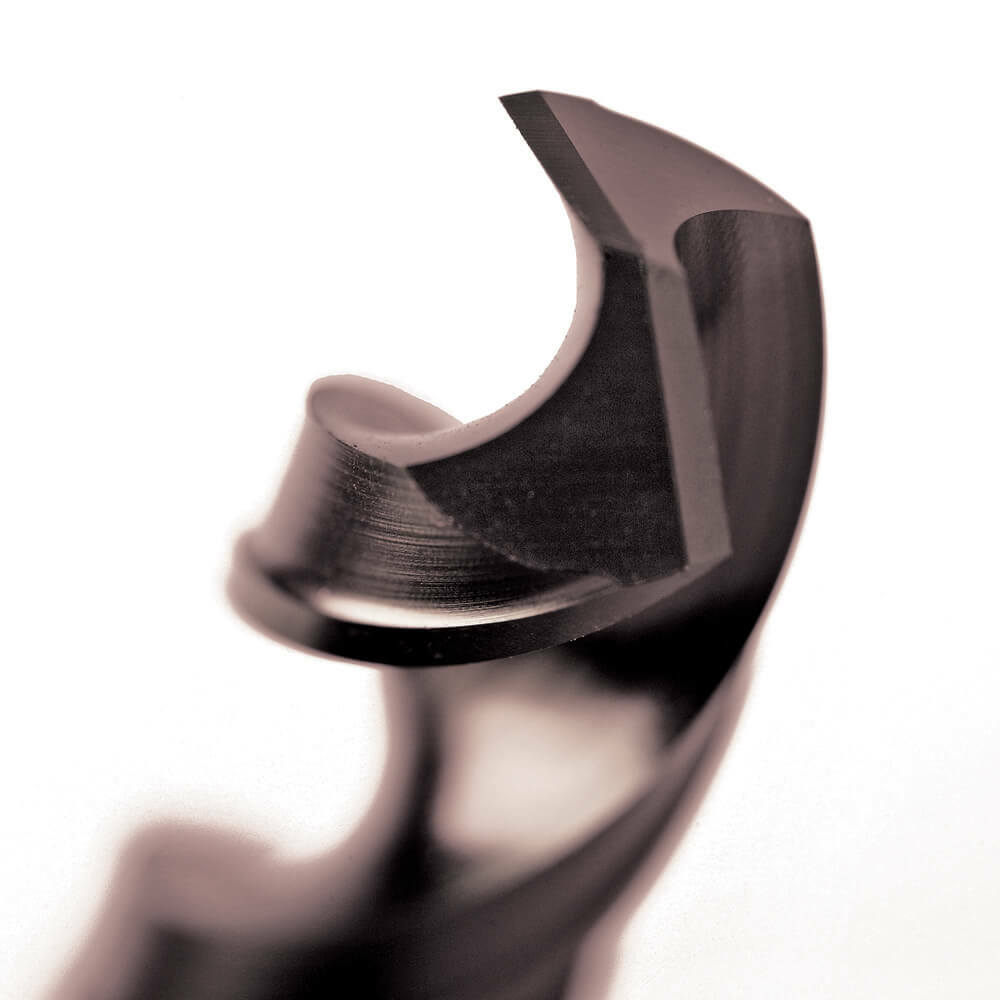

  • Point geometry ensures high strength & short chips
  • Endmill shank for greater accuracy
  • Suitable for materials up to 1500N/mm2
  • Suitable for production drilling as an alternative to carbide drills
Payment & Security
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Customer Service

Mon - Fri: 8am to 5pm (Eastern)

Call Us

(02) 9773-0122

Email Us

sales@aimsindustrial.com.au

Home Cart Products
