Description
Description
Designed to increase the drilling capacity of drill chucks and for slow speed (350 RPM or less), large scale boring
Specifications
Specifications
- Diameter (in): 5/8, 3/4, 7/8, 1
- Pack Quantity: 4
- Designation: N
- Material: High Speed Steel
- Finish: Blue
- Maximum Cut Depth: 5XD
- Shank Form: A
- Helix Angle: R30
- X: als
- Point Tolerance: h8
- Point Angle: 118°
- Point Form: Form A
- Cutting Edges: ul
- Standard: Sutton
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
Features & Benefits
Features & Benefits
- Common Length 6" (152mm) overall length with a 3-3/8" (86mm) flute length
- Reduced shanks suit 13mm drill chucks
- 118° standard point for general purpose applications
- Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
- Blue surface finish for ferrous applications
- The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

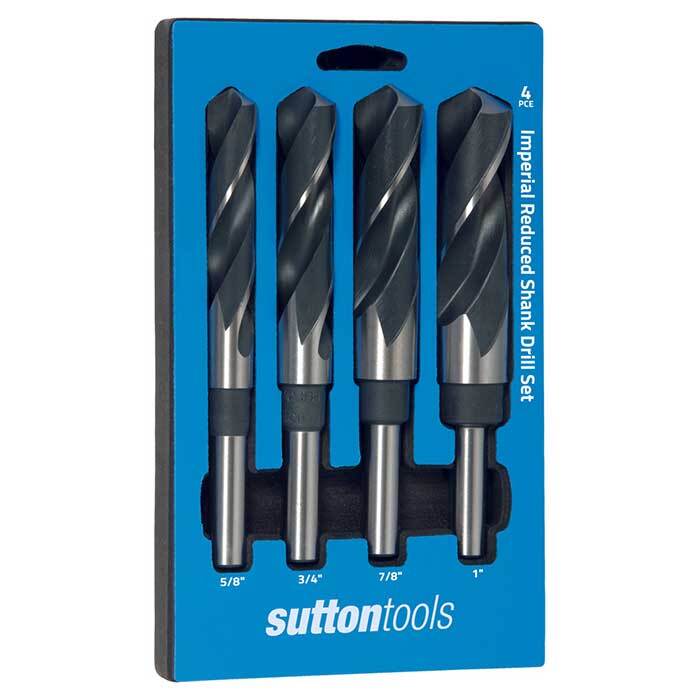

Sutton D188RS4 Reduced Shank Drill Set 4 piece - 1/2" Shank - HSS
Sutton D188RS4 Reduced Shank Drill Set 4 piece - 1/2" Shank - HSS
SKU: A0006668
Type: Reduced Shank Drill Set
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton D188RS4 Reduced Shank Drill Set features four high-speed steel bits. Each bit measures 6" (152mm) in length with a 3-3/8" (86mm) flute length. Designed for slow speed, large scale boring, they offer strength, heat and wear resistance.
