Description
Description
Designed to increase the drilling capacity of drill chucks and for slow speed (350 RPM or less), large scale boring
Specifications
Specifications
- Diameter (in): 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1
- Pack Quantity: 8
- Designation: N
- Material: High Speed Steel
- Finish: Blue
- Maximum Cut Depth: 5XD
- Shank Form: A
- Helix Angle: R30
- X: als
- Point Tolerance: h8
- Point Angle: 118°
- Point Form: Form A
- Cutting Edges: ul
- Standard: Sutton
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
Features & Benefits
Features & Benefits
- Common Length 6" (152mm) overall length with a 3-3/8" (86mm) flute length
- Reduced shanks suit 13mm drill chucks
- 118° standard point for general purpose applications
- Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
- Blue surface finish for ferrous applications
- The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

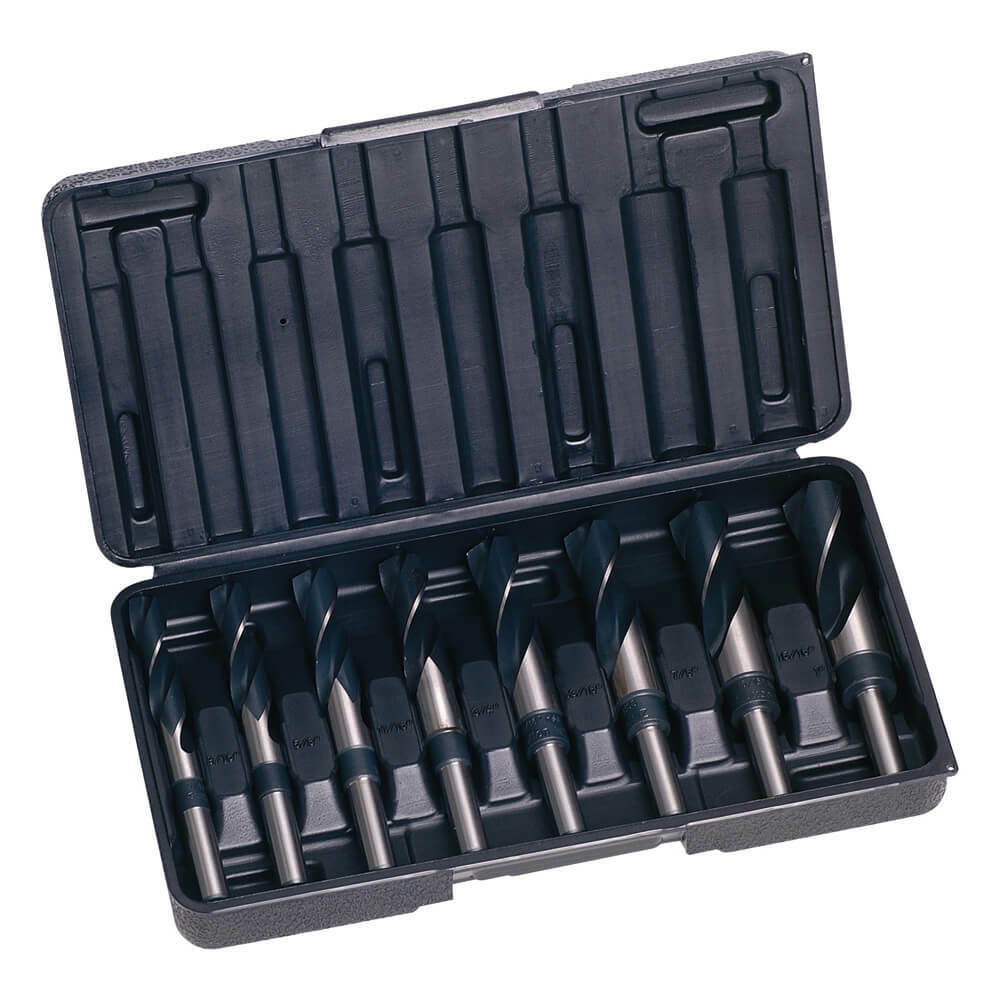

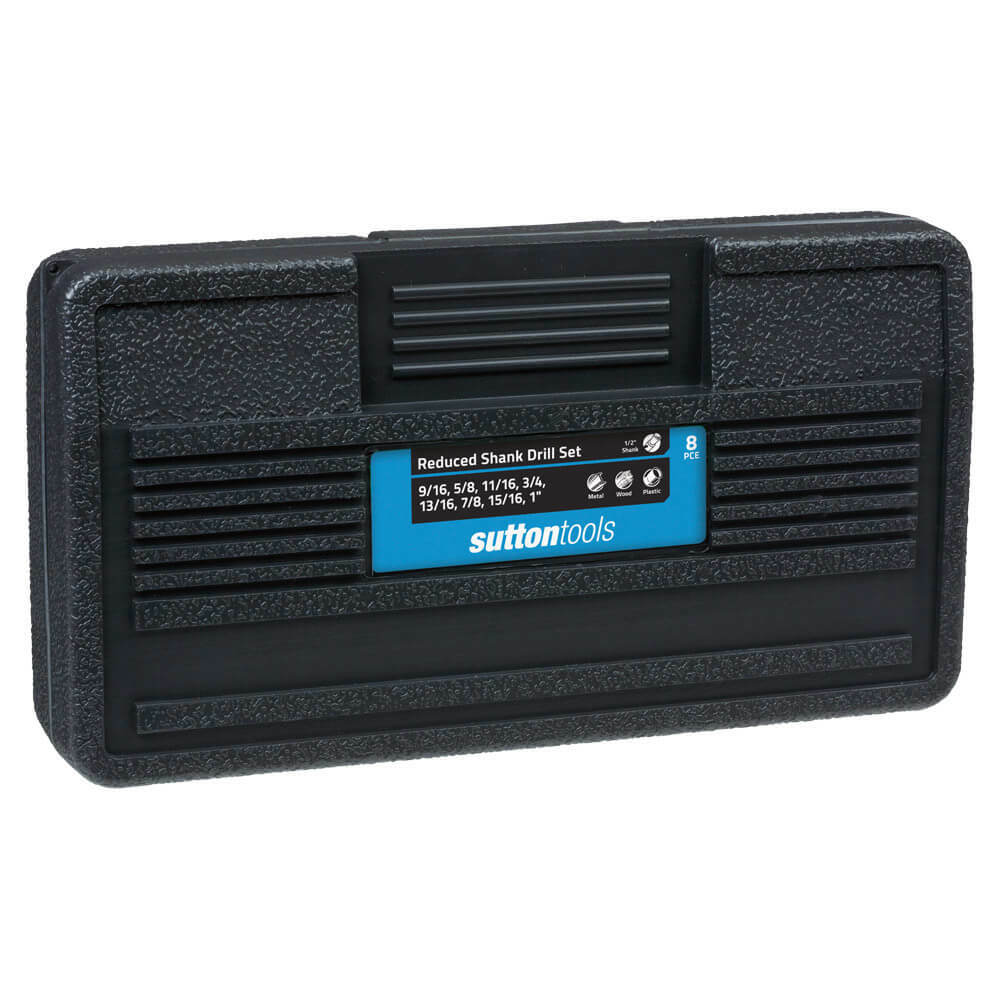

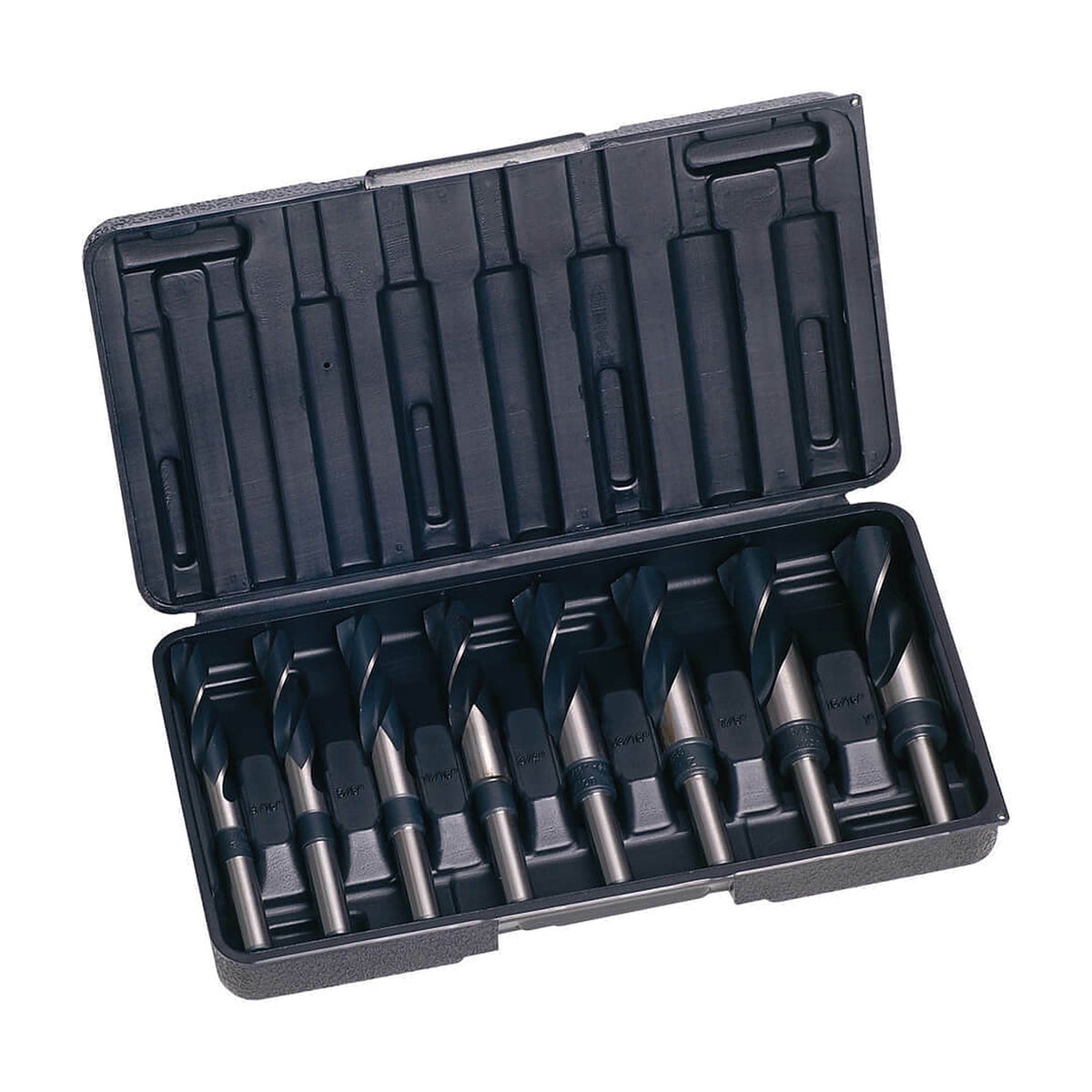

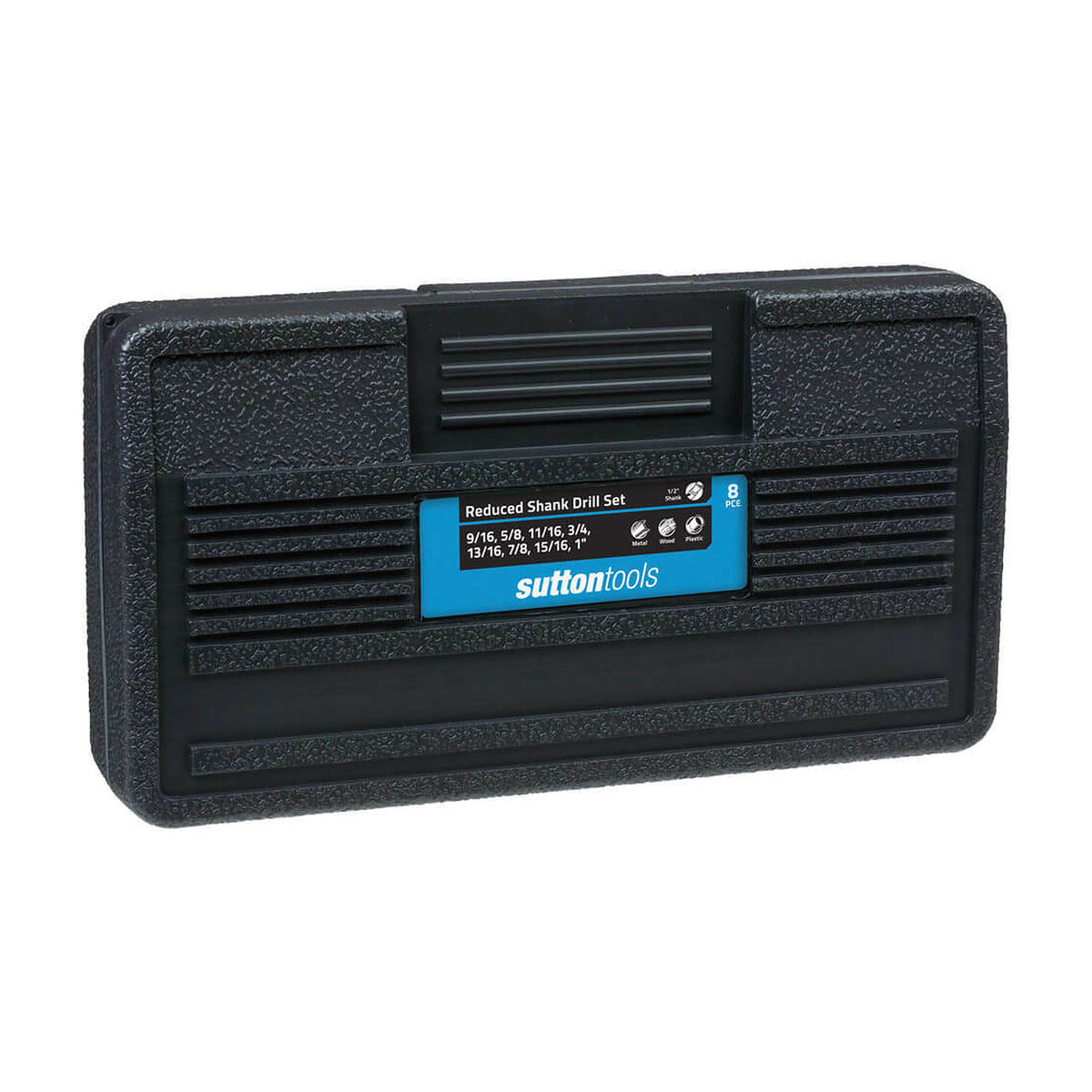

Sutton D188S8R Reduced Shank Drill Set 8 piece - 1/2" Shank - HSS
Sutton D188S8R Reduced Shank Drill Set 8 piece - 1/2" Shank - HSS
SKU: A0006670
Type: Reduced Shank Drill Set
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton D188S8R Reduced Shank Drill Set increases the drilling capacity of chucks. Crafted from M2 High Speed Steel, it resists heat and wear. The set comprises 8 pieces with diameters from 9/16 to 1 inch.
