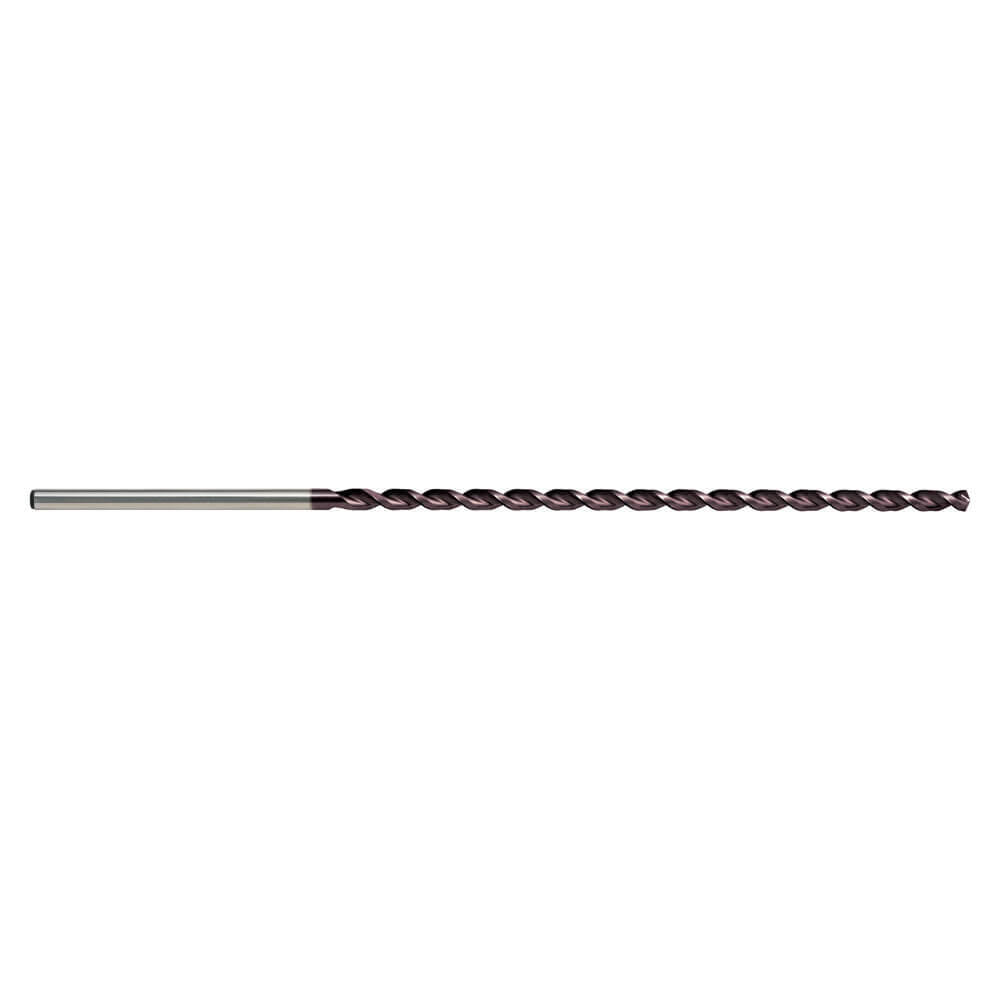

Sutton D194 Extra Long Drill Bit - DIN1869-1 - Cobalt Steel TiAlN

Sutton D194 Extra Long Drill Bit - DIN1869-1 - Cobalt Steel TiAlN

SKU: A0006895

Type: Drill Bit

$57.51
$57.51 $82.16
Inc. GST
🔧Cobalt HSS Construction
⚙Sutton Extra Long Drill
📐Multiple Sizes Available
🔩Accurate Drilling Performance
🏗Metalworking & Manufacturing
☑High Speed Operation Rated

Available

Product Highlights −
  • High performance drill
  • Suitable for materials up to 1200N/mm2

Resources

  • d1 (mm): 2
  • l1 (mm): 125
  • l2 (mm): 85
  • Pack Quantity: 1
  • Designation: NH
  • Material: High Speed Steel Cobalt
  • Finish: TiAIN
  • Maximum Cut Depth: 10XD
  • Shank Form: A
  • Helix Angle: R40
  • X: als
  • Point Tolerance: h8
  • Shank Tolerance: h9
  • Point Angle: 130°
  • Point Form: Form B
  • Cutting Edges: ul
  • Standard: DIN 1869-1

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
  • Optimal for Cast Iron, Nodular (GGG) – Ferritic- 160 HB
  • Optimal for Cast Iron, Pearlitic (GGG) – Ferritic- 250 HB
  • Optimal for Cast Iron, Malleable – Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable- 90 HB
  • Optimal for Aluminum & Magnesium, cast alloy >12% Si - Heat Treatable- 130 HB
  • Optimal for Cast Iron – Chilled- 400 HB
  • Extra Long Drill DHXL-1

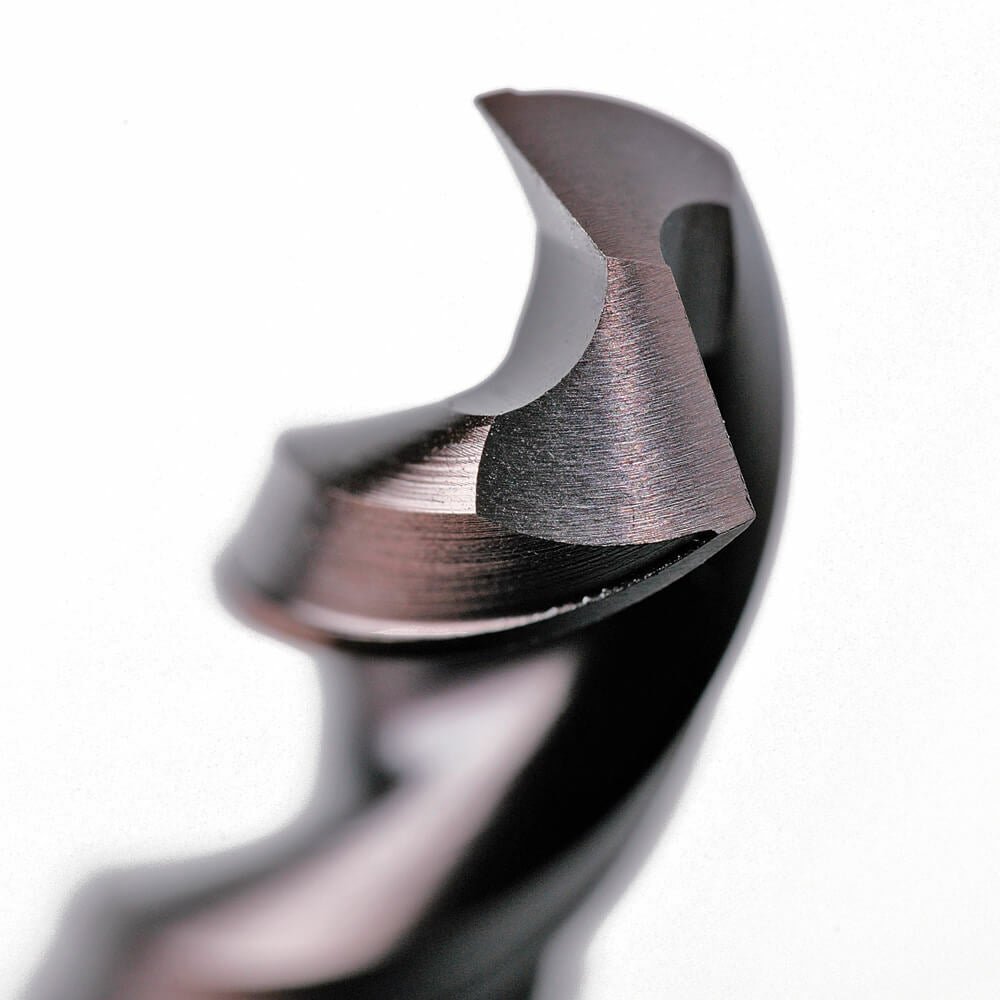

  • Point geometry ensures high strength
  • Parabolic flute design for optimal chip transportation
  • Less pecking required over standard drills
  • TiAlN for longer tool life
