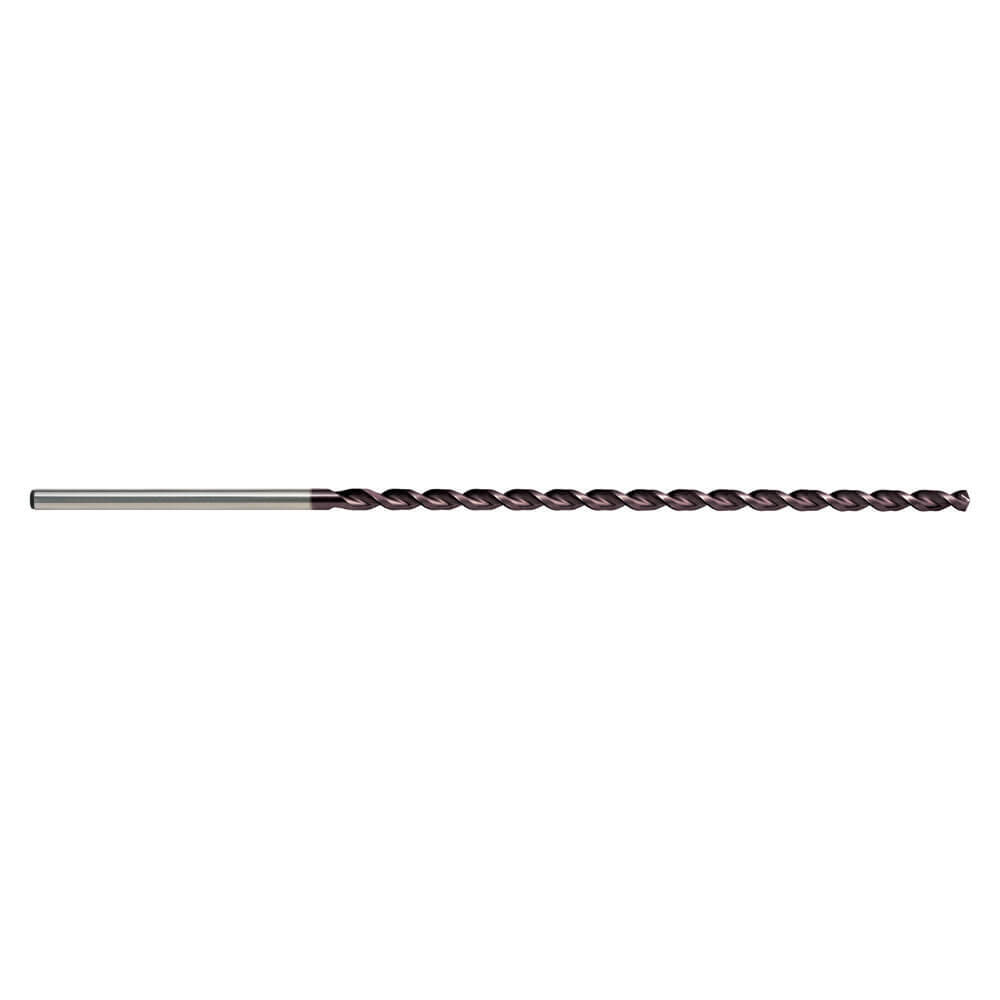

Sutton D1950950 9.5mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D1951000 10mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D195 Extra Long Drill Bit - DIN1869-2 - Cobalt Steel TiAlN1
Sutton D195 Extra Long Drill Bit - DIN1869-2 - Cobalt Steel TiAlN2
Sutton D1950300 3mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D1950350 3.5mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D1950400 4mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D1950450 4.5mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D1950500 5mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D1950550 5.5mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D1950600 6mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D1950650 6.5mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D1950700 7mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D1950750 7.5mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D1950800 8mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D1950850 8.5mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D1950900 9mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D1950950 9.5mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN
Sutton D1951000 10mm Extra Long Drill Bit - DIN1869-2 - HSS Cobalt TiAlN

Sutton D195 Extra Long Drill Bit - DIN1869-2 - Cobalt Steel TiAlN

Sutton D195 Extra Long Drill Bit - DIN1869-2 - Cobalt Steel TiAlN

SKU: A0006911

Type: Extra Long Drill Bit

$88.53
$88.53
Inc. GST
Buy It Now

Available

The Sutton D195 Extra Long Drill Bit by Sutton Tools is an Extra Long Drill Bit made of Cobalt Steel. It provides d1 (mm): 10 and is suitable for Cast Iron – Chilled.

Resources

  • High performance drill
  • Suitable for materials up to 1200N/mm2

Features

  • Extra Long Drill DHXL-2

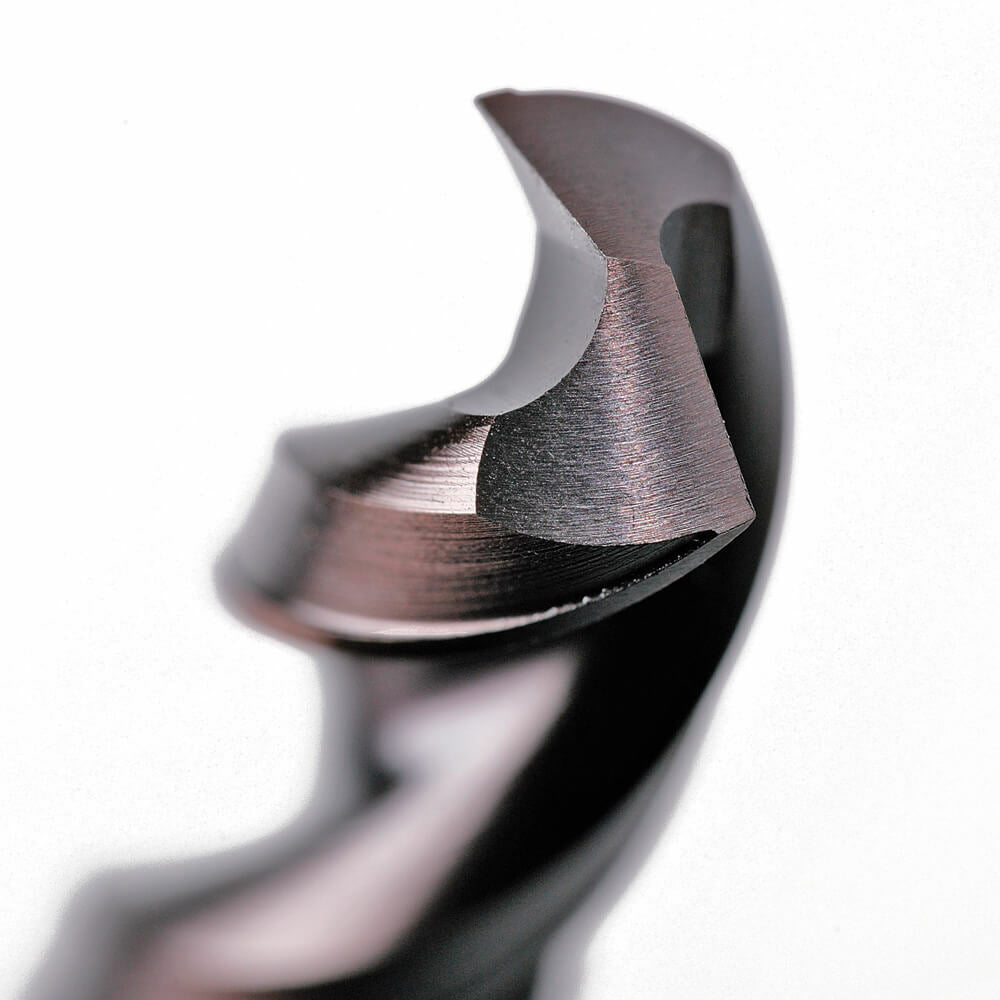

  • Point geometry ensures high strength
  • Parabolic flute design for optimal chip transportation
  • Less pecking required over standard drills
  • TiAlN for longer tool life

  • Designation: NH
  • Material: High Speed Steel Cobalt
  • Finish: TiAIN
  • Maximum Cut Depth: 12XD
  • Shank Form: A
  • Helix Angle: R40
  • X: als
  • Point Tolerance: h8
  • Shank Tolerance: h9
  • Point Angle: 130°
  • Point Form: Form B
  • Cutting Edges: ul
  • Standard: DIN 1869-2

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
  • Optimal for Cast Iron, Nodular (GGG) – Ferritic- 160 HB
  • Optimal for Cast Iron, Pearlitic (GGG) – Ferritic- 250 HB
  • Optimal for Cast Iron, Malleable – Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable- 90 HB
  • Optimal for Aluminum & Magnesium, cast alloy >12% Si - Heat Treatable- 130 HB
  • Optimal for Cast Iron – Chilled- 400 HB

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
  • Optimal for Cast Iron, Nodular (GGG) – Ferritic- 160 HB
  • Optimal for Cast Iron, Pearlitic (GGG) – Ferritic- 250 HB
  • Optimal for Cast Iron, Malleable – Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable- 90 HB
  • Optimal for Aluminum & Magnesium, cast alloy >12% Si - Heat Treatable- 130 HB
  • Optimal for Cast Iron – Chilled- 400 HB
  • Extra Long Drill DHXL-2
  • Point geometry ensures high strength
  • Parabolic flute design for optimal chip transportation
  • Less pecking required over standard drills
  • TiAlN for longer tool life
