Description
Description
Descriptions
- For precision milling of slots & cavities
- For soft steels & non-ferrous material
Specifications
Specifications
Specifications
- Designation: N
- Material: High Speed Steel Cobalt-8
- Finish: Bright
- Shank Form: A
- Helix Angle: R30
- Point Tolerance: e8
- Shank Tolerance: h6
- Point Form: Square End
- Type: N (finishing)
- Standard: JIS
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
Features & Benefits
Features & Benefits
Features
- 2 Flute Slot Drill R30 N
- Suitable for materials up to 1000 N/mm2
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton E100 Imperial Slot Drill 2 Flute - 8% Cobalt Steel - Regular
Sutton E100 Imperial Slot Drill 2 Flute - 8% Cobalt Steel - Regular
SKU: A0008456
- Wide Range
- Reliable Services
- Proven Trust
Available

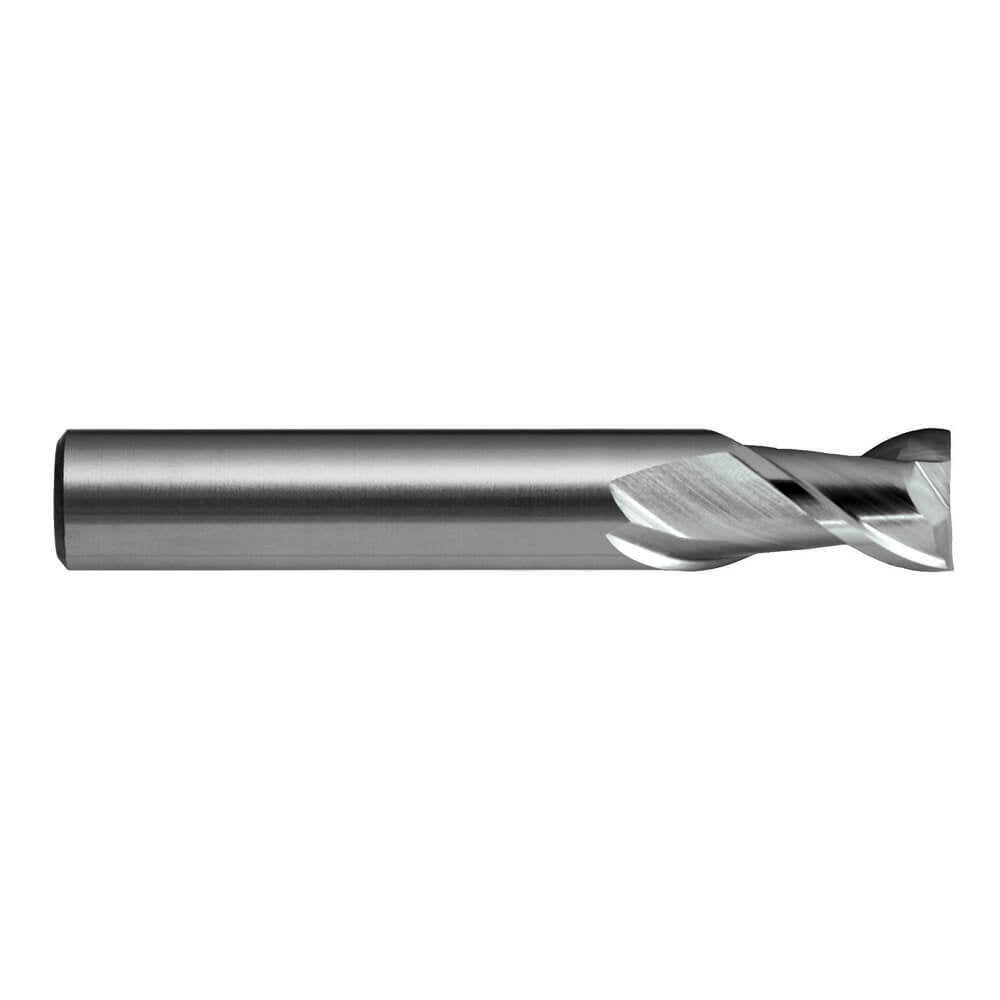

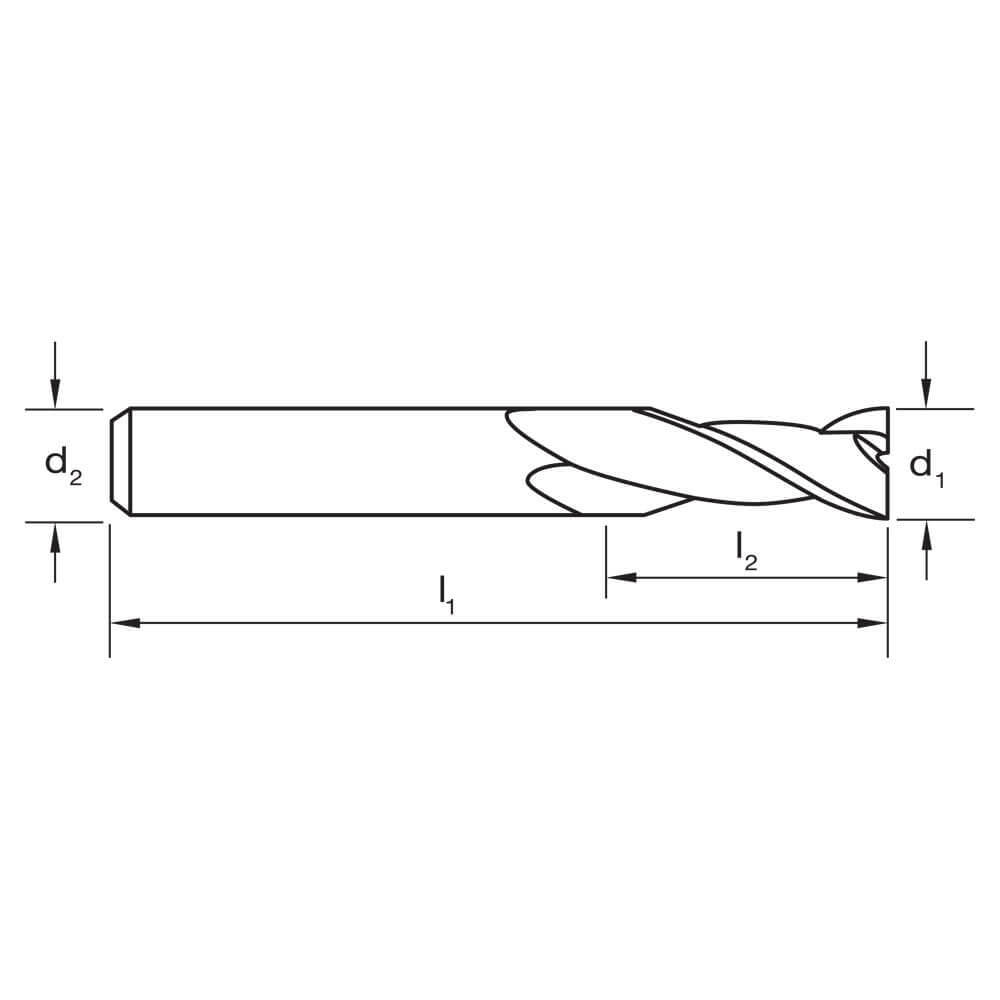

The Sutton E100 Imperial Slot Drill features a 2-flute design and is made from 8% cobalt steel. With dimensions of d1: 1/16 in, d2: 1/4 in, l1: 1-31/32 in, and l2: 1/8 in, it's suitable for milling slots and cavities in materials up to 1000 N/mm2. It works optimally with soft steels and non-ferrous materials.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Descriptions
- For precision milling of slots & cavities
- For soft steels & non-ferrous material
Specifications
Specifications
Specifications
- Designation: N
- Material: High Speed Steel Cobalt-8
- Finish: Bright
- Shank Form: A
- Helix Angle: R30
- Point Tolerance: e8
- Shank Tolerance: h6
- Point Form: Square End
- Type: N (finishing)
- Standard: JIS
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
Features & Benefits
Features & Benefits
Features
- 2 Flute Slot Drill R30 N
- Suitable for materials up to 1000 N/mm2
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton E100 Imperial Slot Drill 2 Flute - 8% Cobalt Steel - Regular
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton E100 Imperial Slot Drill features a 2-flute design and is made from 8% cobalt steel. With dimensions of d1: 1/16 in, d2: 1/4 in, l1: 1-31/32 in, and l2: 1/8 in, it's suitable for milling slots and cavities in materials up to 1000 N/mm2. It works optimally with soft steels and non-ferrous materials. |
Regular price
From $39.30
Sale price
From $39.30
Regular price
Unit price
/per
| Sutton Tools |
Overall Length (inch)
65,1 31/32,2 3/8,2 9/16,2 3/4,3 17/32,3 3/4,4 5/16,4 23/32
Cutting Tip (inch)
1/4,1/16,3/32,1/8,3/16,5/16,3/8,1/2,5/8,3/4,1
|
Choose your option
Sutton E100 Imperial Slot Drill 2 Flute - 8% Cobalt Steel - Regular
Sutton E100 Imperial Slot Drill 2 Flute - 8% Cobalt Steel - Regular
SKU: A0008456
Available
The Sutton E100 Imperial Slot Drill features a 2-flute design and is made from 8% cobalt steel. With dimensions of d1: 1/16 in, d2: 1/4 in, l1: 1-31/32 in, and l2: 1/8 in, it's suitable for milling slots and cavities in materials up to 1000 N/mm2. It works optimally with soft steels and non-ferrous materials.
