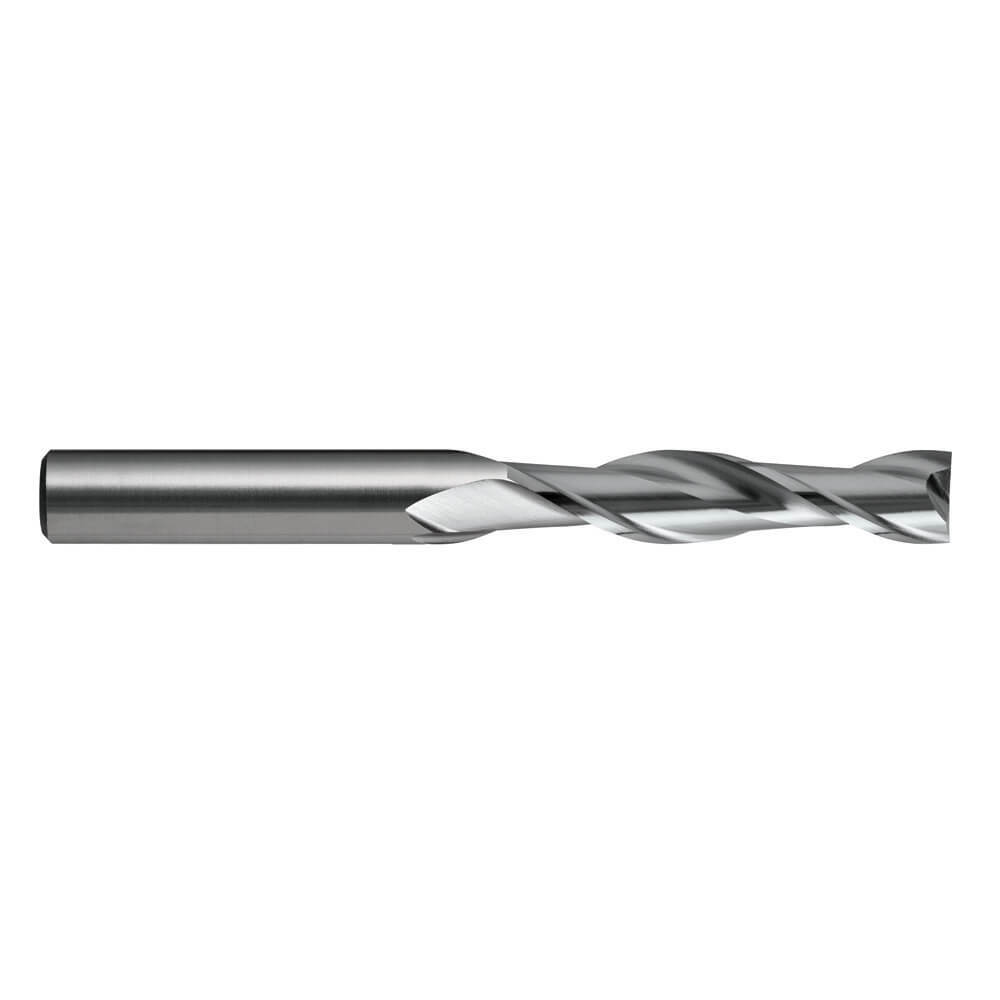

Sutton E1020500 5mm x 8mm Slot Drill 2 Flute - 8% Cobalt Steel - Long

Sutton E1020600 6mm x 8mm Slot Drill 2 Flute - 8% Cobalt Steel - Long

Sutton E1020800 8mm x 10mm Slot Drill 2 Flute - 8% Cobalt Steel - Long

Sutton E1020900 9mm x 10mm Slot Drill 2 Flute - 8% Cobalt Steel - Long

Sutton E1021000 10mm x 10mm Slot Drill 2 Flute - 8% Cobalt Steel - Long

Sutton E1021100 11mm x 12mm Slot Drill 2 Flute - 8% Cobalt Steel - Long

Sutton E1021200 12mm x 12mm Slot Drill 2 Flute - 8% Cobalt Steel - Long

Sutton E1021400 14mm x 16mm Slot Drill 2 Flute - 8% Cobalt Steel - Long

Sutton E1021600 16mm x 16mm Slot Drill 2 Flute - 8% Cobalt Steel - Long

Sutton E1021800 18mm x 20mm Slot Drill 2 Flute - 8% Cobalt Steel - Long

Sutton E1022000 20mm x 20mm Slot Drill 2 Flute - 8% Cobalt Steel - Long

Sutton E1022500 25mm x 25mm Slot Drill 2 Flute - 8% Cobalt Steel - Long

Description +

Descriptions

For long-reach slotting applications
For soft steels & non-ferrous material

Specifications +

Specifications

Designation: N
Material: High Speed Steel Cobalt-8
Finish: Bright
Shank Form: A
Helix Angle: R30
Point Tolerance: e8
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Standard: JIS

Application +

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable ‚Äì 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable ‚Äì 100 HB

Features & Benefits +

Features

2 Flute Slot Drill R30 N
Suitable for materials up to 1000 N/mm2

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E102 Metric Slot Drill 2 Flute - 8% Cobalt Steel - Long

SKU: A0008523

$55.59

Inc. GST

Buy It Now

Available

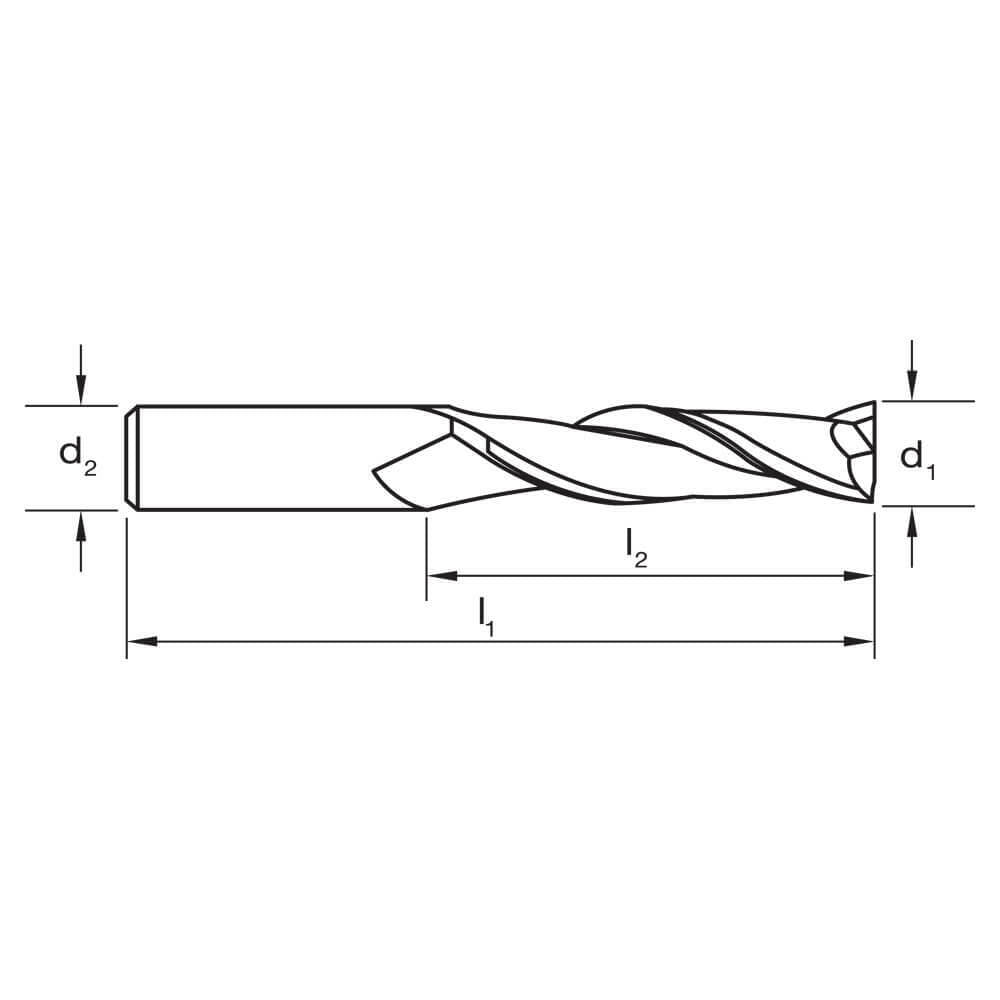

The Sutton E102 Metric Slot Drill, crafted from 8% cobalt steel, is designed for long-reach slotting. With a 2-flute design, it can handle materials up to 1000 N/mm2. Its dimensions of 10mm (d1 and d2), 95mm (l1), and 45mm (l2) make it suitable for soft steels and non-ferrous materials.
