Description
Description
Features
- 2 Flute Slot Drill R30 N
- Suitable for materials up to 850 N/mm2
- For soft steels & non-ferrous material
Specifications
Specifications

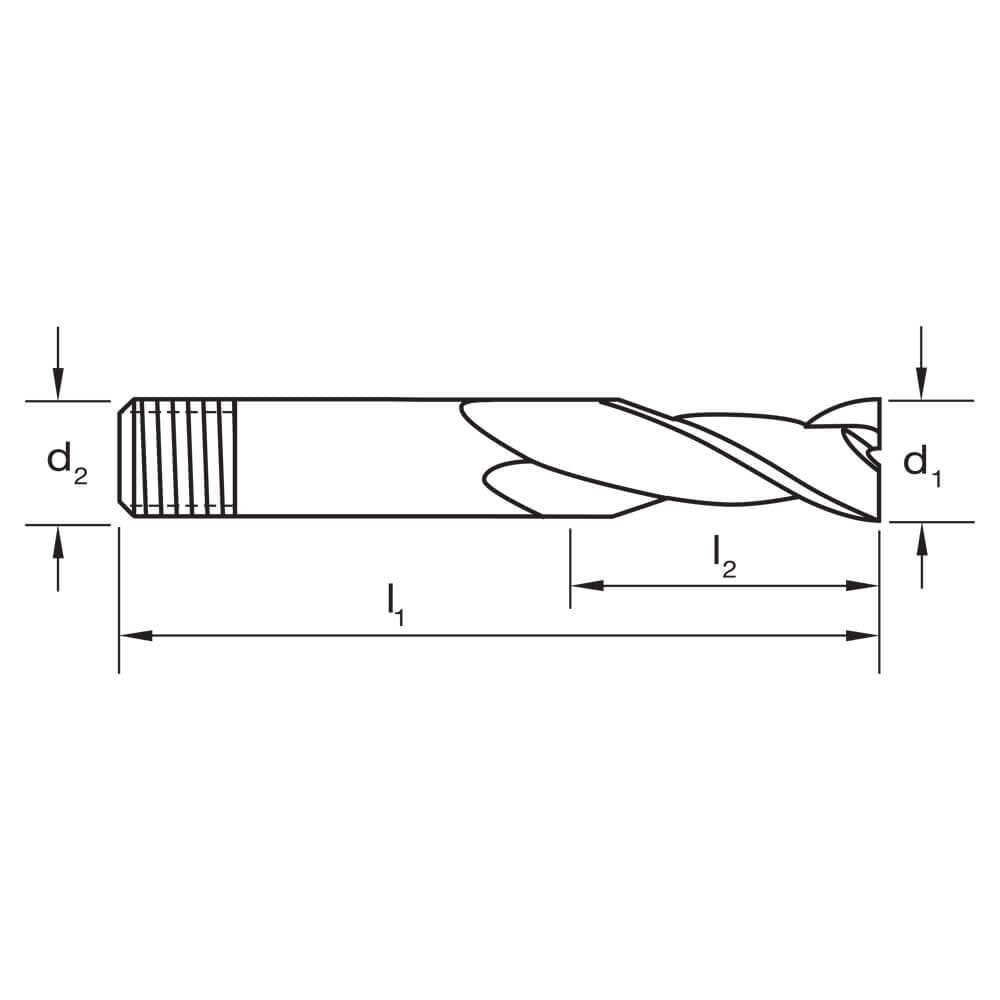

Dimensions
- D1: 6
- L1: 56.5
- L2: 11
- D2: 6
- Z: 2
Specifications
- Designation: N
- Material: HSS Co
- Finish: Brt
- Shank Form: D
- Helix Angle: R30
- Point Tolerance: h9
- Shank Tolerance: -0.025
- Point Form: Square End
- Type: N (finishing)
- Standard: Sutton
Applications
Applications
Applications
- ISO: H
- VDI: 41
- Description: Cast Iron
- Condition: Hardened and Tempered
- Hardness: 55HRC
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

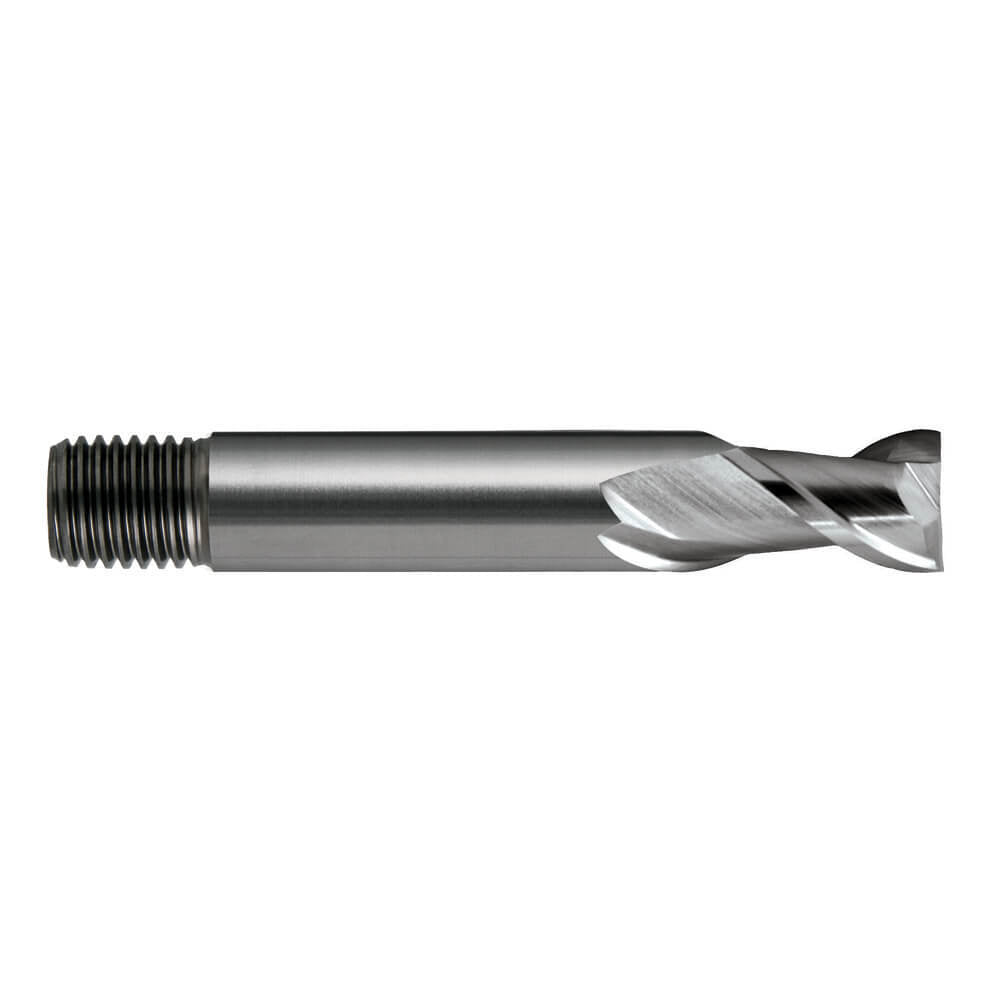

Sutton E1040600 6mm x 6mm Slot Drill 2 Flute - Cobalt Steel - Regular
Sutton E1040600 6mm x 6mm Slot Drill 2 Flute - Cobalt Steel - Regular
SKU: A0008561
- Wide Range
- Reliable Services
- Proven Trust
Available

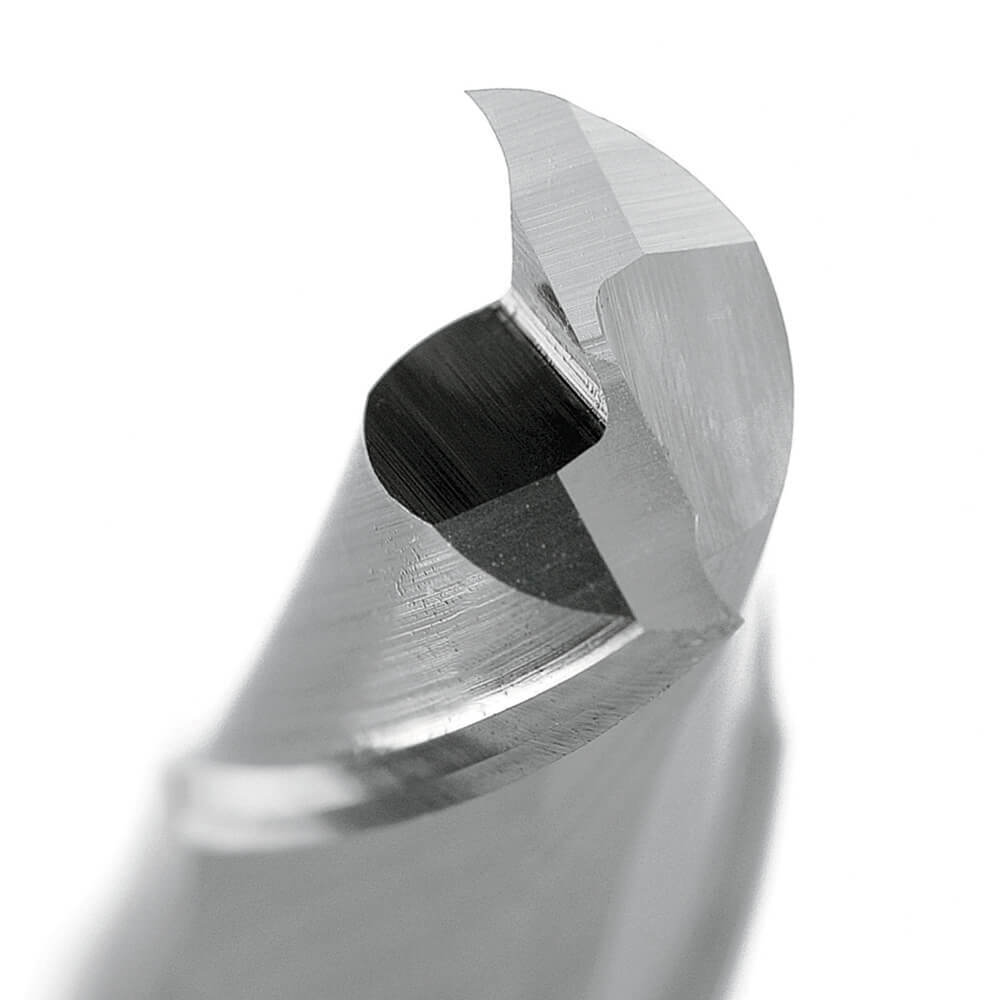

The Sutton E1040600 slot drill, crafted from cobalt steel, features a 6mm x 6mm size with two flutes and a square end. It's designed for materials up to 850 N/mm2, including soft steels and non-ferrous materials.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Features
- 2 Flute Slot Drill R30 N
- Suitable for materials up to 850 N/mm2
- For soft steels & non-ferrous material
Specifications
Specifications
Dimensions
- D1: 6
- L1: 56.5
- L2: 11
- D2: 6
- Z: 2
Specifications
- Designation: N
- Material: HSS Co
- Finish: Brt
- Shank Form: D
- Helix Angle: R30
- Point Tolerance: h9
- Shank Tolerance: -0.025
- Point Form: Square End
- Type: N (finishing)
- Standard: Sutton
Applications
Applications
Applications
- ISO: H
- VDI: 41
- Description: Cast Iron
- Condition: Hardened and Tempered
- Hardness: 55HRC
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton E1040600 6mm x 6mm Slot Drill 2 Flute - Cobalt Steel - Regular
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton E1040600 slot drill, crafted from cobalt steel, features a 6mm x 6mm size with two flutes and a square end. It's designed for materials up to 850 N/mm2, including soft steels and non-ferrous materials. |
Regular price
$38.57
Sale price
$38.57
Regular price
Unit price
/per
| Sutton Tools |
Choose your option
Sutton E1040600 6mm x 6mm Slot Drill 2 Flute - Cobalt Steel - Regular
Sutton E1040600 6mm x 6mm Slot Drill 2 Flute - Cobalt Steel - Regular
SKU: A0008561
Hurry up, only 1 item left in stock.
The Sutton E1040600 slot drill, crafted from cobalt steel, features a 6mm x 6mm size with two flutes and a square end. It's designed for materials up to 850 N/mm2, including soft steels and non-ferrous materials.
