Description +

Descriptions

For general milling of slots & cavities
For soft steels & non-ferrous material

Specifications +

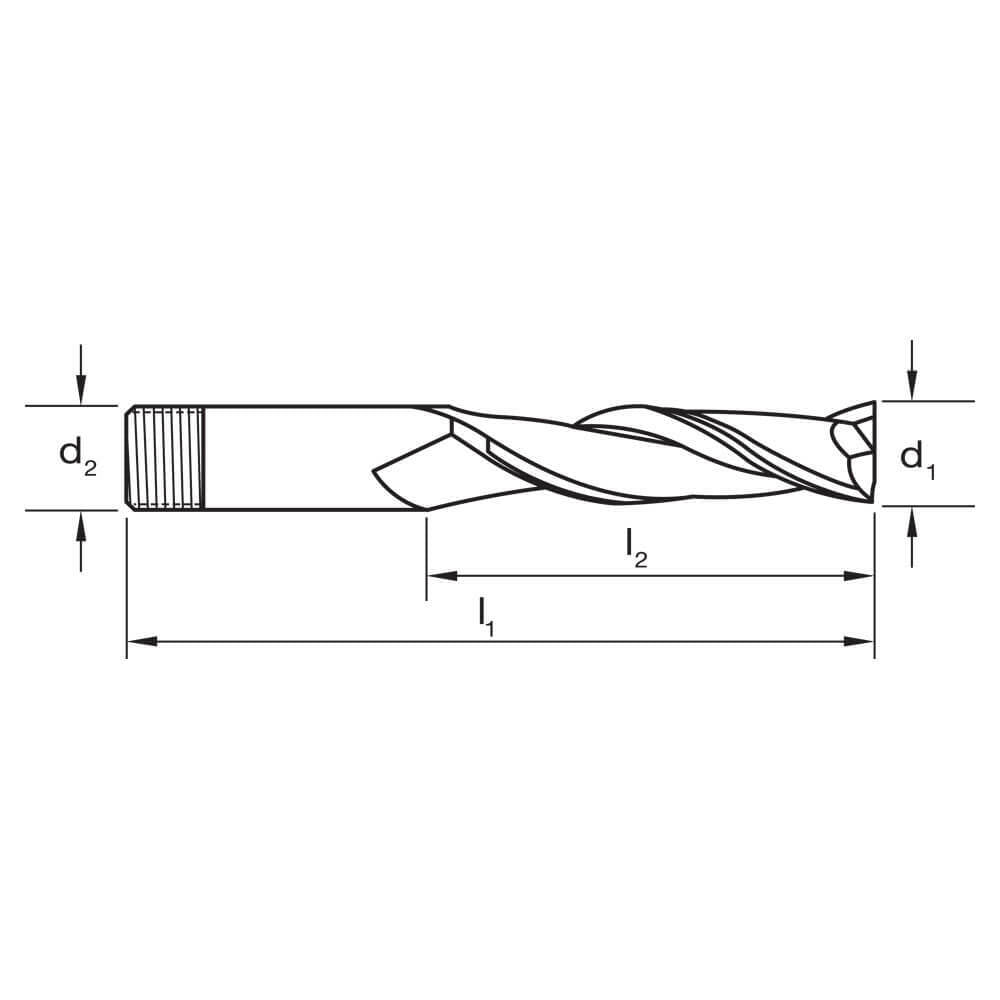

Dimensions

d1 (in): 1/4
d2 (in): 1/4
l1 (in): 3
l2 (in): 5/8
Quantity: 1

Specifications

Designation: N
Material: High Speed Steel Cobalt
Finish: Bright
Shank Form: D
Helix Angle: R30
Point Tolerance: h9
Shank Tolerance: -0.025
Point Form: Square End
Type: N (finishing)
Standard: Sutton

Application +

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB

Features & Benefits +

Features

2 Flute Slot Drill R30 N
Suitable for materials up to 850 N/mm2

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E1060635 1/4" x 1/4" Slot Drill 2 Flute - Cobalt Steel - Long

SKU: A0008634

$46.27

Inc. GST

Buy It Now

Available

The Sutton E1060635 1/4" x 1/4" Slot Drill, made from 2 Flute Cobalt Steel, is suitable for milling slots and cavities in soft steels and non-ferrous materials. With a bright finish and square end point form, it can handle materials up to 850 N/mm2.
