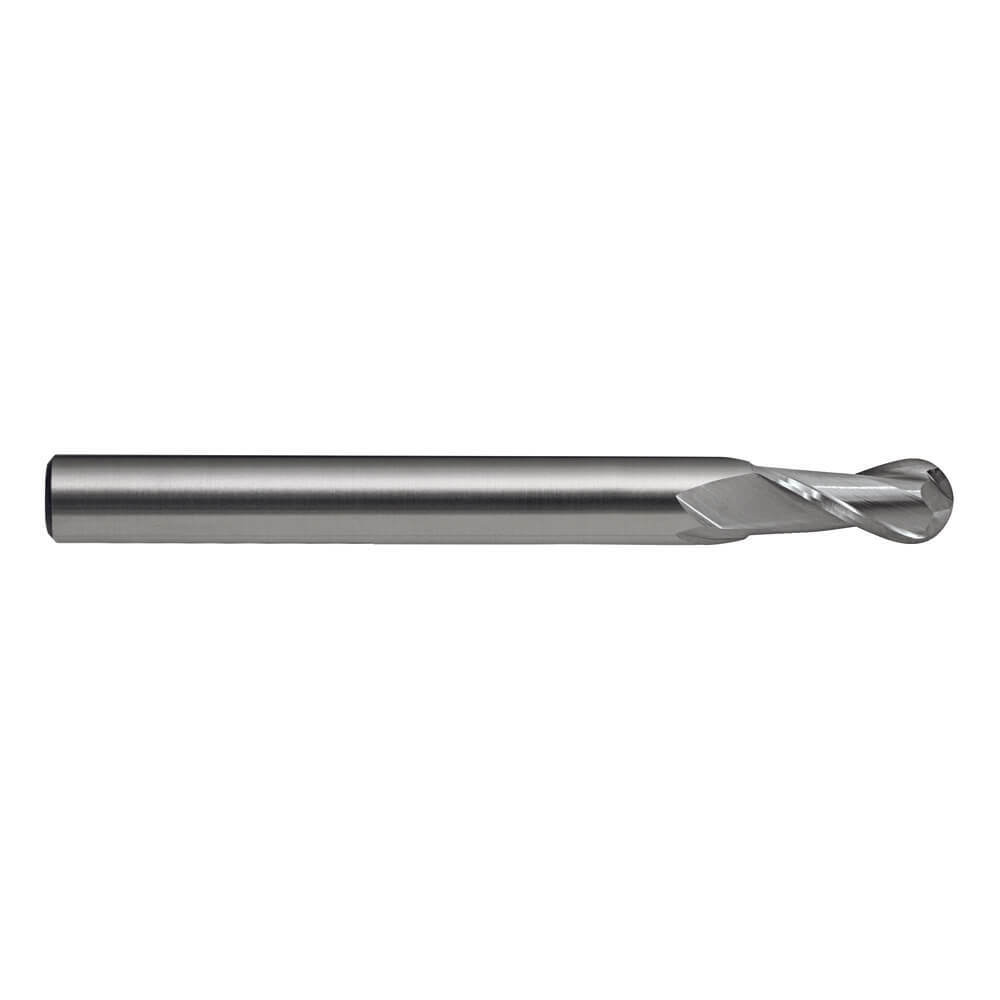

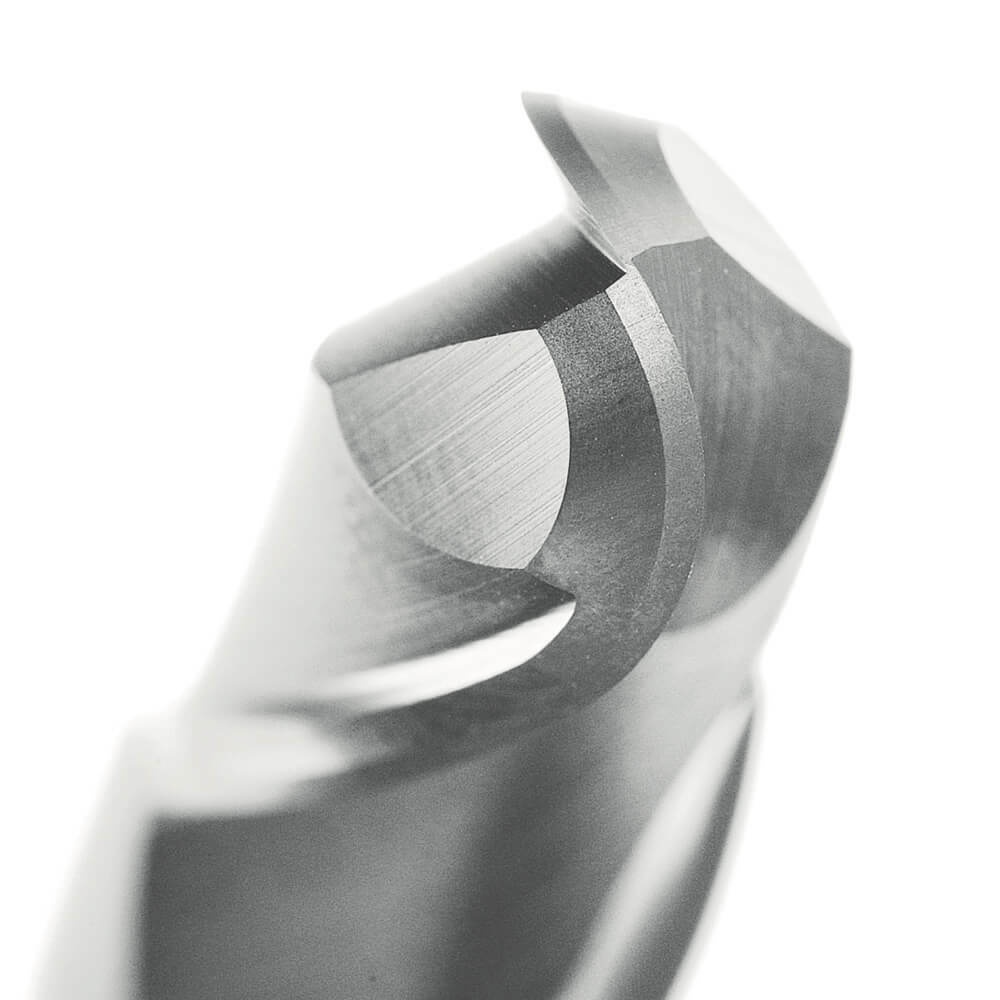

Sutton E113 Metric Ball Nose Slot Drill 2 Flute - 8% Cobalt Steel Long

Sutton E113 Metric Ball Nose Slot Drill 2 Flute - 8% Cobalt Steel Long

SKU: A0008665

$138.71
$138.71
Inc. GST
Buy It Now

Available

The Sutton E113 Metric Ball Nose Slot Drill excels in long-reach profiling and contour milling. Constructed from 8% cobalt steel, it handles materials up to 1000 N/mm2. Its precise dimensions ensure durability.

Resources

Description

  • For long-reach profiling & contour milling applications

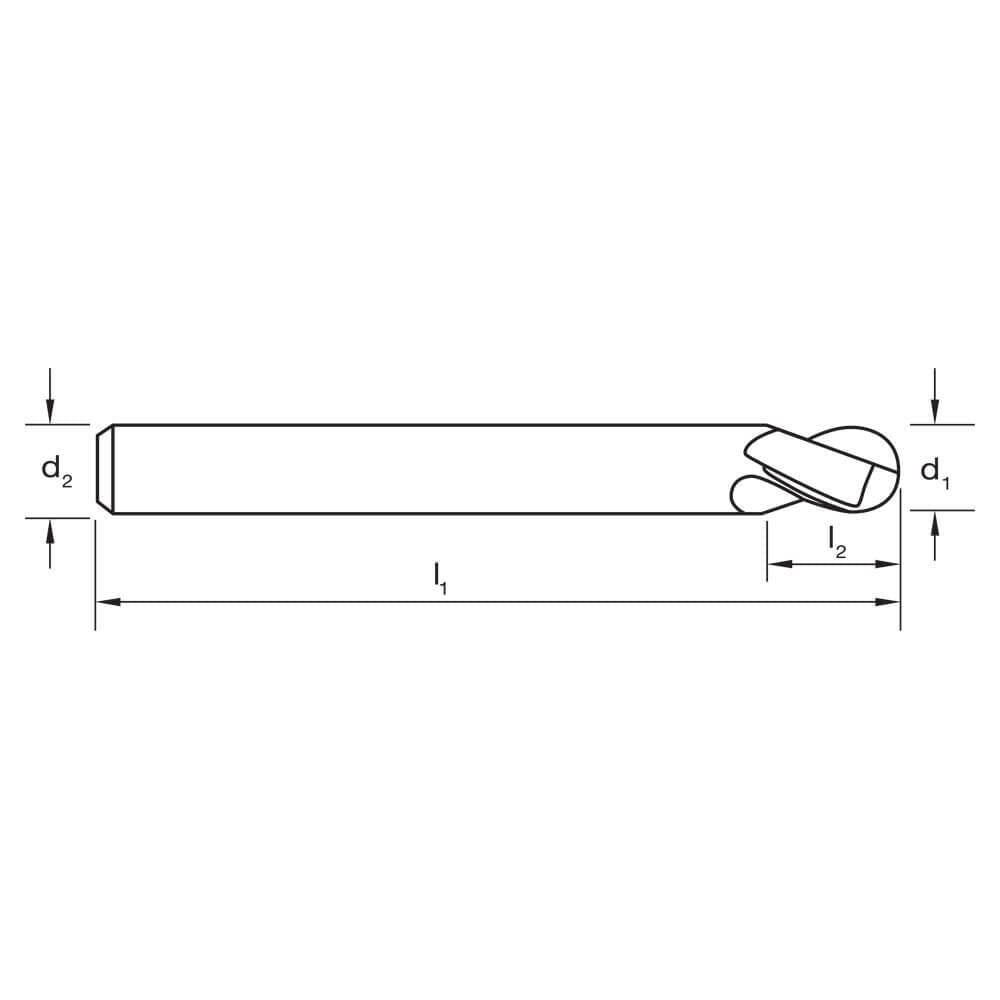

Dimensions

  • d1 (mm): 1.5
  • d2 (mm): 6
  • l1 (mm): 55
  • l2 (mm): 3
  • Quantity: 1

Specifications

  • Designation: N
  • Material: High Speed Steel Cobalt-8
  • Finish: Bright
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: e8
  • Shank Tolerance: h6
  • Point Form: Ballnose
  • Type: N (finishing)
  • Standard: Sutton

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB

Features

  • Ballnose Slot Drill 2 Flute
  • Suitable for materials up to 1000 N/mm2
