Sutton E123 Metric 3 Flute Endmill - HSS Co11% SPM - Long1

Sutton E123 Metric 3 Flute Endmill - HSS Co11% SPM - Long2

Sutton E123 Metric 3 Flute Endmill - HSS Co11% SPM - Long3

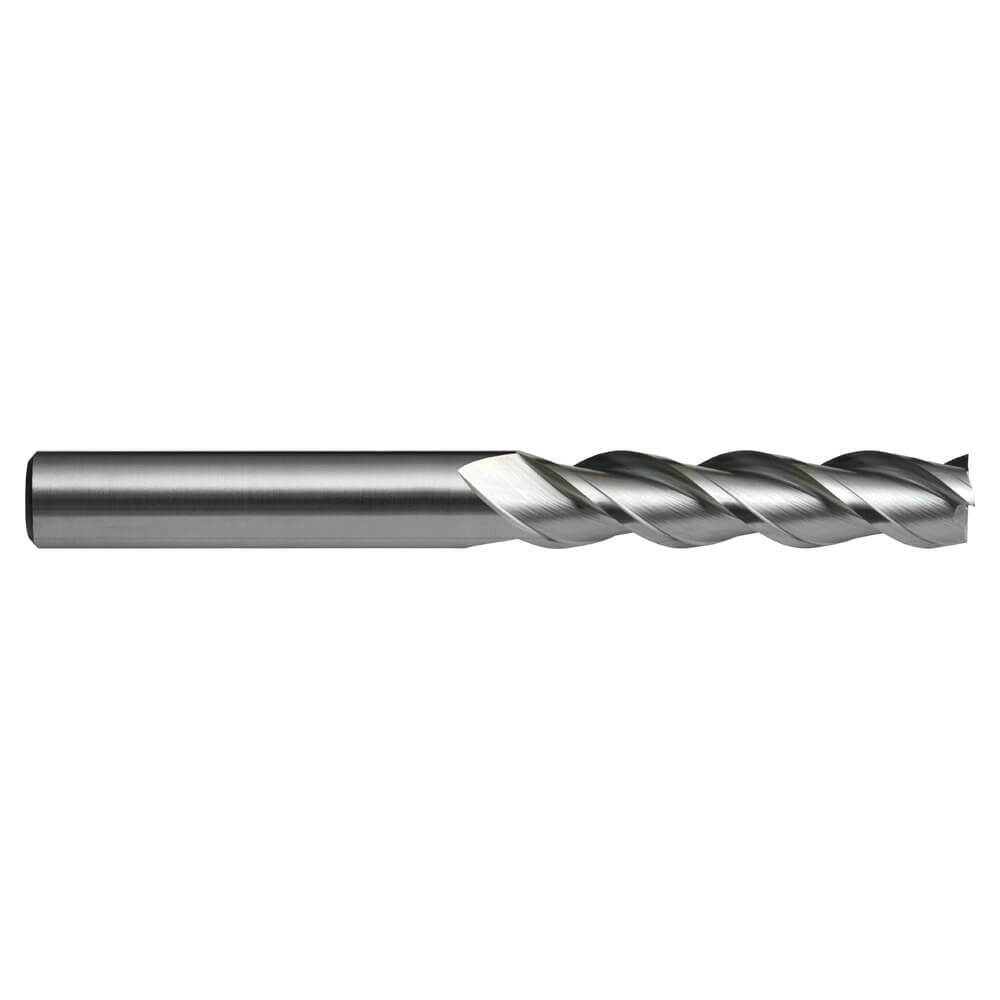

Sutton E1230300 3mm x 6mm 3 Flute Endmill - HSS Co11% SPM - Long

Sutton E1230400 4mm x 6mm 3 Flute Endmill - HSS Co11% SPM - Long

Sutton E1230500 5mm x 6mm 3 Flute Endmill - HSS Co11% SPM - Long

Sutton E1230600 6mm x 6mm 3 Flute Endmill - HSS Co11% SPM - Long

Sutton E1230800 8mm x 10mm 3 Flute Endmill - HSS Co11% SPM - Long

Sutton E1231000 10mm x 10mm 3 Flute Endmill - HSS Co11% SPM - Long

Sutton E1231200 12mm x 12mm 3 Flute Endmill - HSS Co11% SPM - Long

Sutton E1231400 14mm x 12mm 3 Flute Endmill - HSS Co11% SPM - Long

Sutton E1231600 16mm x 16mm 3 Flute Endmill - HSS Co11% SPM - Long

Sutton E1231800 18mm x 16mm 3 Flute Endmill - HSS Co11% SPM - Long

Description +

Descriptions

Universal use for slotting & finishing applications, with one tool
Optimized geometry for soft materials

Specifications +

Specifications

Designation: W
Material: SPM
Finish: Bright
Shank Form: A
Helix Angle: R40
Point Tolerance: e8
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Standard: DIN 844L

Application +

Applications

Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable ‚Äì 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable ‚Äì 100 HB
Optimal for Aluminum & Magnesium, cast alloy ‚â§12% Si - Non Heat Treatable ‚Äì 75 HB
Optimal for Aluminum & Magnesium, cast alloy ‚â§12% Si - Heat Treatable ‚Äì 90 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) ‚Äì 100 HB

Features & Benefits +

Features

3 Flute Endmill R40 W offers superior performance
Brt for non-ferrous materials

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E123 Metric 3 Flute Endmill - HSS Co11% SPM - Long

SKU: A0008725

$102.92

Inc. GST

Buy It Now

Available

The Sutton E123 Metric 3 Flute Endmill is designed for universal use in slotting and finishing applications. Made from SPM material, it features an optimised geometry for soft materials. The endmill measures 95mm in length and has a diameter of 10mm.
