Description
Description
Description
- For precision finish milling applications
Specifications
Specifications

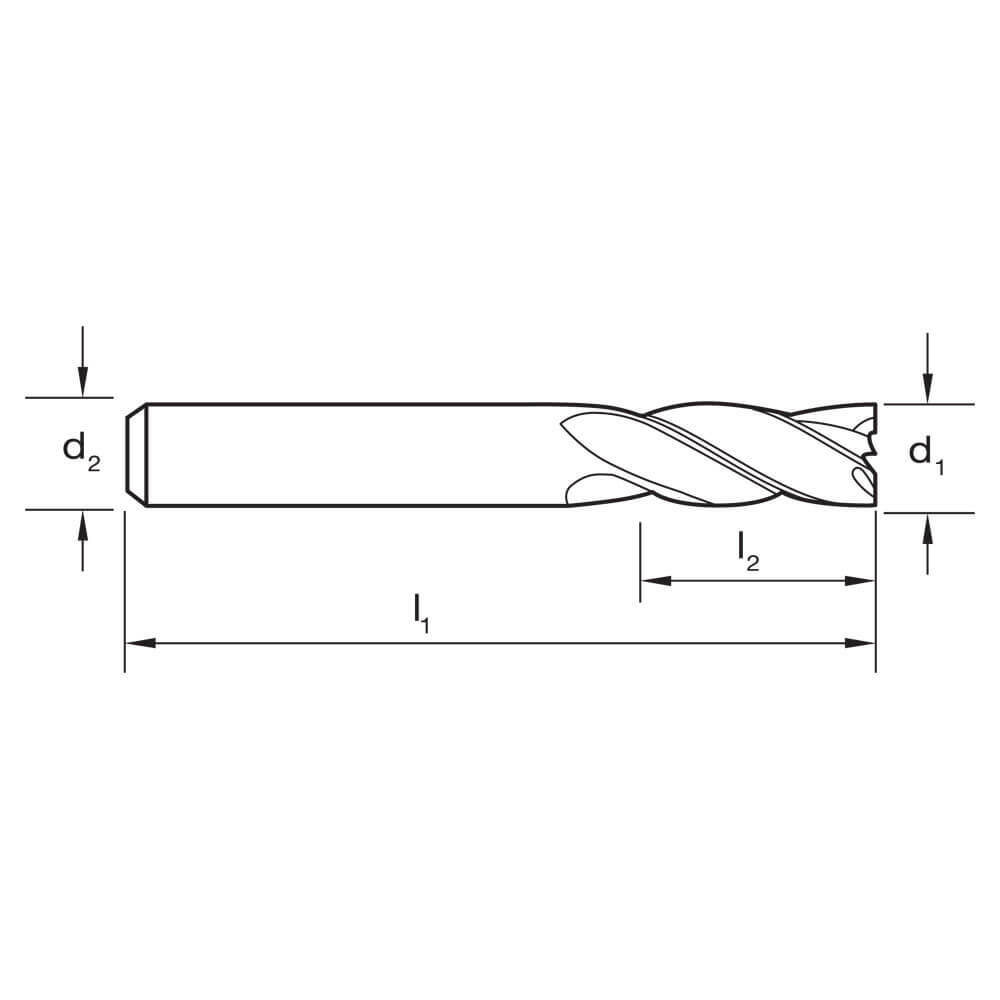

Dimensions
- d1 (mm): 4
- d2 (mm): 8
- l1 (mm): 60
- l2 (mm): 12
- Quantity: 1
Specifications
- Designation: N
- Material: High Speed Steel Cobalt-8
- Finish: TiCN
- Shank Form: A
- Helix Angle: R30
- Point Tolerance: k9
- Shank Tolerance: h6
- Point Form: Square End
- Type: N (finishing)
- Standard: JIS
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
- Optimal for Cast Iron, Grey (GG) – 180 HB
Features & Benefits
Features & Benefits
Features
- 4 Flute Endmill R30 N
- Suitable for materials up to 1000 N/mm2
- TiCN for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

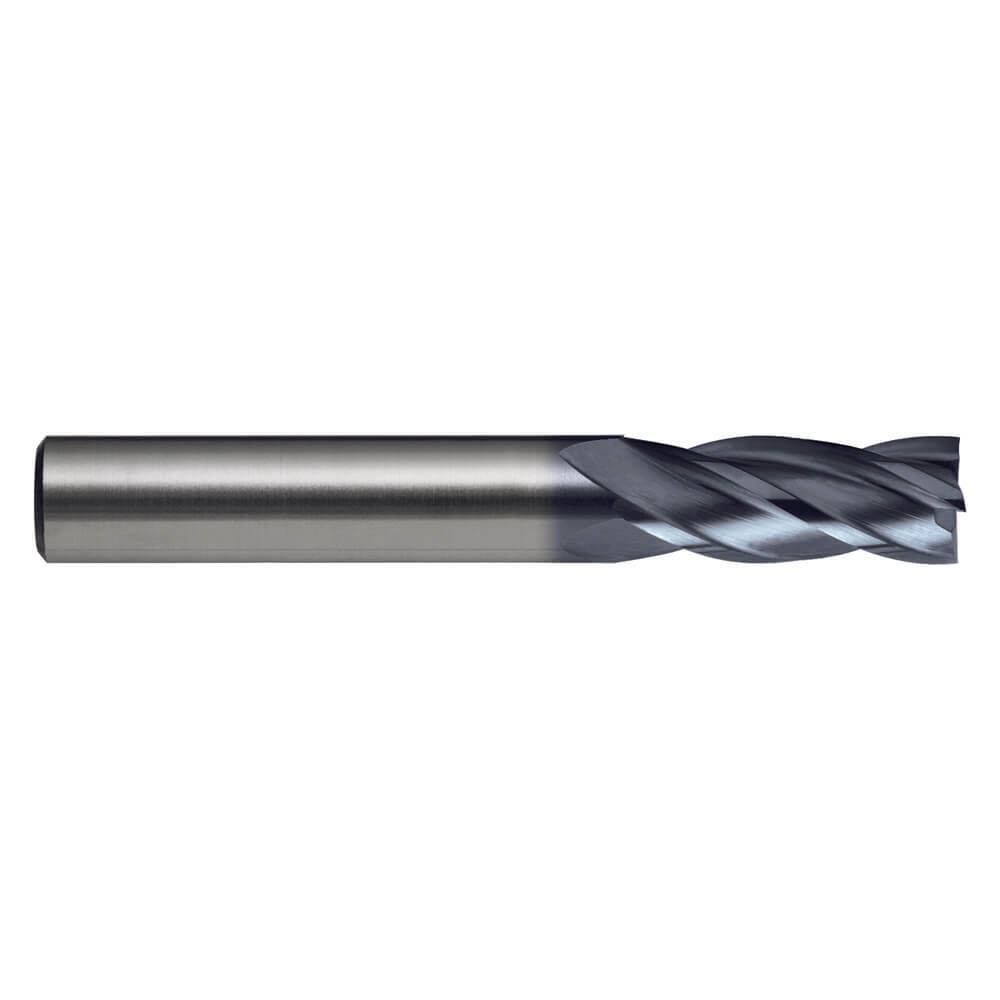

Sutton E126 Metric 4 Flute Endmill - 8% Cobalt Steel - TiCN - Regular
Sutton E126 Metric 4 Flute Endmill - 8% Cobalt Steel - TiCN - Regular
SKU: A0008800
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton E126 Metric 4 Flute Endmill is crafted from 8% Cobalt Steel for durability. With dimensions of d1: 4mm, d2: 8mm, l1: 60mm, and l2: 12mm, it is suitable for precision finish milling applications. The TiCN finish ensures a longer tool life.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Description
- For precision finish milling applications
Specifications
Specifications
Dimensions
- d1 (mm): 4
- d2 (mm): 8
- l1 (mm): 60
- l2 (mm): 12
- Quantity: 1
Specifications
- Designation: N
- Material: High Speed Steel Cobalt-8
- Finish: TiCN
- Shank Form: A
- Helix Angle: R30
- Point Tolerance: k9
- Shank Tolerance: h6
- Point Form: Square End
- Type: N (finishing)
- Standard: JIS
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
- Optimal for Cast Iron, Grey (GG) – 180 HB
Features & Benefits
Features & Benefits
Features
- 4 Flute Endmill R30 N
- Suitable for materials up to 1000 N/mm2
- TiCN for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton E126 Metric 4 Flute Endmill - 8% Cobalt Steel - TiCN - Regular
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton E126 Metric 4 Flute Endmill is crafted from 8% Cobalt Steel for durability. With dimensions of d1: 4mm, d2: 8mm, l1: 60mm, and l2: 12mm, it is suitable for precision finish milling applications. The TiCN finish ensures a longer tool life. |
Regular price
$89.86
Sale price
$89.86
Regular price
Unit price
/per
| Sutton Tools |
Overall Length (mm)
60
Cutting Tip (mm)
4,5,6
|
Choose your option
Sutton E126 Metric 4 Flute Endmill - 8% Cobalt Steel - TiCN - Regular
Sutton E126 Metric 4 Flute Endmill - 8% Cobalt Steel - TiCN - Regular
SKU: A0008800
Available
The Sutton E126 Metric 4 Flute Endmill is crafted from 8% Cobalt Steel for durability. With dimensions of d1: 4mm, d2: 8mm, l1: 60mm, and l2: 12mm, it is suitable for precision finish milling applications. The TiCN finish ensures a longer tool life.
