SKU: A0008849

Type: Machining Tool

$168.26
$168.26
Inc. GST
⚙Cobalt HSS Construction
⚙Sutton Metric Flute Endmill
📐Multiple Sizes Available
🔩Precision Milling Operations
🏗Metalworking & Manufacturing
☑Precision Engineered Tolerances

Available

Product Highlights −

Description

  • For precision finish milling applications

Resources

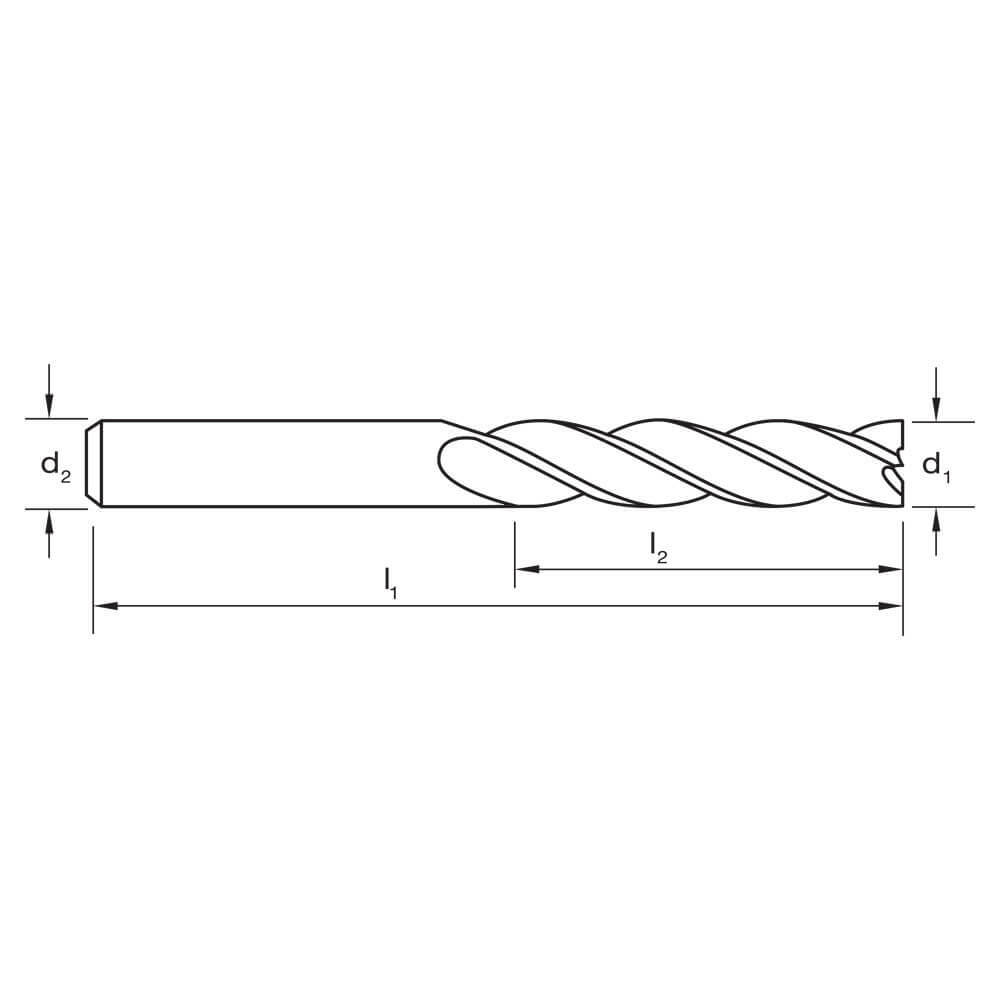

Dimensions

  • d1 (mm): 2
  • d2 (mm): 6
  • l1 (mm): 60
  • l2 (mm): 10
  • Quantity: 1

Specifications

  • Designation: N
  • Material: High Speed Steel Cobalt-8
  • Finish: TiCN
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: k10
  • Shank Tolerance: h6
  • Point Form: Square End
  • Type: N (finishing)
  • Standard: JIS

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic– 180 HB

Features

  • 4 Flute Endmill R30 N
  • Suitable for materials up to 1000 N/mm2
  • TiCN for longer tool life
Payment & Security
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Options:
  • 60 / 2mm machining tool
    Model Number: E1280200
  • 60 / 2.5mm machining tool
    Model Number: E1280250
  • 60 / 3mm machining tool
    Model Number: E1280300
  • 60 / 4mm machining tool
    Model Number: E1280400
  • 65 / 5mm machining tool
    Model Number: E1280500
  • 65 / 6mm machining tool
    Model Number: E1280600
  • 80 / 8mm machining tool
    Model Number: E1280800
  • 95 / 9mm machining tool
    Model Number: E1280900
  • 95 / 10mm machining tool
    Model Number: E1281000
  • 105 / 12mm machining tool
    Model Number: E1281200
  • 120 / 16mm machining tool
    Model Number: E1281600
  • 140 / 20mm machining tool
    Model Number: E1282000
  • 160 / 25mm machining tool
    Model Number: E1282500
  • 190 / 32mm machining tool
    Model Number: E1283200
