Description
Description
Sutton Tools Roughers - NR (Normal) - R30 WN - Regular
- For roughing applications
- NR geometry allows for heavy cuts
Specifications
Specifications
Specifications
- Designation: WN
- Material: High Speed Steel Cobalt-8
- Finish: Bright
- Shank Form: A
- Helix Angle: R30
- Point Tolerance: js14
- Shank Tolerance: h6
- Point Form: 45° Corner Chamfer
- Type: NR (coarse pitch)
- Standard: JIS
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
- Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
Features & Benefits
Features & Benefits
Features
- NR (normal) Rougher R30 WN
- Suitable for materials up to 1000 N/mm2
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

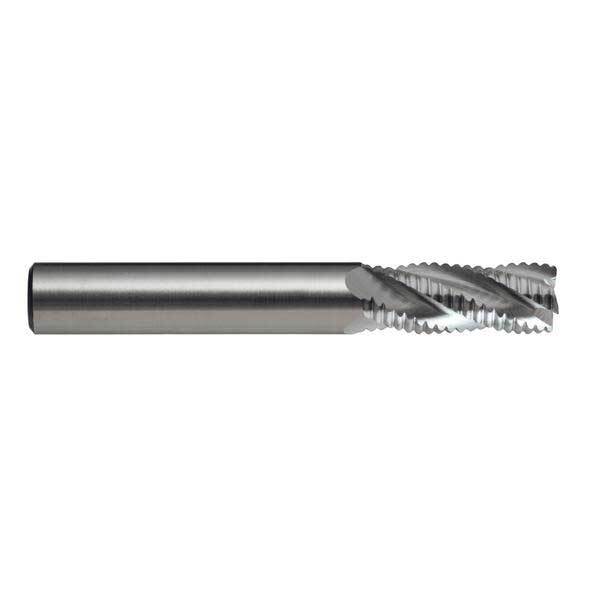

Sutton E1421400 14 x 16mm 4 Flute Roughing Endmill - 8% Cobalt - Regular
Sutton E1421400 14 x 16mm 4 Flute Roughing Endmill - 8% Cobalt - Regular
SKU: A0131172
Type: Rougher Endmill
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton E1421400 14 x 16mm 4 Flute Roughing Endmill by Sutton Tools is a Rougher Endmill with High Speed Steel Cobalt-8 construction. It provides performance up to 1000 N/mm2 and is suitable for roughing applications in machining.
