Description
Description
Descriptions
- For roughing applications
- NR geometry allows for heavy cuts
Specifications
Specifications

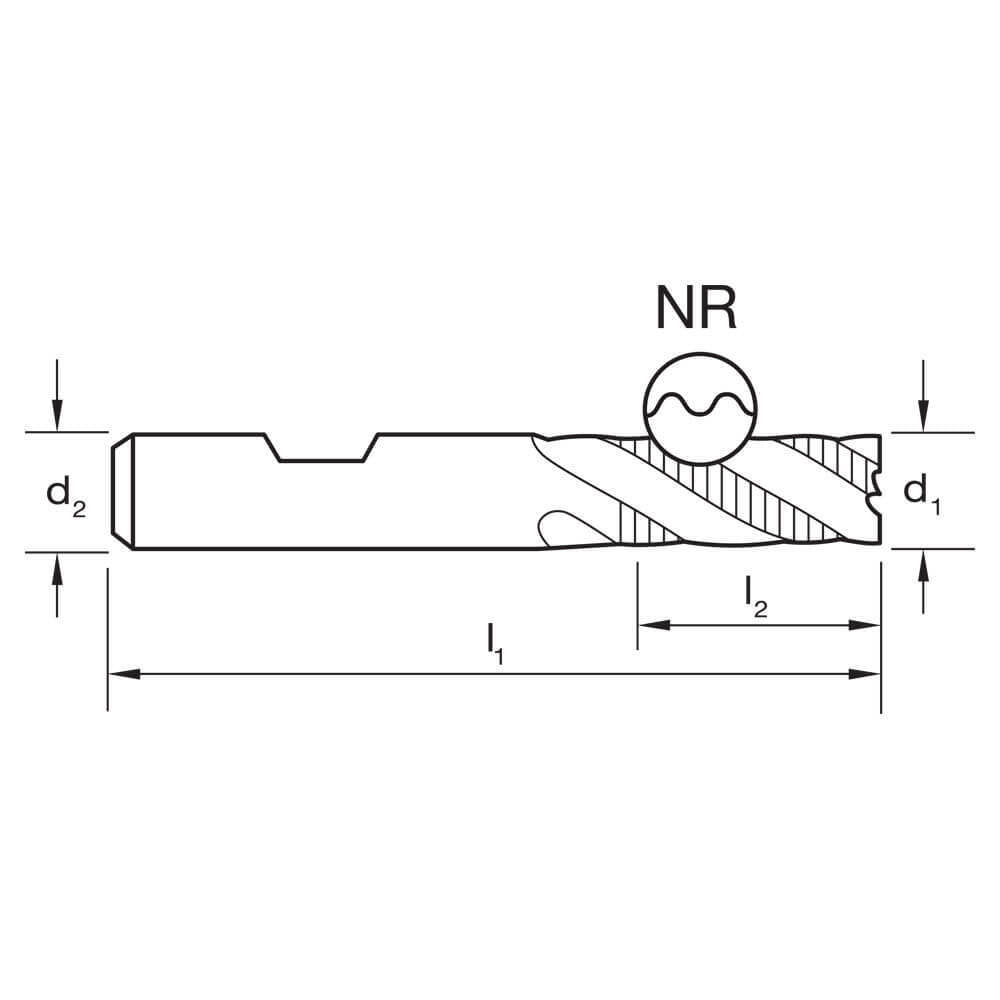

Dimensions
- d1 (mm): 16
- d2 (mm): 16
- l1 (mm): 95
- l2 (mm): 40
- No. of Flutes: 4
- Quantity: 1
Specifications
- Designation: WN
- Material: High Speed Steel Cobalt-8
- Finish: TiCN
- Shank Form: B
- Helix Angle: R30
- Point Tolerance: js14
- Shank Tolerance: h6
- Point Form: 45° Corner Chamfer
- Type: NR (coarse pitch)
- Standard: JIS
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Features & Benefits
Features & Benefits
Features
- NR (normal) Rougher R30 WN
- Suitable for materials up to 1000 N/mm2
- TiCN for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

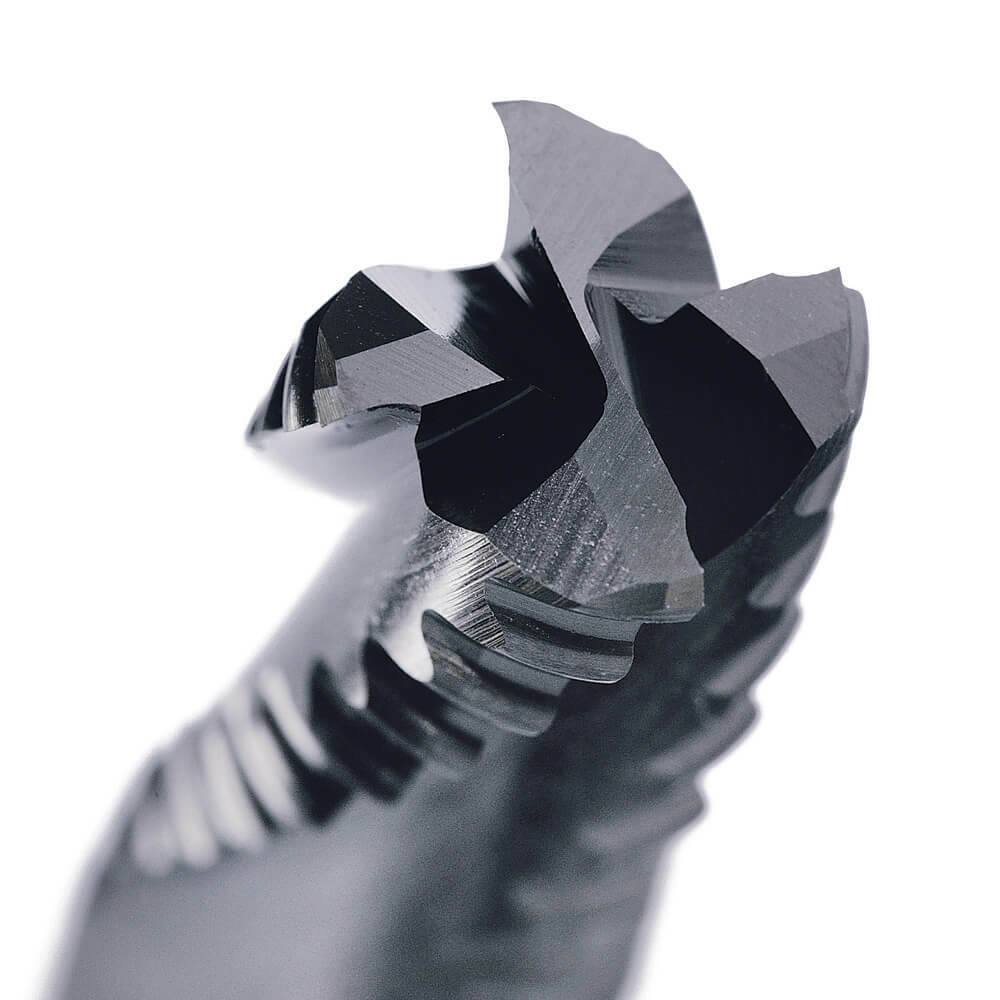

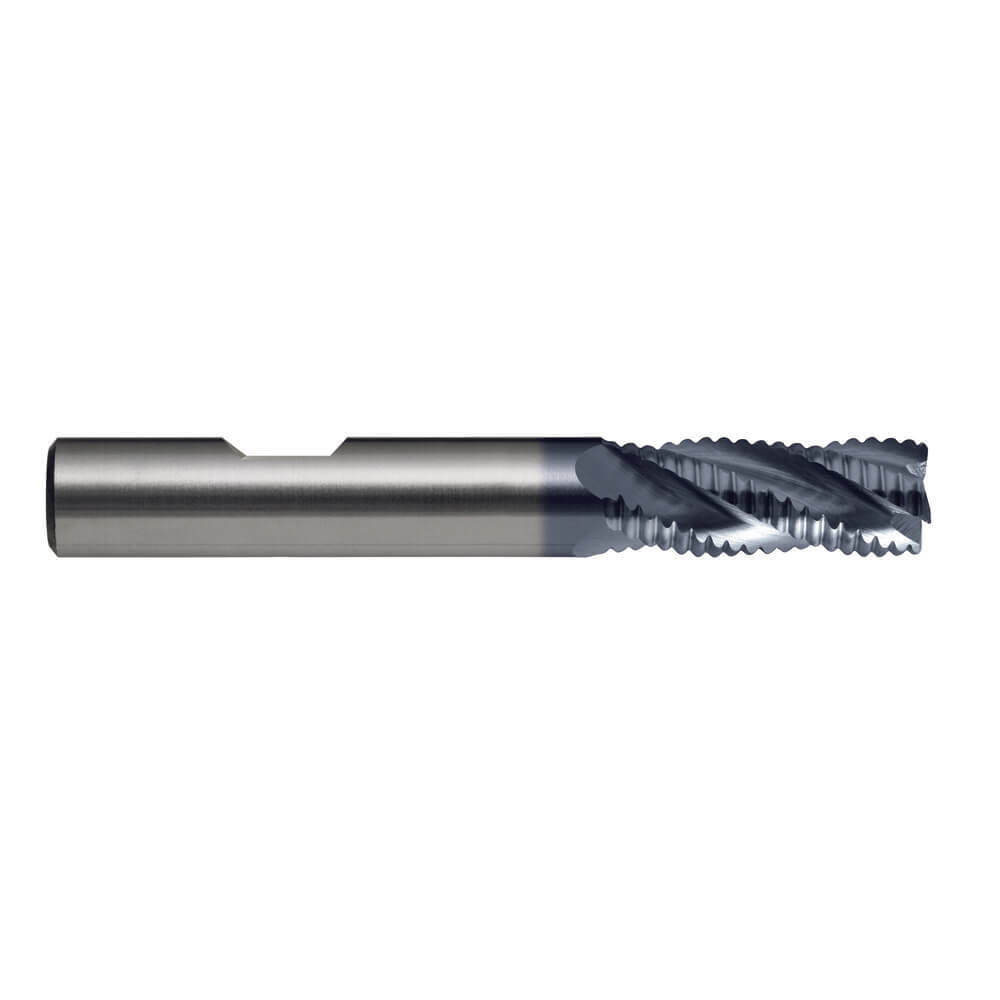

Sutton E145 Metric 4-5 Flute Roughing Endmill 8% Cobalt TiCN Regular
Sutton E145 Metric 4-5 Flute Roughing Endmill 8% Cobalt TiCN Regular
SKU: A0008971
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton E145 Metric 4-5 Flute Roughing Endmill excels in roughing applications. With its NR geometry, it can handle heavy cuts on materials up to 1000 N/mm2. Its High Speed Steel Cobalt-8 construction and TiCN finish ensure durability.
