Sutton E1711600 16mm 4 Flute Roughing End mill - 8% Cobalt TiCN - Regular1

Sutton E1711600 16mm 4 Flute Roughing End mill - 8% Cobalt TiCN - Regular2

Sutton E1711600 16mm 4 Flute Roughing End mill - 8% Cobalt TiCN - Regular3

Description +

Descriptions

For roughing applications
HR geometry allows for heavy cuts, in harder materials

Specifications +

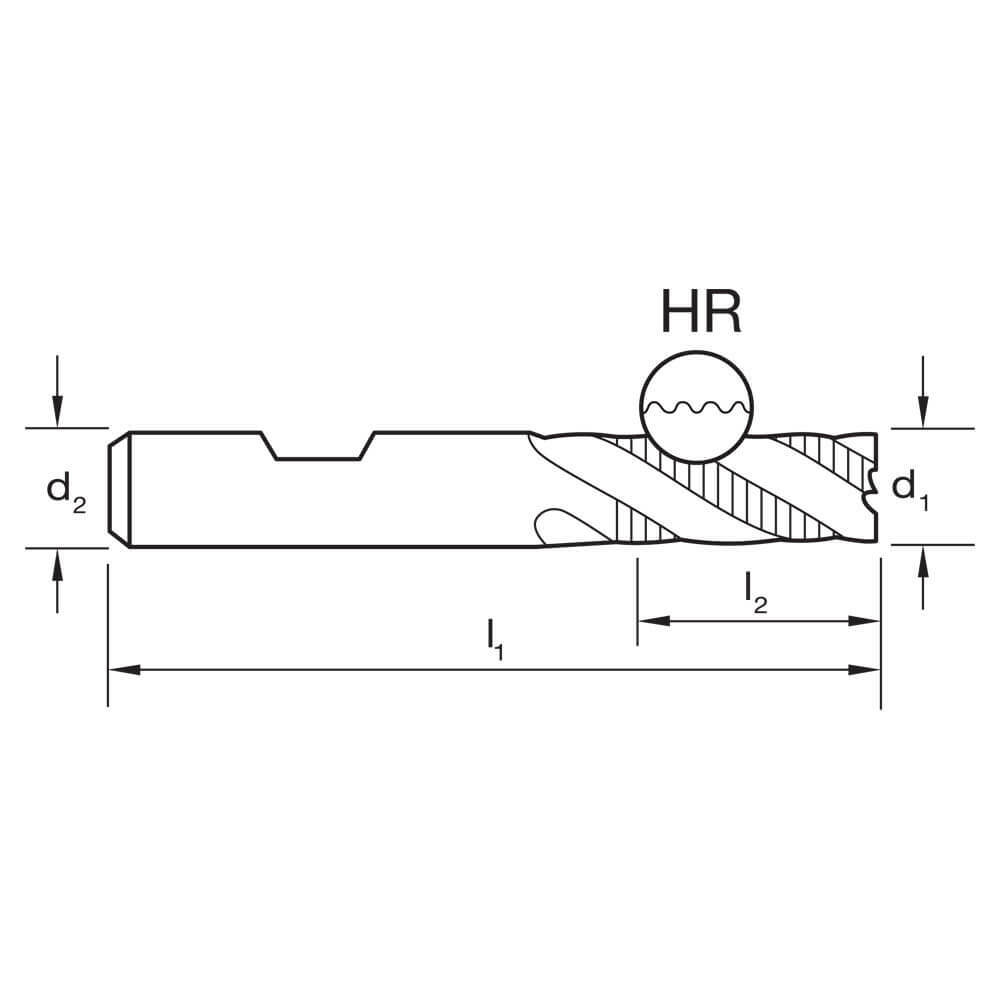

Dimensions

d1 (mm): 6
d2 (mm): 10
l1 (mm): 60
l2 (mm): 15
No. of Flutes: 3
Quantity: 1

Specifications

Designation: NH
Material: High Speed Steel Cobalt-8
Finish: TiCN
Shank Form: B
Helix Angle: R30
Point Tolerance: js14
Shank Tolerance: h6
Point Form: 45° Corner Chamfer
Type: HR (fine pitch)
Standard: JIS

Application +

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
Optimal for Steel - High alloy, cast & tool- 200 HB
Optimal for Steel - High alloy, cast & tool- 325 HB
Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic – 180 HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
Optimal for Cast Iron, Malleable - Ferritic- 130 HB

Features & Benefits +

Features

HR (fine) R30 NH Rougher Regular
Suitable for materials up to 1300 N/mm2
TiCN for longer tool life

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E1711600 16mm 4 Flute Roughing End mill - 8% Cobalt TiCN - Regular

SKU: A0009016

$287.79

Inc. GST

Buy It Now

Available

The Sutton E1711600 16mm 4 Flute Roughing End mill excels in roughing applications. Its HR geometry enables heavy cuts in hard materials. Crafted from High Speed Steel Cobalt-8 with a TiCN finish, it can handle materials up to 1300 N/mm2.
