Description
Description
Descriptions
- NF (semi) Rougher R30
- NF geometry allows for heavy cuts, with a good surface finish
Specifications
Specifications

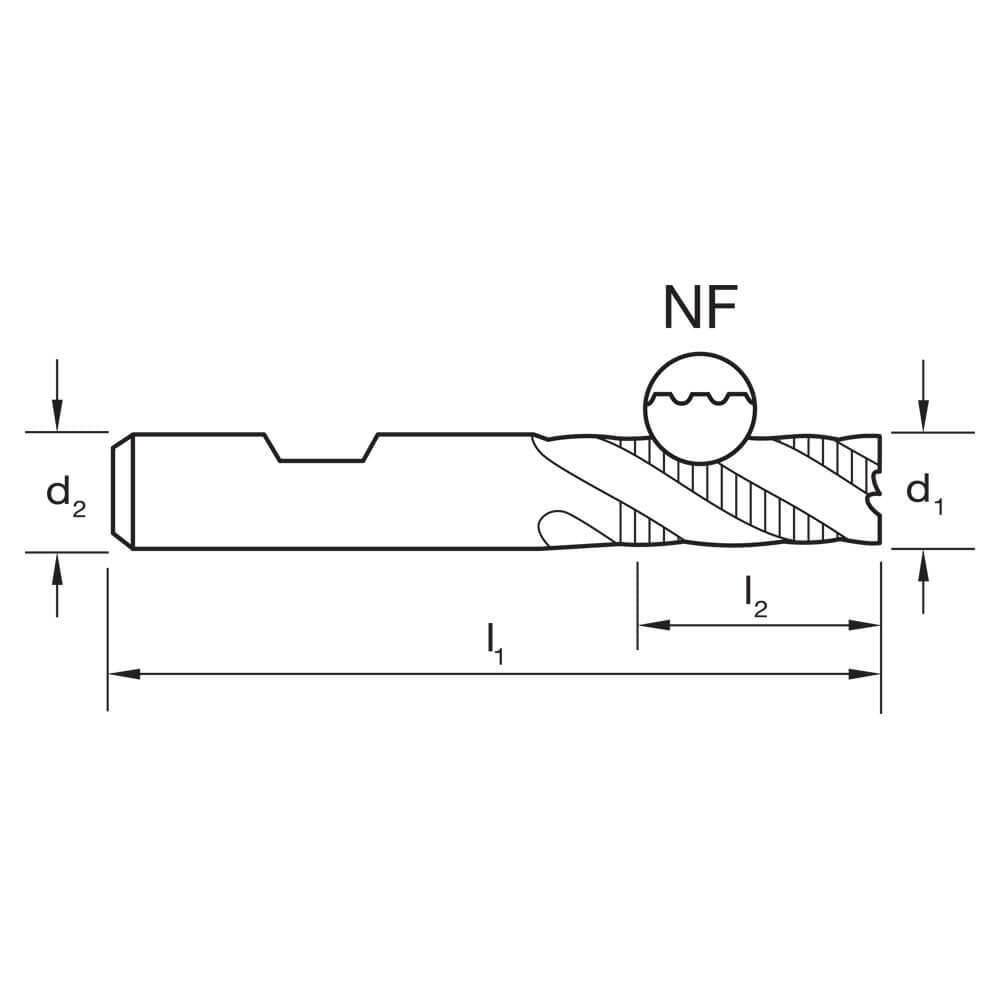

Dimensions
- d1 (mm): 6
- d2 (mm): 6
- l1 (mm): 57
- l2 (mm): 13
- Quantity: 1
Specifications
- Designation: N
- Material: High Speed Steel Cobalt-8
- Finish: TiAIN
- Shank Form: B
- Helix Angle: R30
- Point Tolerance: js14
- Shank Tolerance: h6
- Point Form: 45° Corner Chamfer
- Type: N (semi roughing)
- Standard: DIN 844K
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
- Optimal for Steel - High alloy, cast & tool- 200 HB
- Optimal for Stainless Steel - Austenitic- 180 HB
- Optimal for Stainless Steel - Duplex- 250 HB
- Optimal for Cast Iron, Ferritic/Pearlitic - 180 HB
- Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB
Features & Benefits
Features & Benefits
Features
- Suitable for materials up to 1100 N/mm2
- TiAlN for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

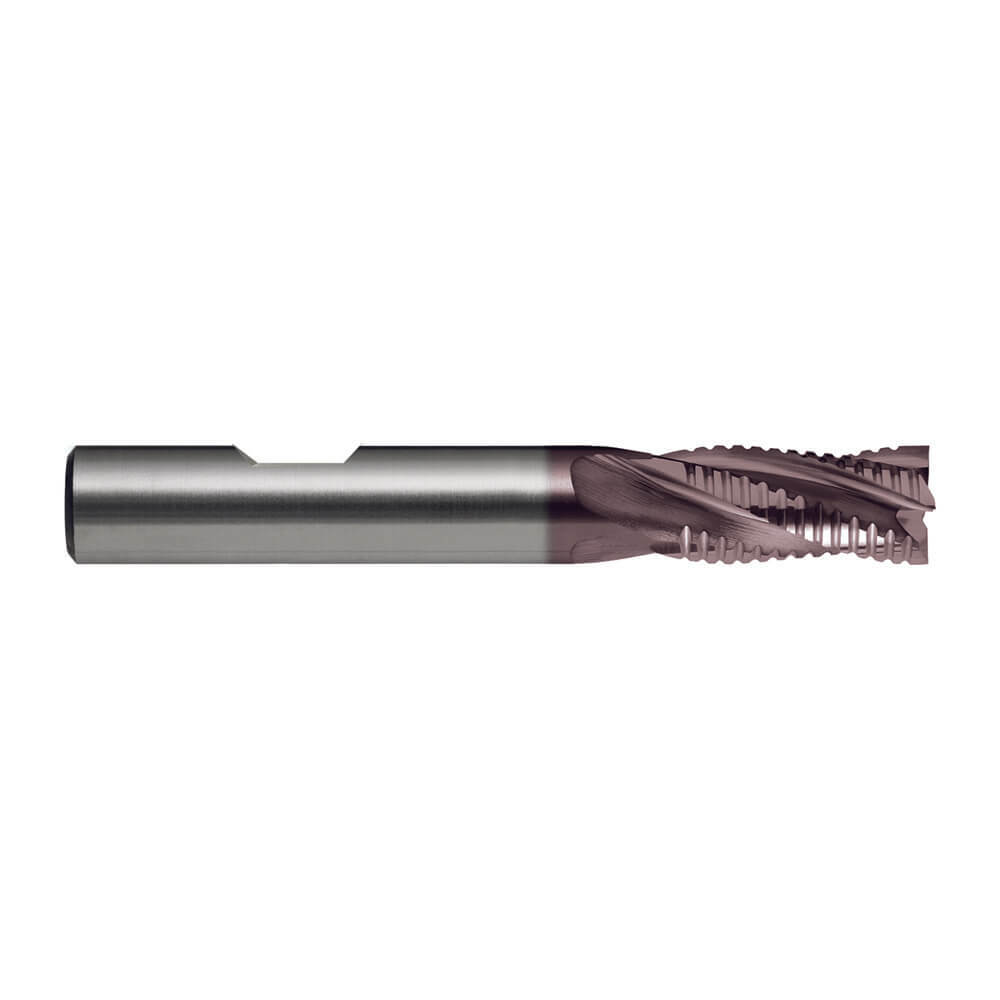

Sutton E202 Metric 3 Flute Roughing Endmill - 8% Cobalt TiAlN Regular
Sutton E202 Metric 3 Flute Roughing Endmill - 8% Cobalt TiAlN Regular
SKU: A0009074
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton E202 Metric 3 Flute Roughing Endmill, made from high-speed steel cobalt-8, is designed for heavy-duty cutting. It features a TiAlN finish for longevity and can handle materials up to 1100 N/mm2. Its dimensions are 72mm in length and 10mm in diameter.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Descriptions
- NF (semi) Rougher R30
- NF geometry allows for heavy cuts, with a good surface finish
Specifications
Specifications
Dimensions
- d1 (mm): 6
- d2 (mm): 6
- l1 (mm): 57
- l2 (mm): 13
- Quantity: 1
Specifications
- Designation: N
- Material: High Speed Steel Cobalt-8
- Finish: TiAIN
- Shank Form: B
- Helix Angle: R30
- Point Tolerance: js14
- Shank Tolerance: h6
- Point Form: 45° Corner Chamfer
- Type: N (semi roughing)
- Standard: DIN 844K
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
- Optimal for Steel - High alloy, cast & tool- 200 HB
- Optimal for Stainless Steel - Austenitic- 180 HB
- Optimal for Stainless Steel - Duplex- 250 HB
- Optimal for Cast Iron, Ferritic/Pearlitic - 180 HB
- Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB
Features & Benefits
Features & Benefits
Features
- Suitable for materials up to 1100 N/mm2
- TiAlN for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton E202 Metric 3 Flute Roughing Endmill - 8% Cobalt TiAlN Regular
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton E202 Metric 3 Flute Roughing Endmill, made from high-speed steel cobalt-8, is designed for heavy-duty cutting. It features a TiAlN finish for longevity and can handle materials up to 1100 N/mm2. Its dimensions are 72mm in length and 10mm in diameter. |
Regular price
From $175.98
Sale price
From $175.98
Regular price
Unit price
/per
| Sutton Tools |
Overall Length (mm)
57,69,72,83,92,104,121
Cutting Tip (mm)
6,8,10,12,14,16,18,20,22,25,30
|
Choose your option
Sutton E202 Metric 3 Flute Roughing Endmill - 8% Cobalt TiAlN Regular
Sutton E202 Metric 3 Flute Roughing Endmill - 8% Cobalt TiAlN Regular
SKU: A0009074
Hurry up, only 15 items left in stock.
The Sutton E202 Metric 3 Flute Roughing Endmill, made from high-speed steel cobalt-8, is designed for heavy-duty cutting. It features a TiAlN finish for longevity and can handle materials up to 1100 N/mm2. Its dimensions are 72mm in length and 10mm in diameter.
