Description
Description
Description
- For long reach milling of slots & cavities
Specifications
Specifications
Specifications
- Designation: N
- Material: VHM
- Finish: Bright
- Shank Form: HA
- Helix Angle: R30
- Point Tolerance: h10
- Shank Tolerance: h6
- Point Form: Square End
- Type: N (finishing)
- Rake Angle: 12
- Standard: Sutton
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Features & Benefits
Features & Benefits
Features
- 2 Flute Slot Drill R30 N
- Suitable for materials up to 1300 N/mm2
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

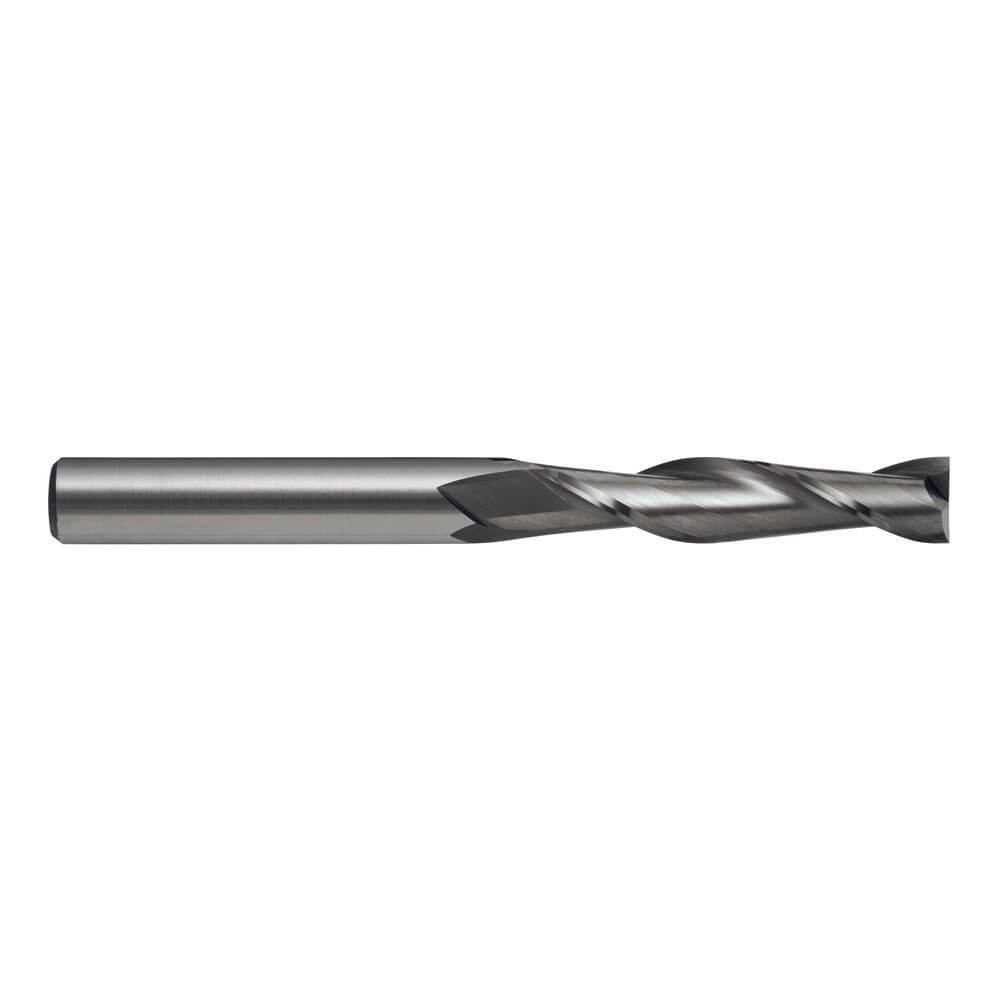

Sutton E309 Metric 2 Flute Slot Drill - Solid Carbide VHM - Extra Long
Sutton E309 Metric 2 Flute Slot Drill - Solid Carbide VHM - Extra Long
SKU: A0009158
- Wide Range
- Reliable Services
- Proven Trust
Available

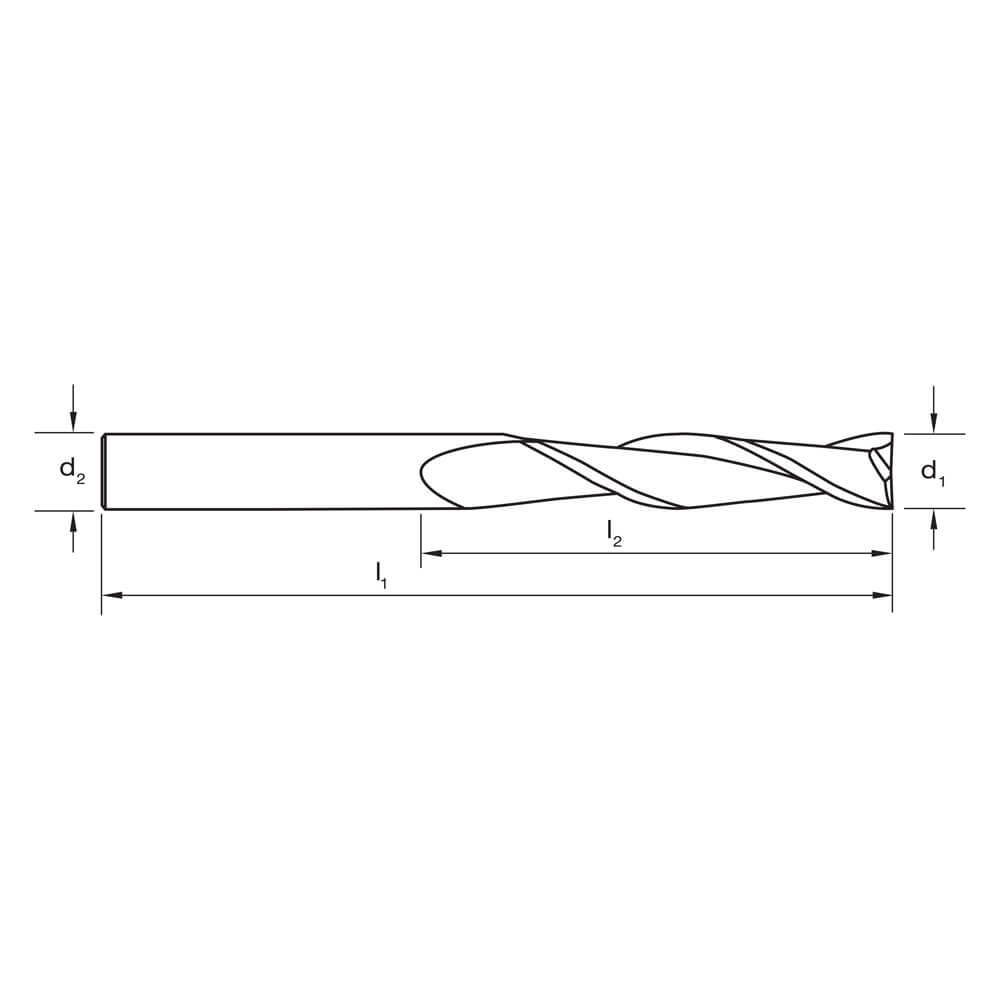

The Sutton E309 Metric 2 Flute Slot Drill, made from solid carbide VHM, excels in long reach milling of slots and cavities. Its dimensions are d1 and d2: 10mm, l1: 102mm, and l2: 45mm. It handles materials up to 1300 N/mm2, making it versatile for different steel types.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Description
- For long reach milling of slots & cavities
Specifications
Specifications
Specifications
- Designation: N
- Material: VHM
- Finish: Bright
- Shank Form: HA
- Helix Angle: R30
- Point Tolerance: h10
- Shank Tolerance: h6
- Point Form: Square End
- Type: N (finishing)
- Rake Angle: 12
- Standard: Sutton
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Features & Benefits
Features & Benefits
Features
- 2 Flute Slot Drill R30 N
- Suitable for materials up to 1300 N/mm2
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton E309 Metric 2 Flute Slot Drill - Solid Carbide VHM - Extra Long
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton E309 Metric 2 Flute Slot Drill, made from solid carbide VHM, excels in long reach milling of slots and cavities. Its dimensions are d1 and d2: 10mm, l1: 102mm, and l2: 45mm. It handles materials up to 1300 N/mm2, making it versatile for different steel types. |
Regular price
From $67.61
Sale price
From $67.61
Regular price
Unit price
/per
| Sutton Tools |
Overall Length (mm)
76,102,153
Cutting Tip (mm)
3,4,5,6,8,10,12,14,16,18,20
|
Choose your option
Sutton E309 Metric 2 Flute Slot Drill - Solid Carbide VHM - Extra Long
Sutton E309 Metric 2 Flute Slot Drill - Solid Carbide VHM - Extra Long
SKU: A0009158
Hurry up, only 2 items left in stock.
The Sutton E309 Metric 2 Flute Slot Drill, made from solid carbide VHM, excels in long reach milling of slots and cavities. Its dimensions are d1 and d2: 10mm, l1: 102mm, and l2: 45mm. It handles materials up to 1300 N/mm2, making it versatile for different steel types.
