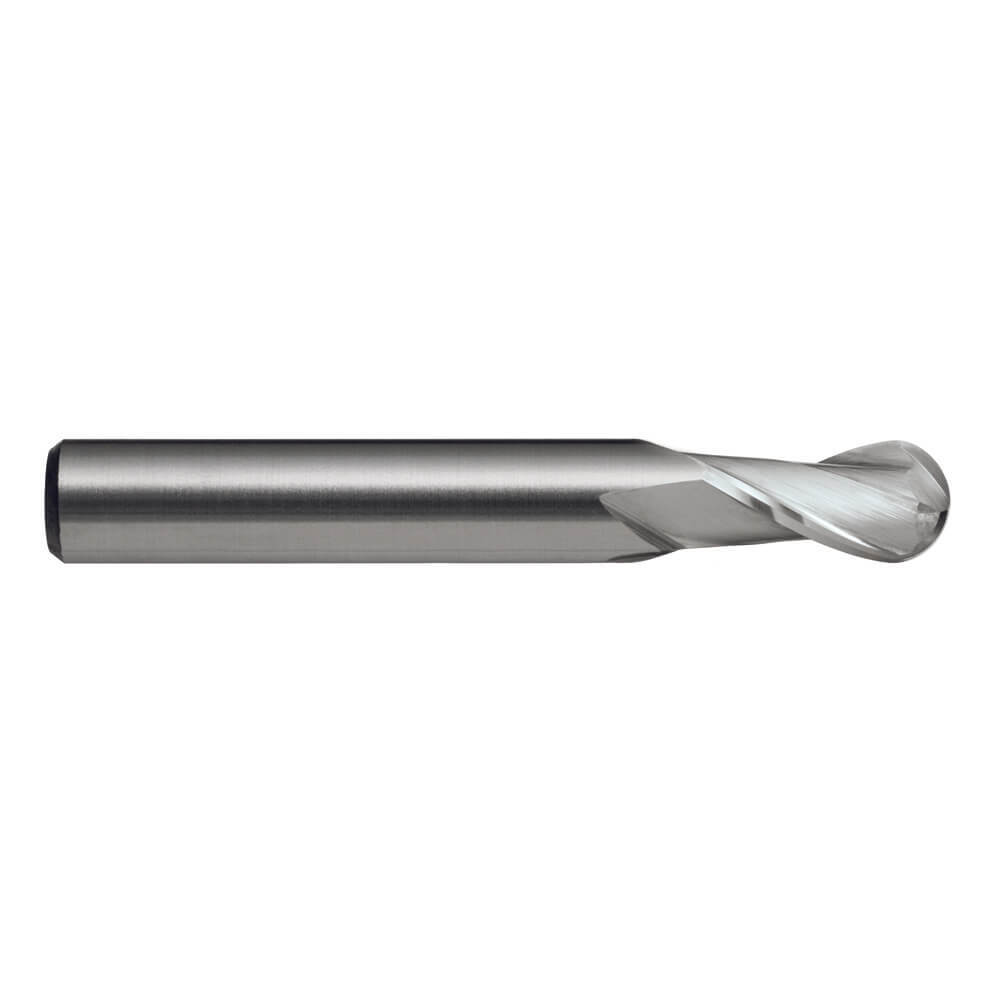

Sutton E311 Imperial 2 Flute Ball Nose Endmill - Carbide VHM Regular
Sutton E311 Imperial 2 Flute Ball Nose Endmill - Carbide VHM Regular
SKU: A0009178
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton E311 Endmill is a 2 Flute Ball Nose tool ideal for profile and contour milling. Constructed from VHM material, it can handle materials up to 1600 N/mm2. Its precise dimensions ensure durable performance.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Description
- For profile & contour milling applications
Specifications
Specifications

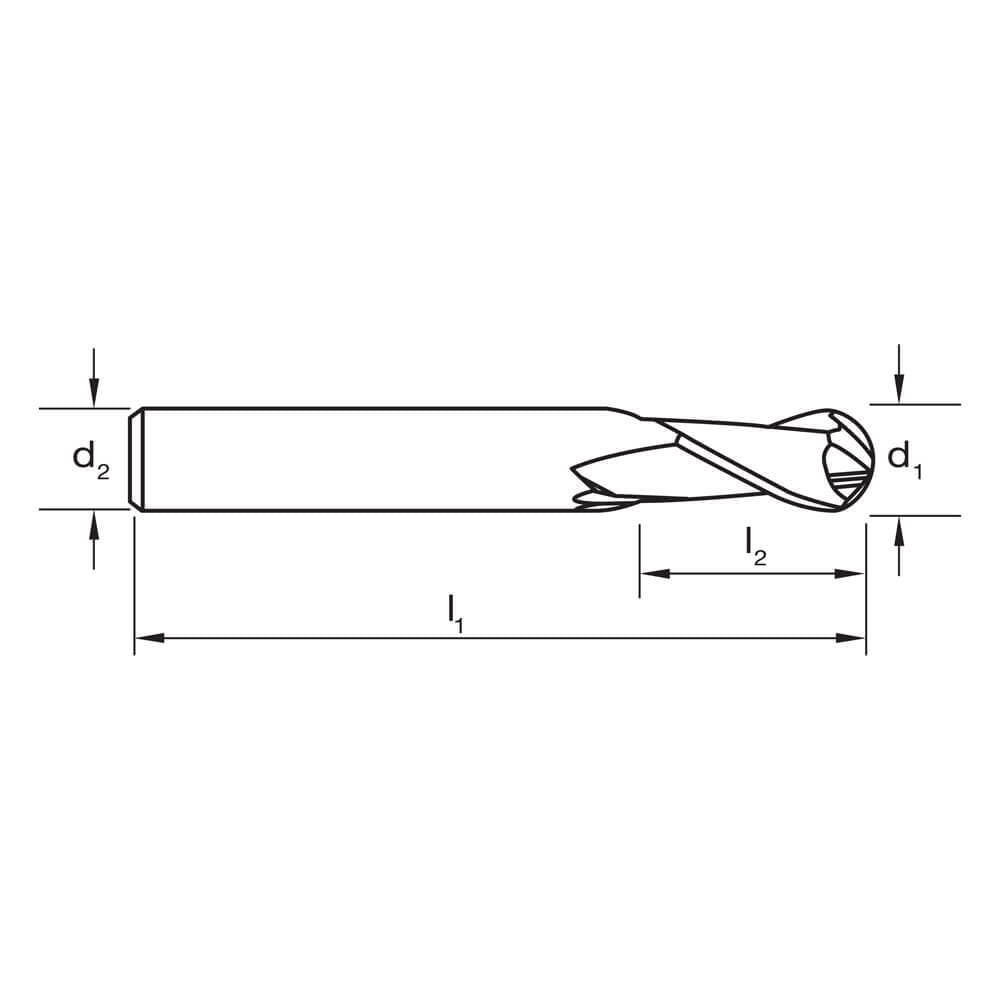

Dimensions
- d1 (in): 1/16
- d2 (in): 1/8
- l1 (in): 1-1/2
- l2 (in): 3/16
- Quantity: 1
Specifications
- Designation: N
- Material: VHM
- Finish: Bright
- Shank Form: HA
- Helix Angle: R30
- Point Tolerance: h10
- Shank Tolerance: h6
- Point Form: Ballnose
- Type: N (finishing)
- Rake Angle: 12
- Standard: DIN 6527L
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Features & Benefits
Features & Benefits
Features
- Ballnose Slot Drill 2 Flute
- Suitable for materials up to 1600 N/mm2
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton E311 Imperial 2 Flute Ball Nose Endmill - Carbide VHM Regular
