Sutton E3330159 1/16" x 1/8" 4 Flute Endmill - Carbide VHM - Regular

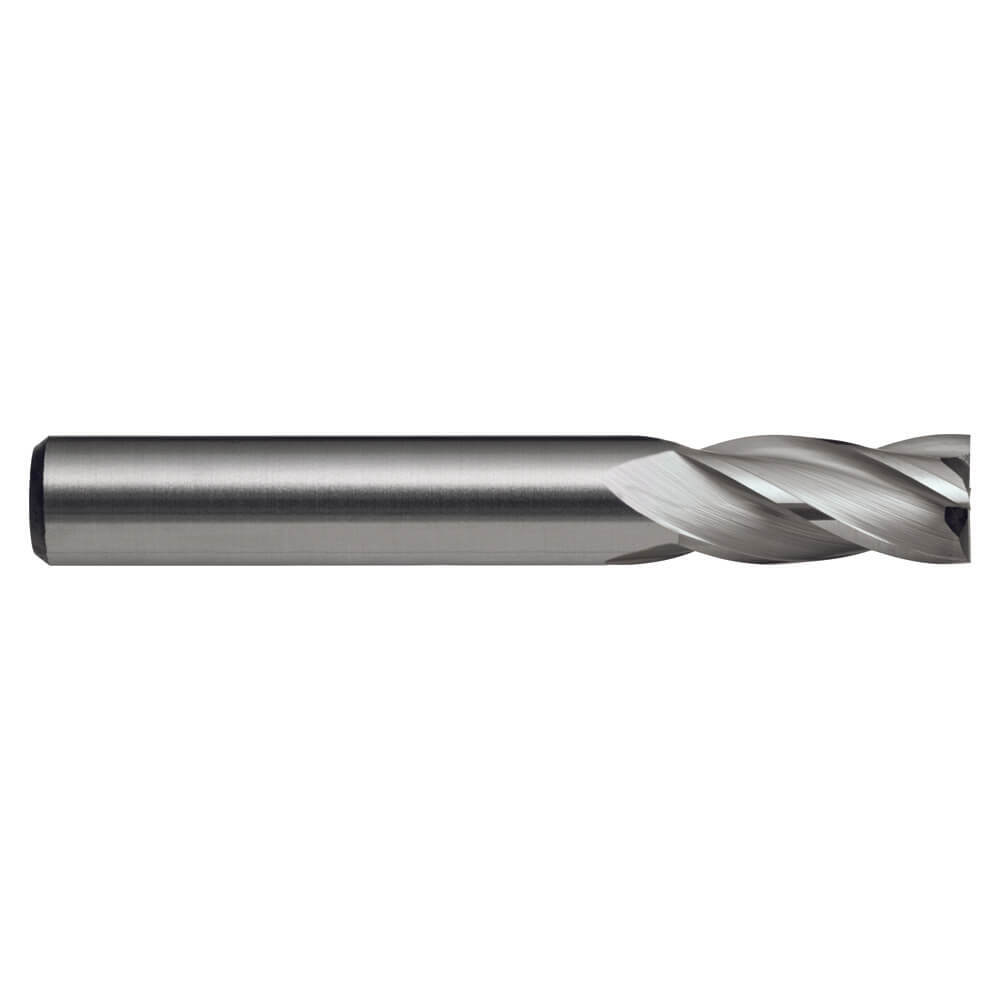

Sutton E3330238 3/32" x 1/8" 4 Flute Endmill - Carbide VHM - Regular

Sutton E3330318 1/8" x 1/8" 4 Flute Endmill - Solid Carbide VHM - Regular

Sutton E3330397 5/32" x 5/32" 4 Flute Endmill - Carbide VHM - Regular

Sutton E3330476 3/16" x 3/16" 4 Flute Endmill - Carbide VHM - Regular

Sutton E3330556 7/32" x 7/32" 4 Flute Endmill - Carbide VHM - Regular

Sutton E3330635 1/4" x 1/4" 4 Flute Endmill - Solid Carbide VHM - Regular

Sutton E3330794 5/16" x 5/16" 4 Flute Endmill - Carbide VHM - Regular

Sutton E3330953 3/8" x 3/8" 4 Flute Endmill - Solid Carbide VHM - Regular

Sutton E3331270 1/2" x 1/2" 4 Flute Endmill - Solid Carbide VHM - Regular

Sutton E3331588 5/8" x 5/8" 4 Flute Endmill - Solid Carbide VHM - Regular

Sutton E3331905 3/4" x 3/4" 4 Flute Endmill - Solid Carbide VHM - Regular

Description +

Description

For precision finish milling applications

Specifications +

Specifications

Designation: N
Material: VHM
Finish: Bright
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Rake Angle: 12
Standard: Sutton

Application +

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Cast Iron, Ferritic/Pearlitic - 180 HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB

Features & Benefits +

Features

4 Flute Endmill R30 N
Suitable for materials up to 1600 N/mm2

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E333 Imperial 4 Flute Endmill - Solid Carbide VHM - Regular

SKU: A0009231

$34.03

Inc. GST

Buy It Now

Available

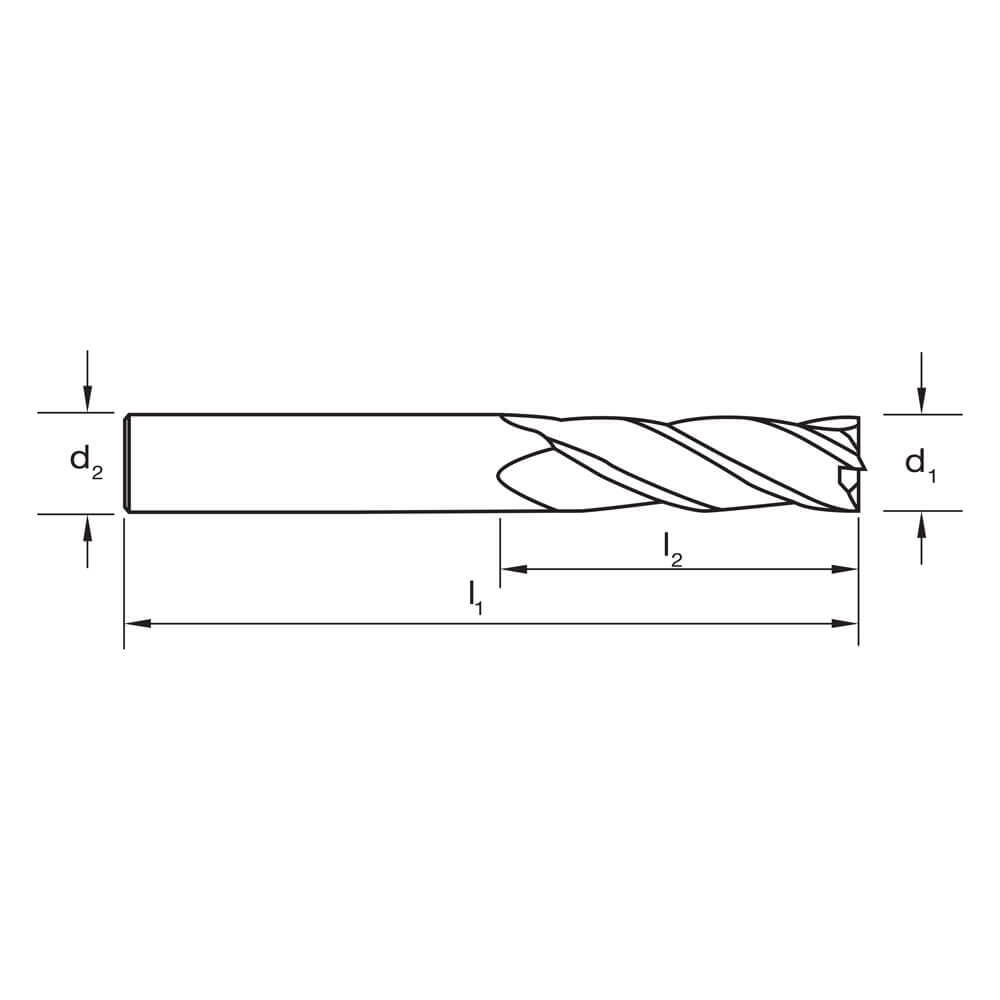

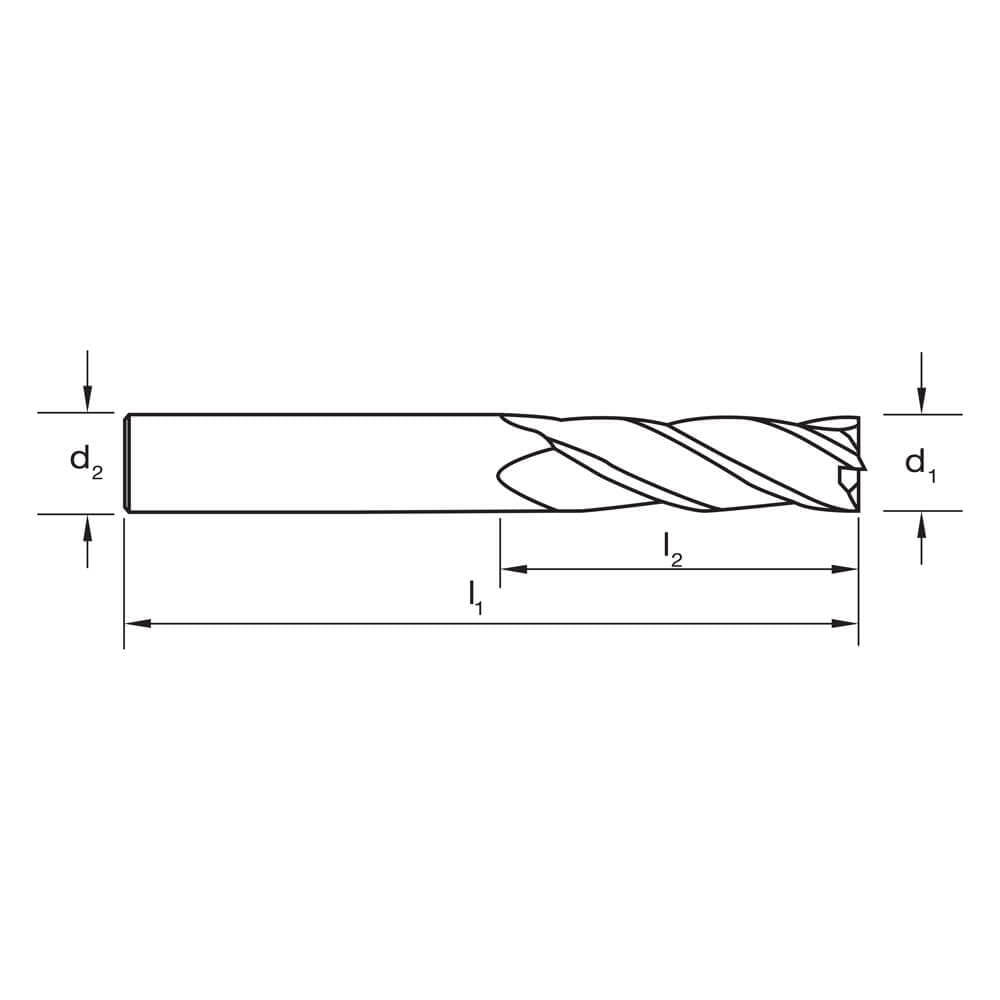

The Sutton E333 Imperial 4 Flute Endmill, made from solid carbide VHM, is ideal for precision finish milling. It has dimensions of d1: 1/16in, d2: 1/8in, l1: 1-1/2in, and l2: 3/16in and can handle materials up to 1600 N/mm2. Suitable for various steel and cast iron types.
