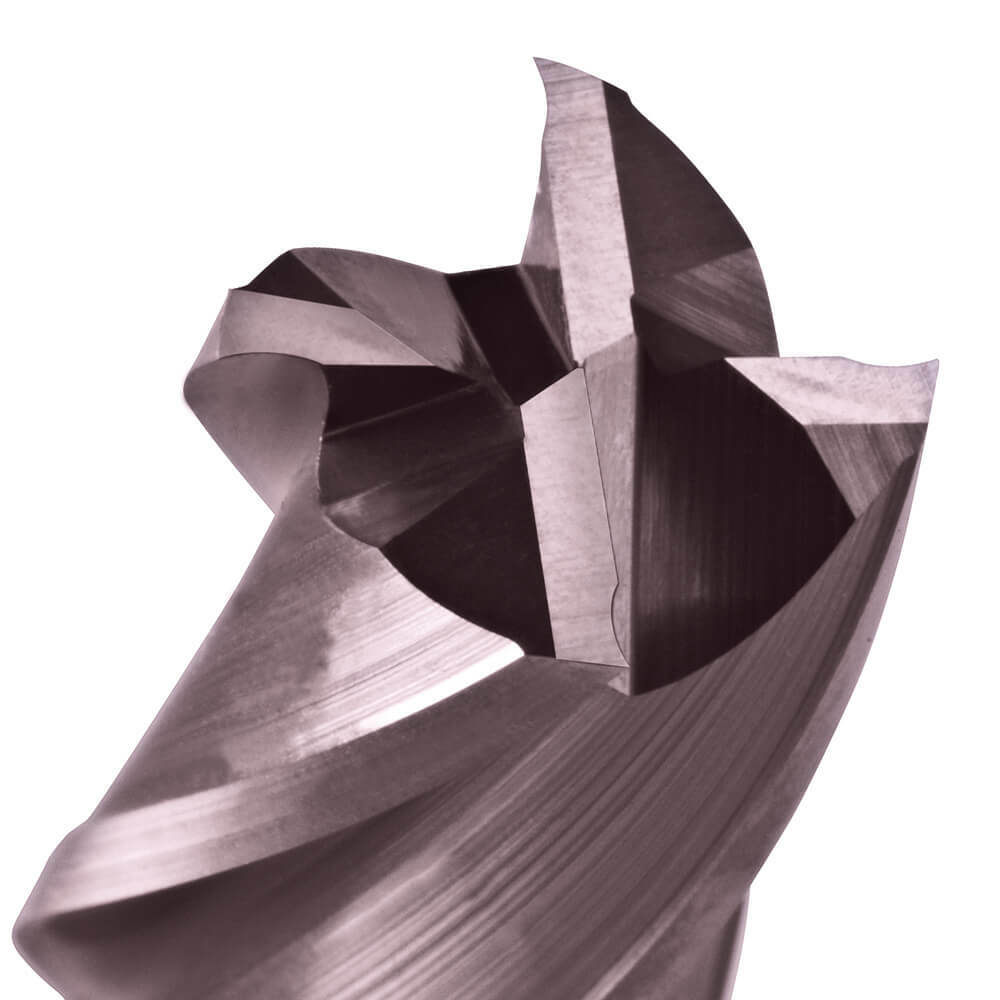

Sutton E340 Imperial 4 Flute Endmill - Carbide VHM - AlCrN - Long1

Sutton E340 Imperial 4 Flute Endmill - Carbide VHM - AlCrN - Long2

Sutton E340 Imperial 4 Flute Endmill - Carbide VHM - AlCrN - Long3

Sutton E3400318 1/8" x 1/8" 4 Flute Endmill - Carbide VHM - AlCrN - Long

Sutton E3400635 1/4" x 1/4" 4 Flute Endmill - Carbide VHM - AlCrN - Long

Sutton E3400794 5/16" x 5/16" 4 Flute Endmill - Carbide VHM - AlCrN Long

Sutton E3400953 3/8" x 3/8" 4 Flute Endmill - Carbide VHM - AlCrN - Long

Sutton E3401270 1/2" x 1/2" 4 Flute Endmill - Carbide VHM - AlCrN - Long

Sutton E3401588 5/8" x 5/8" 4 Flute Endmill - Carbide VHM - AlCrN - Long

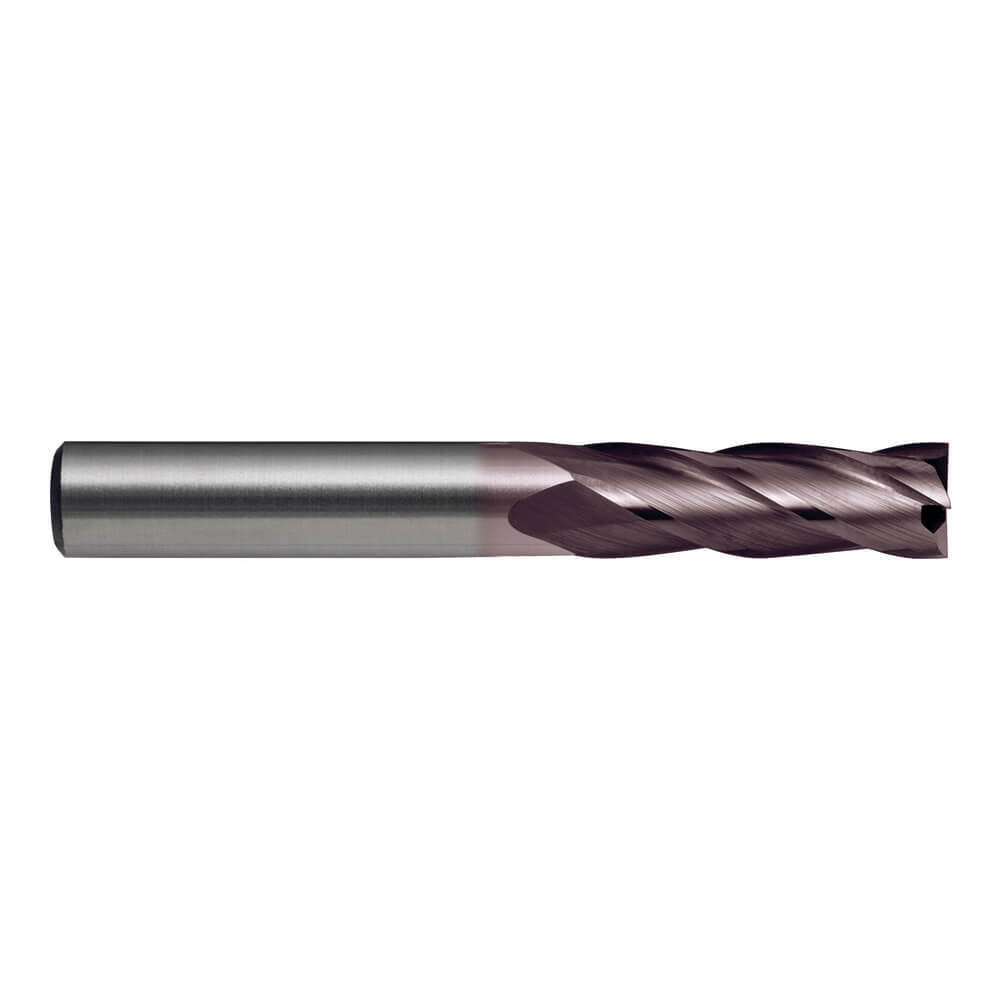

Sutton E3401905 3/4" x 3/4" 4 Flute Endmill - Carbide VHM - AlCrN - Long

Specifications +

Specifications

Designation: N
Material: VHM
Finish: TiAIN
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Rake Angle: 12
Standard: Sutton

Application +

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
Optimal for Steel - High alloy, cast & tool- 200 HB
Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic ‚Äì 200 HB
Optimal for Stainless Steel ‚Äì Austenitic- 180 HB
Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic ‚Äì 180 HB
Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
Optimal for Cast Iron, Nodular (GGG) - Pearlitic- 250 HB
Optimal for Cast Iron, Malleable - Ferritic- 130 HB
Optimal for Cast Iron, Malleable ‚Äì Pearlitic ‚Äì 230 HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable ‚Äì 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable ‚Äì 100 HB
Optimal for Cast Iron ‚Äì Chilled ‚Äì 400 HB

Features & Benefits +

Features

4 Flute Endmill R30 N
Suitable for materials up to 1300 N/mm2

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 29%

Sutton E340 Imperial 4 Flute Endmill - Carbide VHM - AlCrN - Long

SKU: A0009274

Type: Machining Tool

$50.20

$50.20 ~~$71.71~~

Inc. GST

⚙Carbide Construction

⚙Sutton Imperial Flute Endmill

📐Multiple Sizes Available

🔩Precision Milling Operations

🏗Metalworking & Manufacturing

☑Australian Made Quality

Available

Product Highlights −

Description

For long-reach finish milling applications
