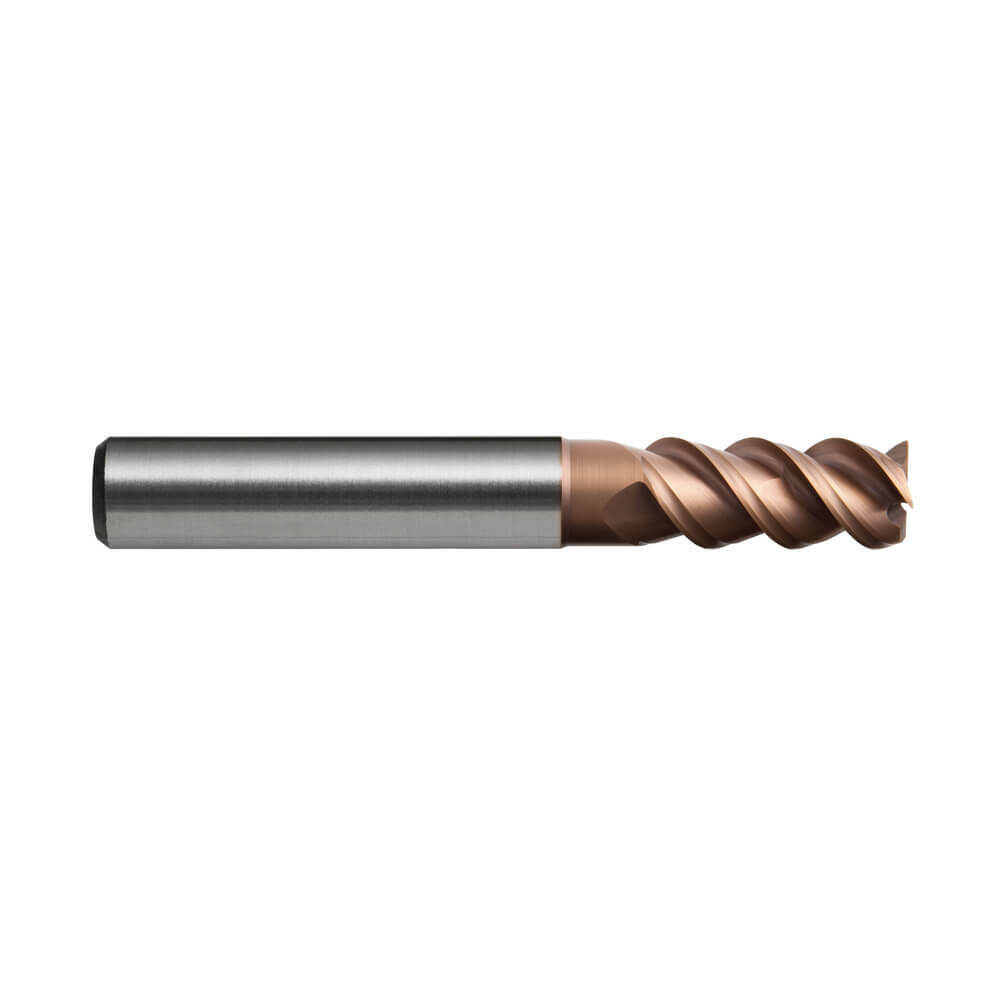

Sutton E410 Metric 3 Flute Endmill - Carbide VHM Ultra Helica Regular1

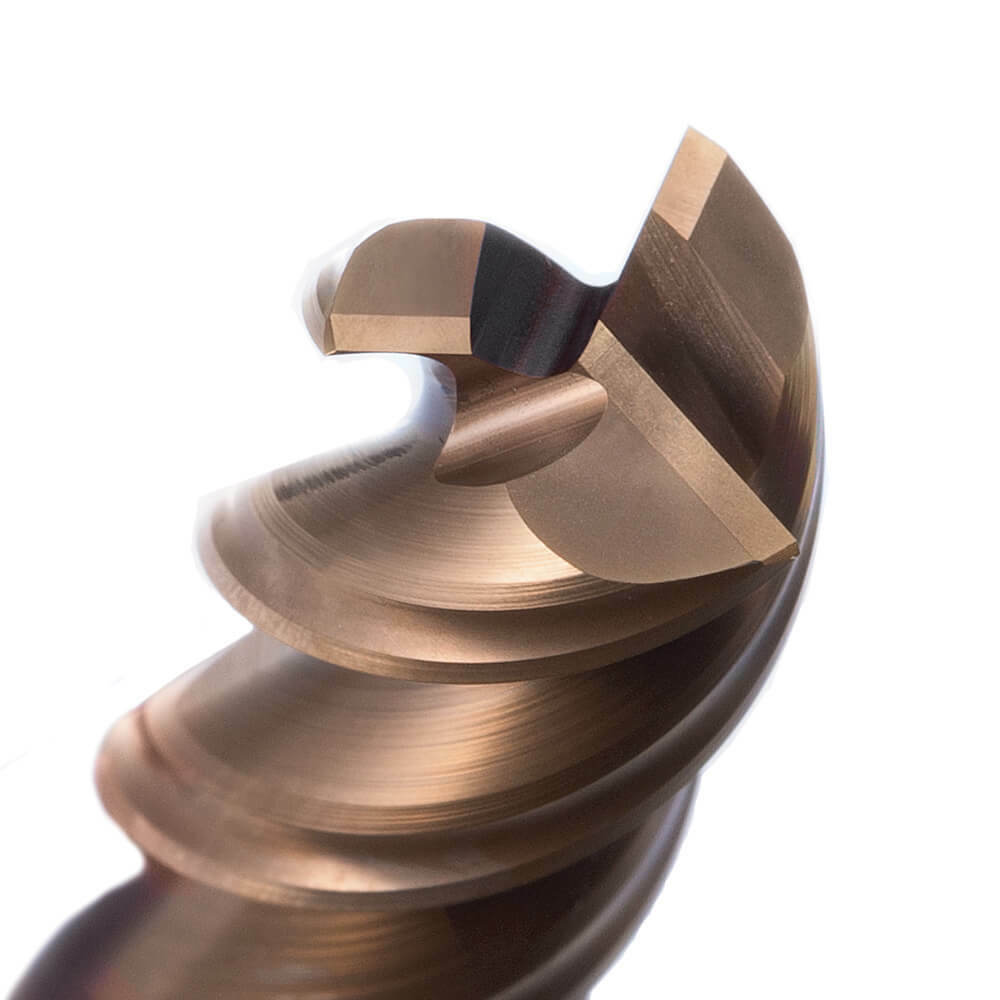

Sutton E410 Metric 3 Flute Endmill - Carbide VHM Ultra Helica Regular2

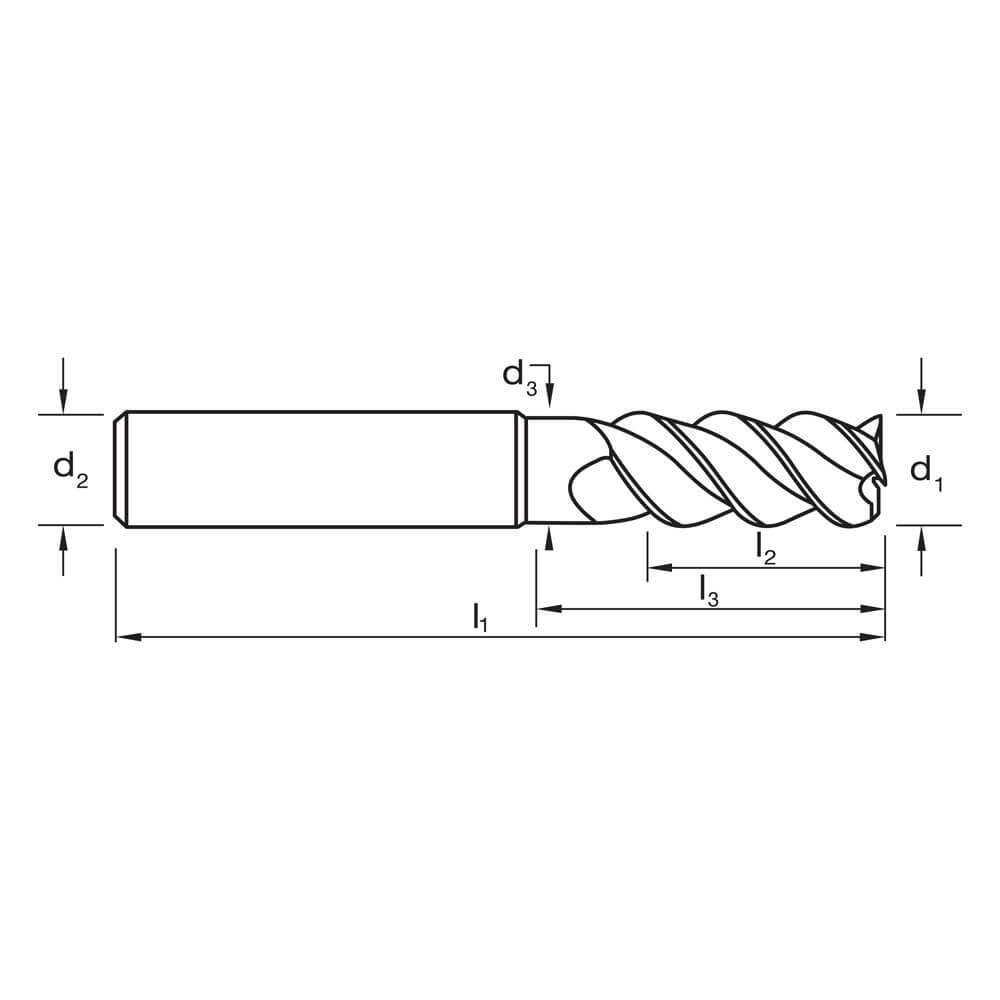

Sutton E410 Metric 3 Flute Endmill - Carbide VHM Ultra Helica Regular3

Sutton E4100300 3 x 6mm 3 Flute Endmill Carbide VHM Ultra Helica Regular

Sutton E4100400 4 x 6mm 3 Flute Endmill Carbide VHM Ultra Helica Regular

Sutton E4100500 5 x 6mm 3 Flute Endmill Carbide VHM Ultra Helica Regular

Sutton E4100600 6 x 6mm 3 Flute Endmill Carbide VHM Ultra Helica Regular

Sutton E4100800 8 x 8mm 3 Flute Endmill Carbide VHM Ultra Helica Regular

Sutton E4101000 10 x 10mm 3Flute Endmill Carbide VHM Ultra Helica Regular

Sutton E4101200 12 x 12mm 3Flute Endmill Carbide VHM Ultra Helica Regular

Sutton E4101400 14 x 14mm 3Flute Endmill Carbide VHM Ultra Helica Regular

Sutton E4101600 16 x 16mm 3Flute Endmill Carbide VHM Ultra Helica Regular

Sutton E4101800 18 x 18mm 3Flute Endmill Carbide VHM Ultra Helica Regular

Sutton E4102000 20 x 20mm 3Flute Endmill Carbide VHM Ultra Helica Regular

Description +

Descriptions

Optimized geometry for stainless steels
Universal use for slotting and finishing with the one tool

Specifications +

Specifications

Designation: VA
Material: VHM-ULTRA
Finish: Helica
Shank Form: HA
Helix Angle: R55/54/56
Point Tolerance: e8
Shank Tolerance: h5
Point Form: 45¬∞ Corner Chamfer
Type: N (finishing)
Rake Angle: 12
Standard: DIN6527L

Application +

Applications

Optimal for Stainless Steel ‚Äì Austenitic- 180 HB
Optimal for Stainless Steel ‚Äì Duplex- 250 HB
Optimal for Stainless Steel - Precipitation Hardening- 250 HB
Optimal for High temperature alloys - Fe based ‚Äì 280 HB
Optimal for High temperature alloys - Ni / Co based ‚Äì 350 HB
Optimal for High temperature alloys - Ni / Co based ‚Äì 320 HB
Optimal for Titanium & Titanium alloys - Alpha alloys
Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
Optimal for Titanium & Titanium alloys - Beta alloys

Features & Benefits +

Features

Endmill, 3 Flute, R55/54/56-VA, Long, Harmony for high performance
55/54/56¬∞ variable flute helix for chatter free milling
Helica for superior wear resistance in stainless steel

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E410 Metric 3 Flute Endmill - Carbide VHM Ultra Helica Regular

SKU: A0009392

$65.13

Inc. GST

Buy It Now

Available

The Sutton E410 Metric 3 Flute Endmill boasts optimised geometry for stainless steels. It offers a 55/54/56° variable flute helix for smooth milling and a Helica finish for enhanced wear resistance.
