Sutton E422 3mm Endmill 3 Flute - Carbide VHM Ultra - AlCrN - Stub
Available

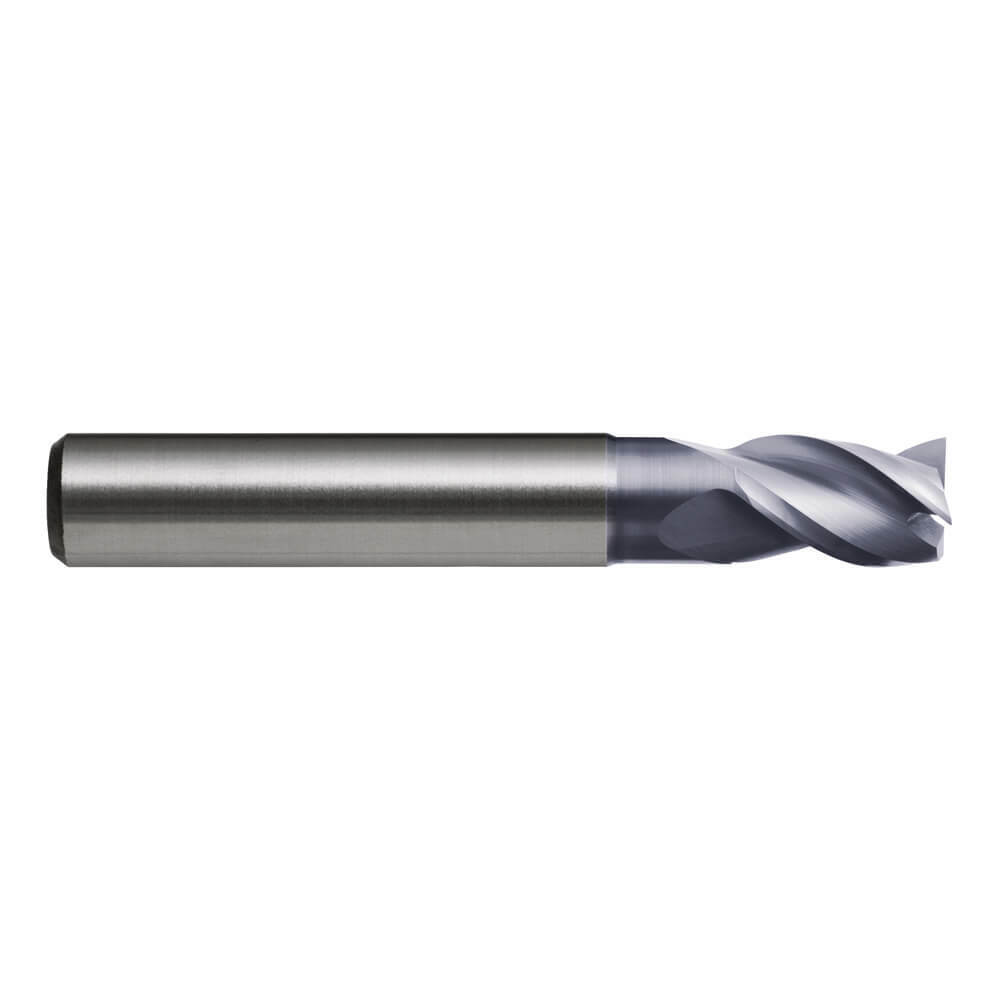

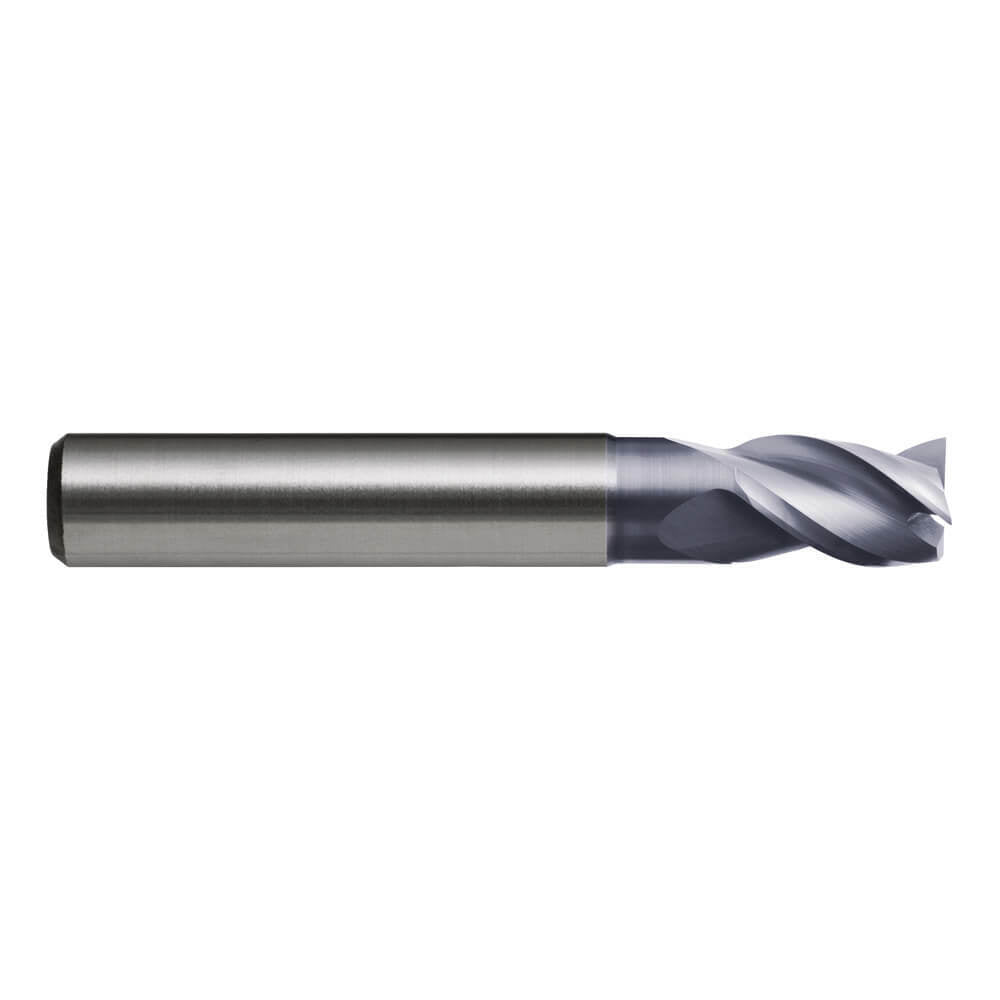

The Sutton E422 is a 3 flute endmill made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the stub length series. This listing covers 14 metric sizes from 3 mm to 20 mm.
The cutting edge has a 38/37/39° variable helix and the designation is UNI. The shank is a plain cylindrical shank (DIN 6535 form HA), with h5 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 K. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Slotting and finishing with one tool.
Design features
- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.

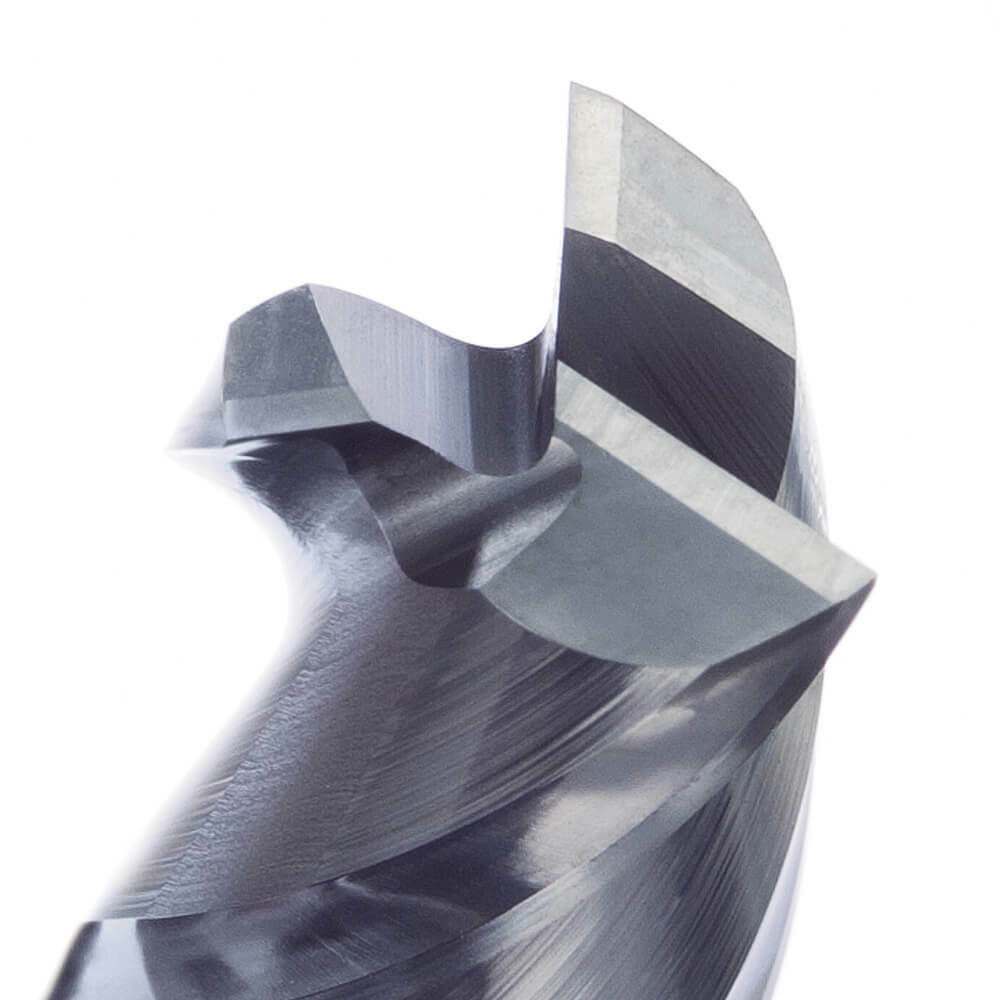

- 3 flutes, 38/37/39° variable helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) e8, shank h5.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

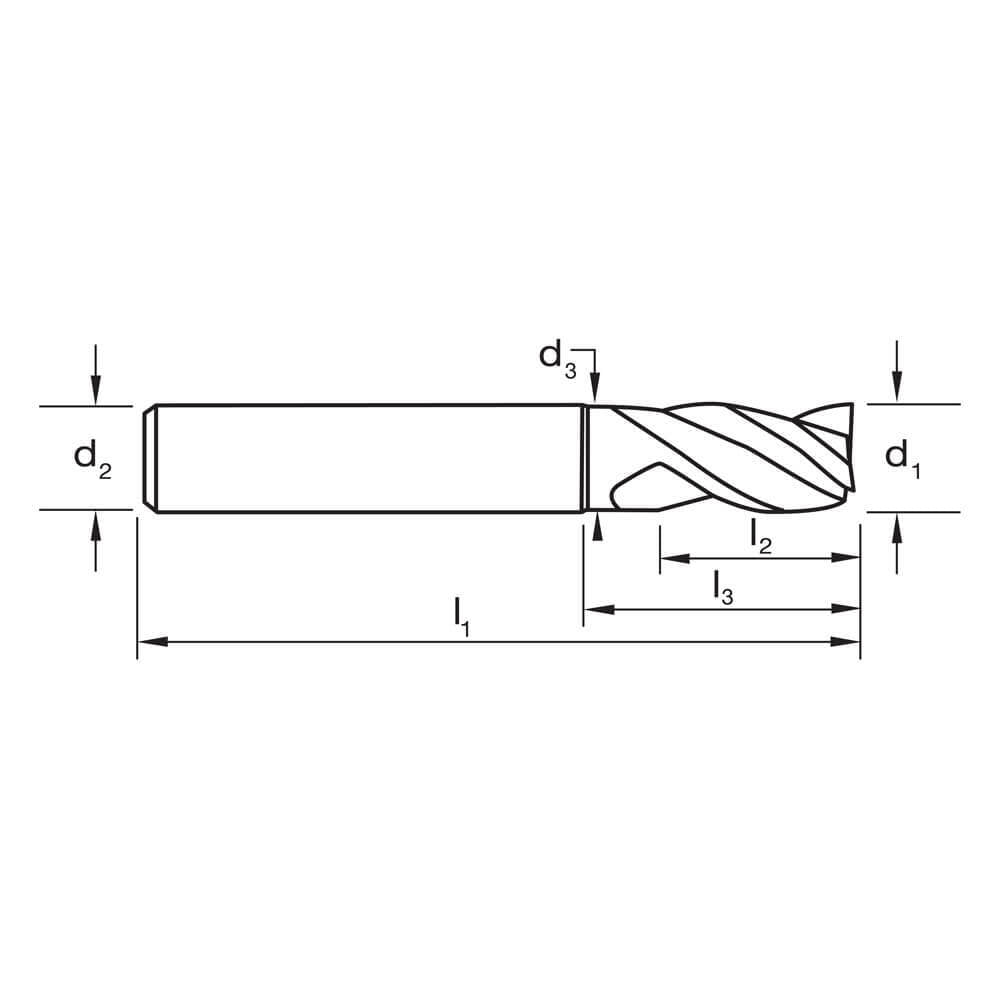

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes |
|---|---|---|---|---|---|---|---|
| E422 0300 | 3 | 50 | 5 | - | 6 | - | 3 |
| E422 0350 | 3.5 | 50 | 6 | - | 6 | - | 3 |
| E422 0400 | 4 | 54 | 8 | 13 | 6 | 3.8 | 3 |
| E422 0450 | 4.5 | 54 | 8 | 13 | 6 | 4.3 | 3 |
| E422 0500 | 5 | 54 | 9 | 15 | 6 | 4.8 | 3 |
| E422 0550 | 5.5 | 54 | 9 | 15 | 6 | 5.3 | 3 |
| E422 0600 | 6 | 54 | 10 | 16 | 6 | 5.7 | 3 |
| E422 0800 | 8 | 58 | 12 | 20 | 8 | 7.6 | 3 |
| E422 1000 | 10 | 66 | 14 | 24 | 10 | 9.5 | 3 |
| E422 1200 | 12 | 73 | 16 | 26 | 12 | 11.5 | 3 |
| E422 1400 | 14 | 73 | 16 | 26 | 14 | 13.5 | 3 |
| E422 1600 | 16 | 82 | 22 | 32 | 16 | 15.5 | 3 |
| E422 1800 | 18 | 82 | 22 | 32 | 18 | 17.5 | 3 |
| E422 2000 | 20 | 92 | 26 | 40 | 20 | 19.5 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E422 |
| Type | Endmill, 3 flute, stub length |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R38/37/39 |
| Designation | UNI |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h5 |
| Cutting length | DIN 6527 K |
| Sizes in this listing | 14 sizes, 3 to 20 mm |
