Sutton E447 6mm Roughing Endmill 3 Flute - Carbide VHM - Regular
Available
The Sutton E447 is a 3 flute roughing endmill made from solid carbide (VHM), with a bright finish. It is in the regular length series. This listing covers 6 metric sizes from 6 mm to 20 mm.
The cutting edge has a 25° helix with NR (normal) geometry and the designation is Al. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h5 shank tolerance and h10 cutting diameter tolerance. The cutting length is to DIN 6527 L.
Where this product is used

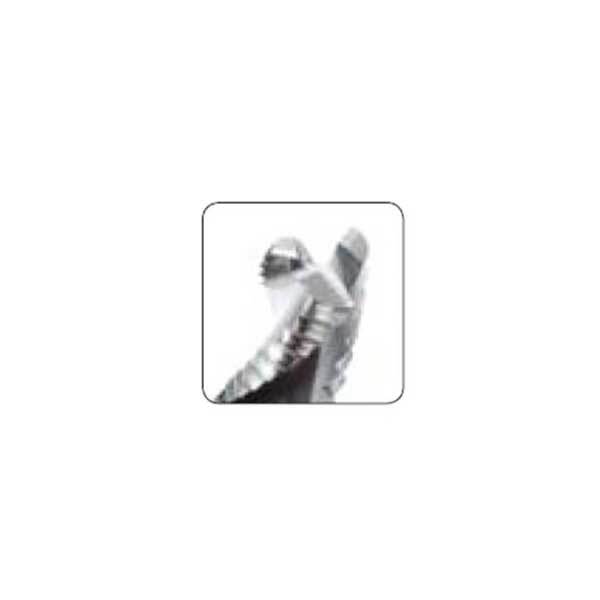

- Roughing, where the NR (normal) roughing geometry is used.
Design features
- Solid carbide (VHM) construction.
- Bright finish.
- 3 flutes, 25° helix with NR (normal) geometry.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: cutting diameter (d1) h10, shank h5.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

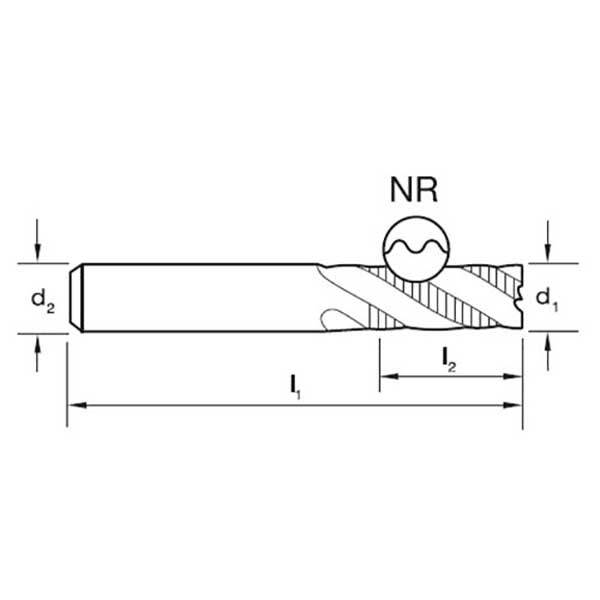

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E447 0600 | 6 | 57 | 13 | 6 | 3 |
| E447 0800 | 8 | 63 | 19 | 8 | 3 |
| E447 1000 | 10 | 72 | 22 | 10 | 3 |

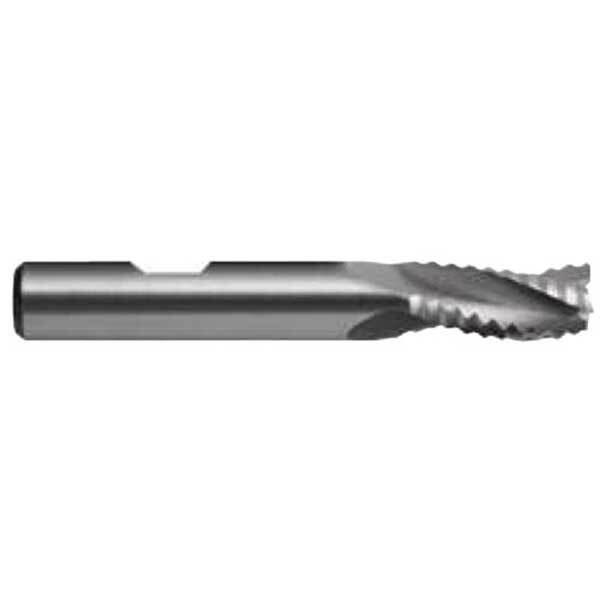

| E447 1200 | 12 | 83 | 26 | 12 | 3 |
| E447 1600 | 16 | 92 | 32 | 16 | 3 |
| E447 2000 | 20 | 104 | 38 | 20 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E447 |
| Type | Roughing Endmill, 3 flute, regular length |
| Material | solid carbide (VHM) |
| Finish | Bright |
| Helix / geometry | R25 NR |
| Designation | Al |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Cutting diameter tolerance (d1) | h10 |
| Shank tolerance | h5 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 6 sizes, 6 to 20 mm |
Related products
Related Sutton carbide roughing endmills: E446 metric roughing endmill (regular), plain shank, E450 20 mm roughing endmill (regular), TiAlN, plain shank, E451 20 mm roughing endmill (regular), TiAlN, Weldon flat shank.
