Sutton E458 4mm Chamfer Endmill 4 Flute - Carbide VHM - TiAlN
Regular price
$34.16
Sale price
$34.16
Regular price
$48.80
Inc. GST
Available

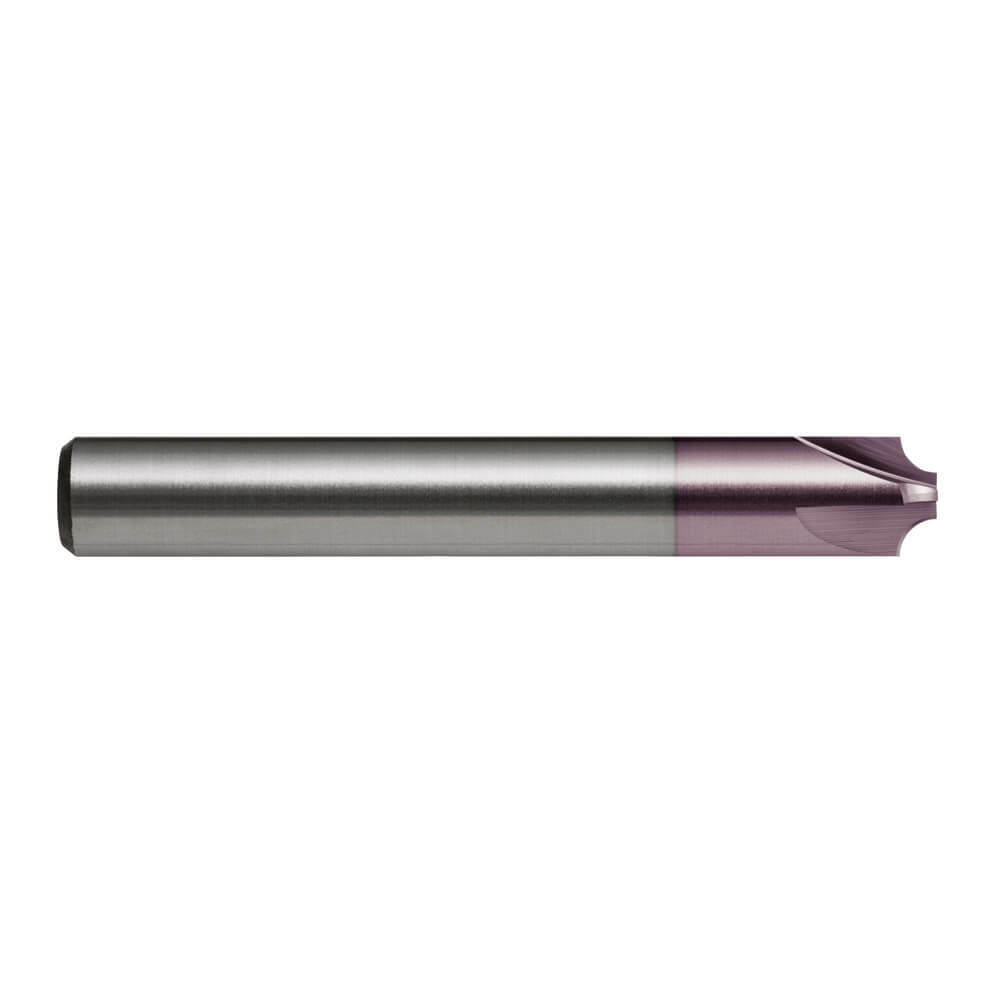

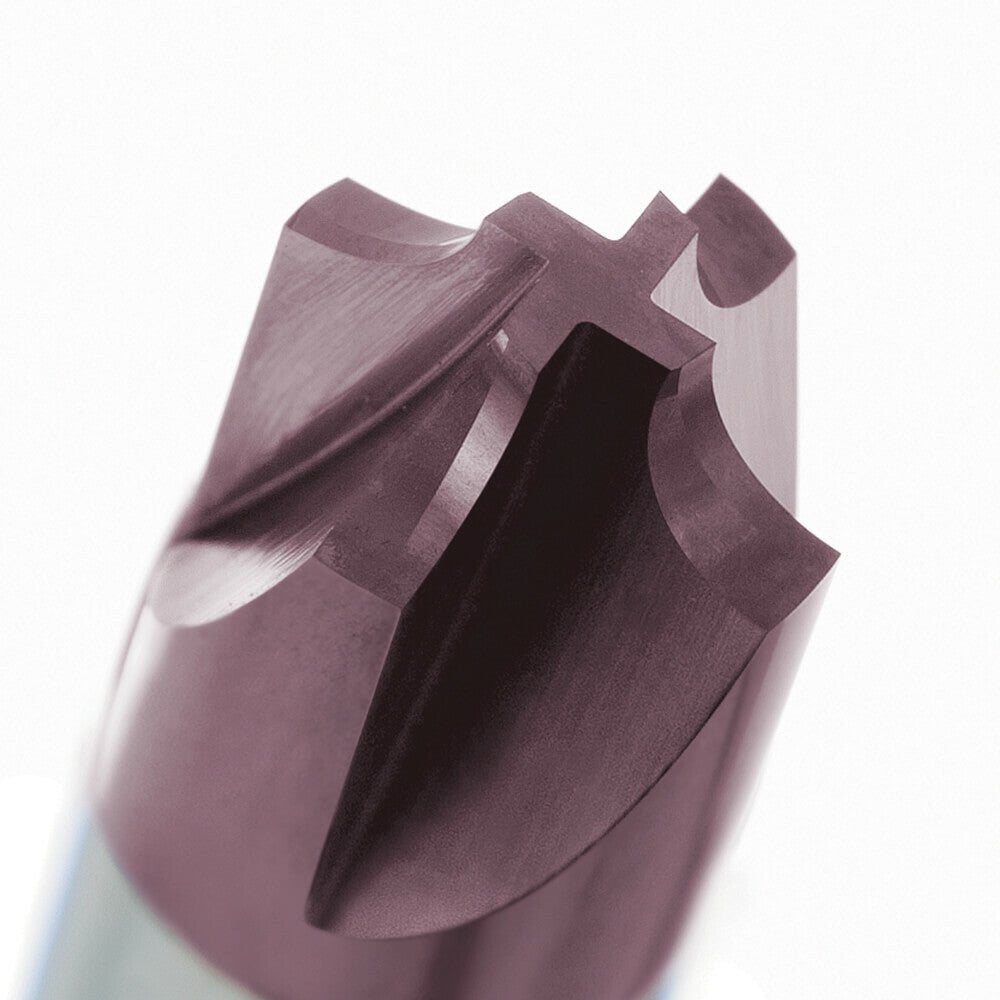

The Sutton E458 is a 4 flute chamfer endmill made from solid carbide (VHM), with a TiAlN coating. This listing covers 8 metric sizes from 4 mm to 5 mm.
The designation is N. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance.
Where this product is used
- Chamfer milling.
Design features
- Solid carbide (VHM) construction.
- TiAlN coating for longer tool life.
- 4 flutes.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: shank h6.
Sizes

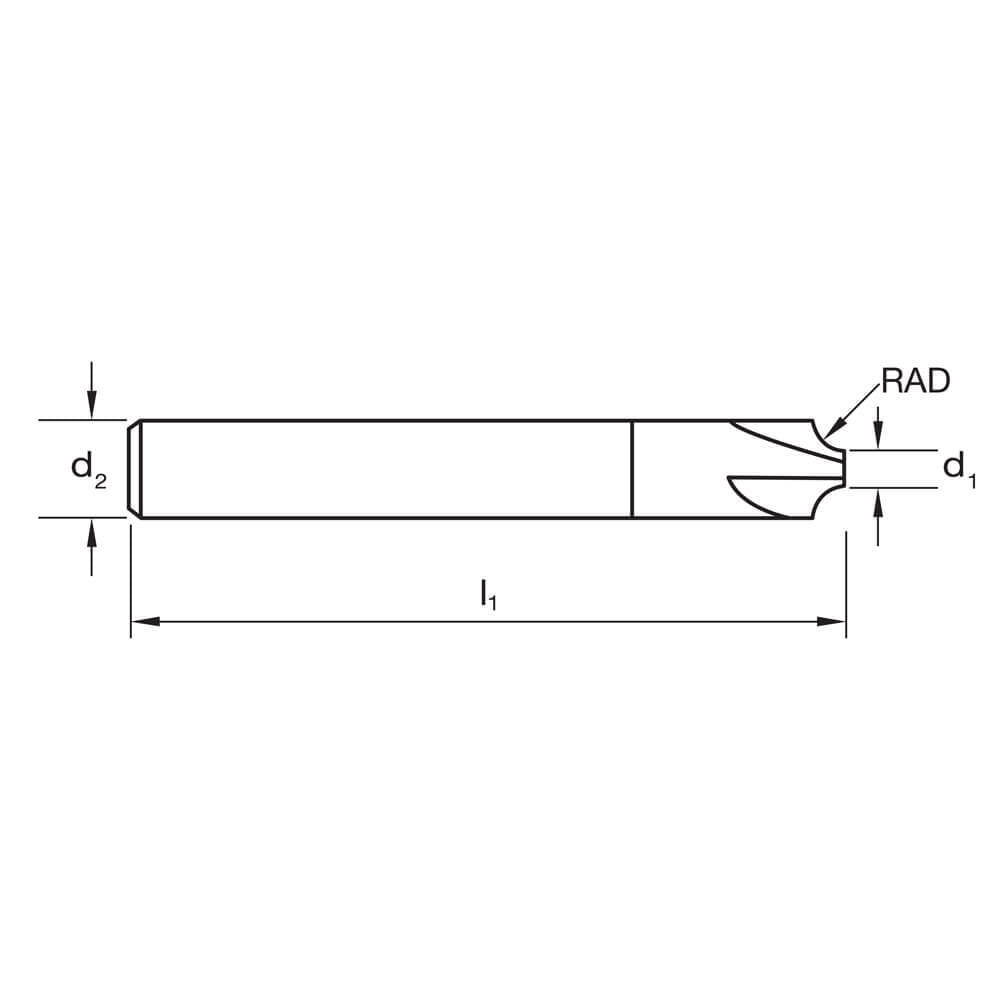

Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | d2 shank (mm) | Flutes | Corner radius (mm) |
|---|---|---|---|---|---|
| E458 0610 | 4 | 57 | 6 | 4 | 1 |
| E458 0820 | 4 | 63 | 8 | 4 | 2 |
| E458 1030 | 4 | 72 | 10 | 4 | 3 |
| E458 1240 | 4 | 83 | 12 | 4 | 4 |
| E458 0605 | 5 | 57 | 6 | 4 | 0.5 |
| E458 0815 | 5 | 63 | 8 | 4 | 1.5 |
| E458 1025 | 5 | 72 | 10 | 4 | 2.5 |
| E458 1235 | 5 | 83 | 12 | 4 | 3.5 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E458 |
| Type | Chamfer Endmill, 4 flute |
| Material | solid carbide (VHM) |
| Finish | TiAlN |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Shank tolerance | h6 |
| Sizes in this listing | 8 sizes, 4 to 5 mm |
