Description
Description
Description
- Universal use for slotting & finishing applications, with one tool
Specifications
Specifications
Specifications
- Designation: W
- Material: VHM
- Finish: AlCrN
- Shank Form: HA
- Helix Angle: R45
- Point Tolerance: e8
- Shank Tolerance: h6
- Point Form: Square End
- Type: N (finishing)
- Rake Angle: 12
- Standard: DIN6527L
Applications
Applications
Applications
- Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
- Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
- Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
- Optimal for Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable – 130 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) - 90 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB
Features & Benefits
Features & Benefits
Features
- Endmill, 3 Flute, R45 Al, Long
- Optimized geometry for soft materials
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

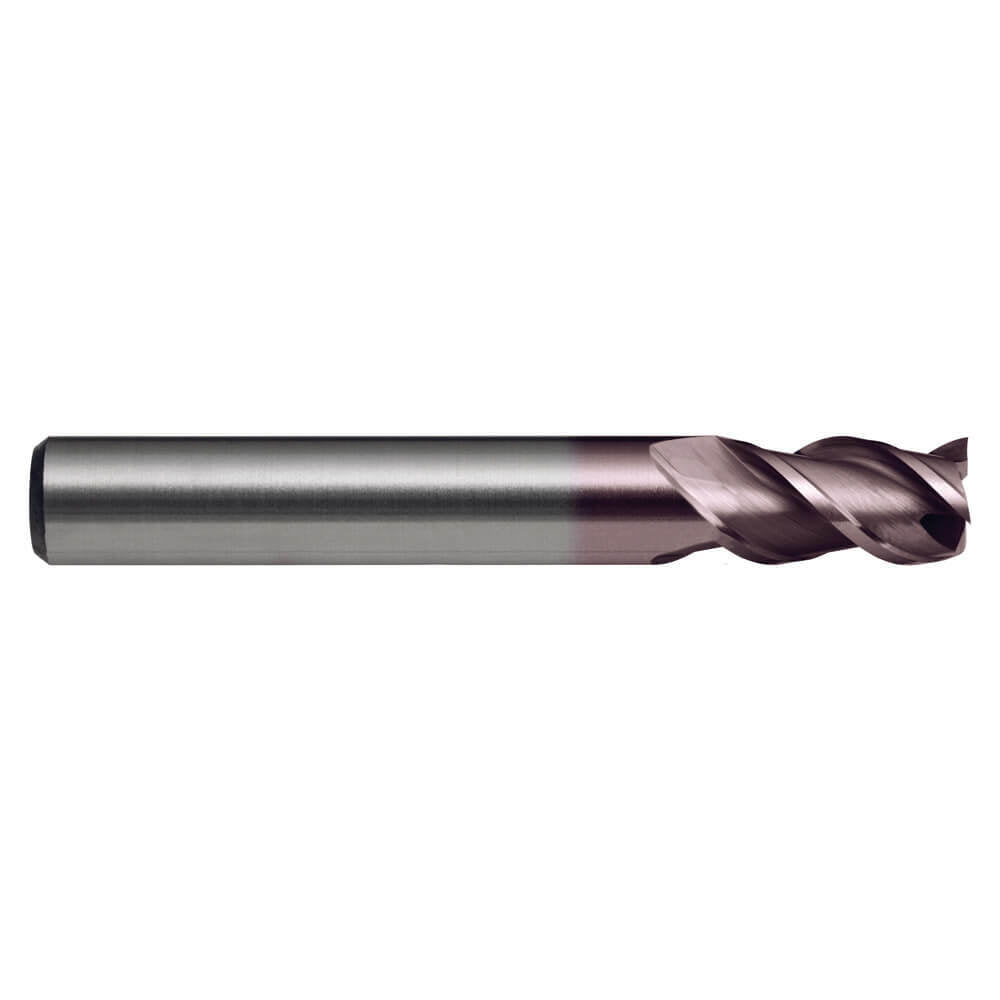

Sutton E523 Metric Long 3 Flute Endmill - Carbide VHM AlCrN - Regular
Sutton E523 Metric Long 3 Flute Endmill - Carbide VHM AlCrN - Regular
SKU: A0009745
- Wide Range
- Reliable Services
- Proven Trust
Available

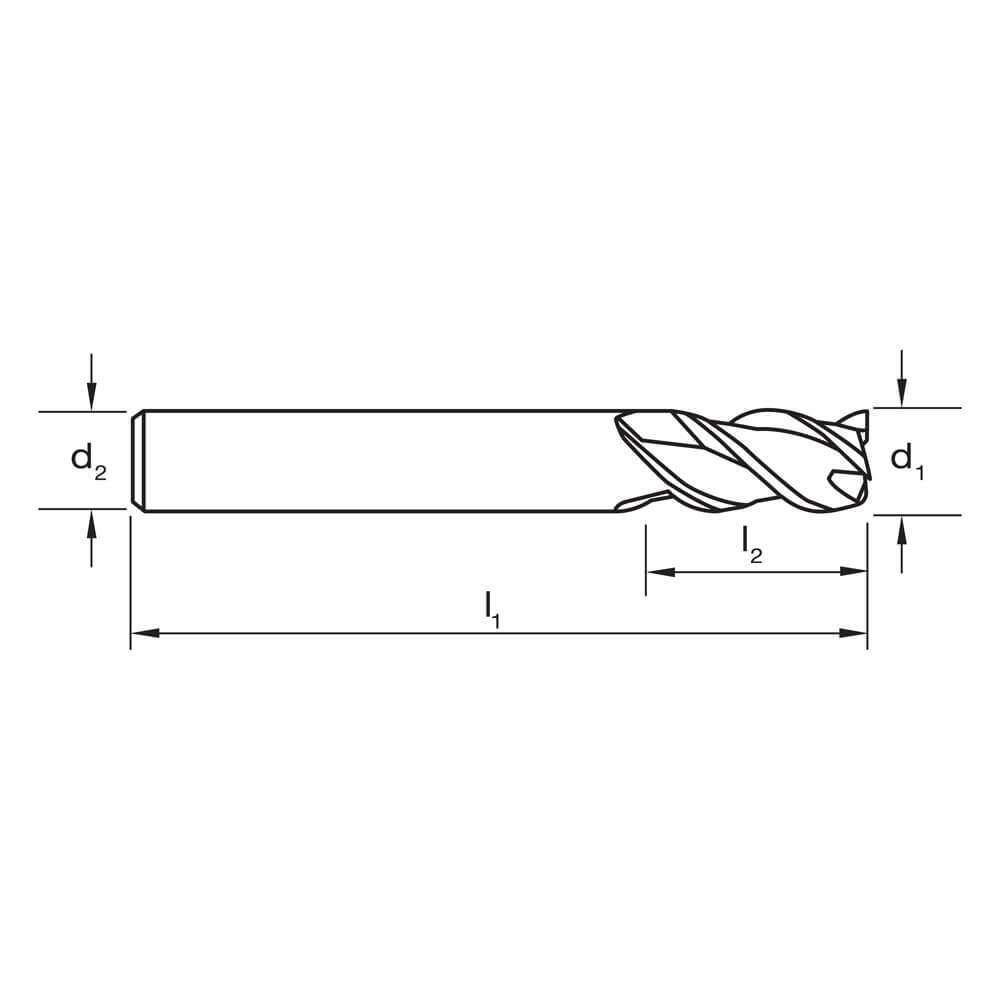

The Sutton E523 Metric Long 3 Flute Endmill excels in slotting and finishing tasks. Its optimised geometry suits soft materials, and it boasts a durable VHM finish. The tool's dimensions are precise, with d1 and d2 at 10mm, l1 at 72mm, and l2 at 19mm.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Description
- Universal use for slotting & finishing applications, with one tool
Specifications
Specifications
Specifications
- Designation: W
- Material: VHM
- Finish: AlCrN
- Shank Form: HA
- Helix Angle: R45
- Point Tolerance: e8
- Shank Tolerance: h6
- Point Form: Square End
- Type: N (finishing)
- Rake Angle: 12
- Standard: DIN6527L
Applications
Applications
Applications
- Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
- Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
- Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
- Optimal for Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable – 130 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) - 90 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB
Features & Benefits
Features & Benefits
Features
- Endmill, 3 Flute, R45 Al, Long
- Optimized geometry for soft materials
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton E523 Metric Long 3 Flute Endmill - Carbide VHM AlCrN - Regular
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton E523 Metric Long 3 Flute Endmill excels in slotting and finishing tasks. Its optimised geometry suits soft materials, and it boasts a durable VHM finish. The tool's dimensions are precise, with d1 and d2 at 10mm, l1 at 72mm, and l2 at 19mm. |
Regular price
From $36.58
Sale price
From $36.58
Regular price
Unit price
/per
| Sutton Tools |
Overall Length (mm)
57,63,72,83,92
Cutting Tip (mm)
4,5,6,8,10,12,16
|
Choose your option
Sutton E523 Metric Long 3 Flute Endmill - Carbide VHM AlCrN - Regular
Sutton E523 Metric Long 3 Flute Endmill - Carbide VHM AlCrN - Regular
SKU: A0009745
Hurry up, only 4 items left in stock.
The Sutton E523 Metric Long 3 Flute Endmill excels in slotting and finishing tasks. Its optimised geometry suits soft materials, and it boasts a durable VHM finish. The tool's dimensions are precise, with d1 and d2 at 10mm, l1 at 72mm, and l2 at 19mm.
