Description
Description
Description
- For profile & contour milling in long reach applications
Specifications
Specifications
Specifications
- Designation: UNI
- Material: VHM-ULTRA
- Finish: AlCrN
- Shank Form: HA
- Helix Angle: R30
- Point Tolerance: h10
- Shank Tolerance: h6
- Point Form: Ballnose
- Type: N (finishing)
- Rake Angle: 12
- Standard: Sutton
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
- Optimal for Steel - High alloy, cast & tool- 200 HB
- Optimal for Stainless Steel – Austenitic- 180 HB
- Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
- Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
- Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
- Optimal for Cast Iron, Nodular (GGG) - Pearlitic- 250 HB
- Optimal for Cast Iron, Malleable – Ferritic- 130 HB
- Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
- Optimal for Cast Iron – Chilled - 400 HB
Features & Benefits
Features & Benefits
Features
- VHM-ULTRA grade of carbide for high performance
- Suitable for materials up to 1600 N/mm2
- AlCrN for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

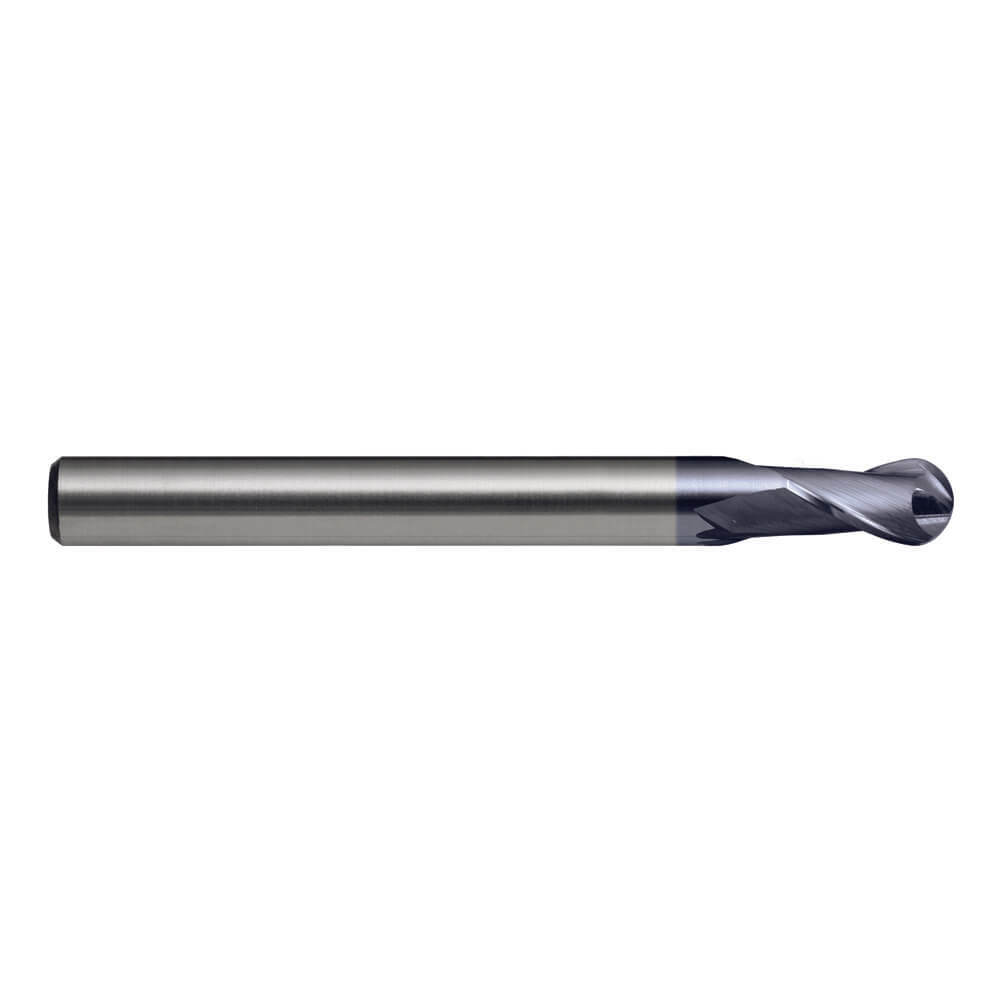

Sutton E555 Metric 2 Flute Ball Nose Slot Drill - VHM Ultra AlCrN Long
Sutton E555 Metric 2 Flute Ball Nose Slot Drill - VHM Ultra AlCrN Long
SKU: A0009817
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton E555 Metric 2 Flute Ball Nose Slot Drill excels in long reach profile and contour milling. Its VHM-ULTRA grade of carbide ensures high performance, handling materials up to 1600 N/mm2. An AlCrN finish enhances tool longevity.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Description
- For profile & contour milling in long reach applications
Specifications
Specifications
Specifications
- Designation: UNI
- Material: VHM-ULTRA
- Finish: AlCrN
- Shank Form: HA
- Helix Angle: R30
- Point Tolerance: h10
- Shank Tolerance: h6
- Point Form: Ballnose
- Type: N (finishing)
- Rake Angle: 12
- Standard: Sutton
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
- Optimal for Steel - High alloy, cast & tool- 200 HB
- Optimal for Stainless Steel – Austenitic- 180 HB
- Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
- Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
- Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
- Optimal for Cast Iron, Nodular (GGG) - Pearlitic- 250 HB
- Optimal for Cast Iron, Malleable – Ferritic- 130 HB
- Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
- Optimal for Cast Iron – Chilled - 400 HB
Features & Benefits
Features & Benefits
Features
- VHM-ULTRA grade of carbide for high performance
- Suitable for materials up to 1600 N/mm2
- AlCrN for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton E555 Metric 2 Flute Ball Nose Slot Drill - VHM Ultra AlCrN Long
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton E555 Metric 2 Flute Ball Nose Slot Drill excels in long reach profile and contour milling. Its VHM-ULTRA grade of carbide ensures high performance, handling materials up to 1600 N/mm2. An AlCrN finish enhances tool longevity. |
Regular price
From $34.56
Sale price
From $34.56
Regular price
Unit price
/per
| Sutton Tools |
Overall Length (mm)
50,60,70,80,90,100,110
Cutting Tip (mm)
2,3,4,5,6,8,10,12
|
Choose your option
Sutton E555 Metric 2 Flute Ball Nose Slot Drill - VHM Ultra AlCrN Long
Sutton E555 Metric 2 Flute Ball Nose Slot Drill - VHM Ultra AlCrN Long
SKU: A0009817
Hurry up, only 14 items left in stock.
The Sutton E555 Metric 2 Flute Ball Nose Slot Drill excels in long reach profile and contour milling. Its VHM-ULTRA grade of carbide ensures high performance, handling materials up to 1600 N/mm2. An AlCrN finish enhances tool longevity.
