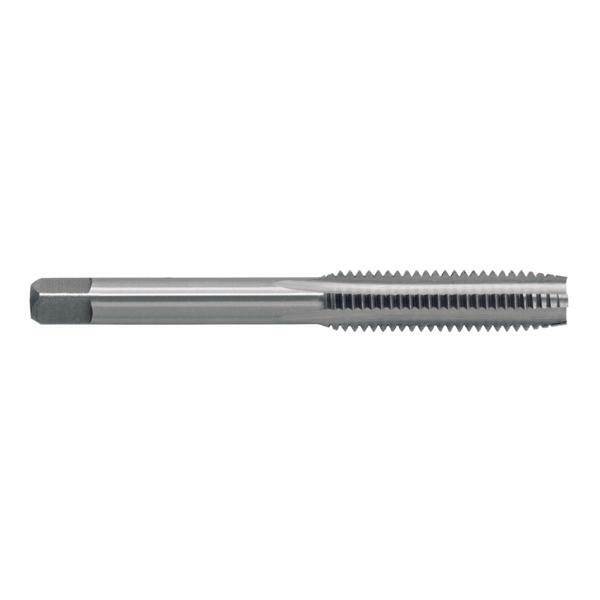

Sutton M2191905 UNC 3/4-10 Hand Tap Set (Taper/Interm/Bottom) TCA
Sutton M2192223 UNC 7/8-9 Hand Tap Set (Taper/Interm/Bottom) TCA
Sutton M2192540 UNC 1-8 Hand Tap Set (Taper/Interm/Bottom) TCA
Sutton M219 UNC Hand Tap Set (Taper/Interm/Bottoming) Tungsten Chrome1
Sutton M219 UNC Hand Tap Set (Taper/Interm/Bottoming) Tungsten Chrome2
Sutton M2190635 UNC 1/4-20 Hand Tap Set (Taper/Interm/Bottom) TCA
Sutton M2190794 UNC 5/16-18 Hand Tap Set (Taper/Interm/Bottom) TCA
Sutton M2190953 UNC 3/8-16 Hand Tap Set (Taper/Interm/Bottom) TCA
Sutton M2191111 UNC 7/16-14 Hand Tap Set (Taper/Interm/Bottom) TCA
Sutton M2191270 UNC 1/2-13 Hand Tap Set (Taper/Interm/Bottom) TCA
Sutton M2191429 UNC 9/16-12 Hand Tap Set (Taper/Interm/Bottom) TCA
Sutton M2191588 UNC 5/8-11 Hand Tap Set (Taper/Interm/Bottom) TCA
Sutton M2191905 UNC 3/4-10 Hand Tap Set (Taper/Interm/Bottom) TCA
Sutton M2192223 UNC 7/8-9 Hand Tap Set (Taper/Interm/Bottom) TCA
Sutton M2192540 UNC 1-8 Hand Tap Set (Taper/Interm/Bottom) TCA

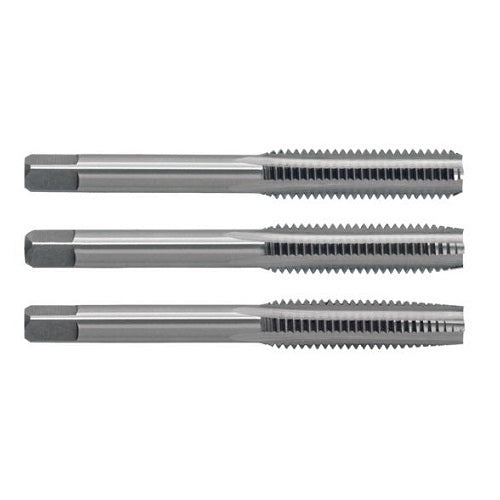

Sutton M219 UNC Hand Tap Set (Taper/Interm/Bottoming) Tungsten Chrome

Sutton M219 UNC Hand Tap Set (Taper/Interm/Bottoming) Tungsten Chrome

SKU: A0011177

$200.75
$200.75
Inc. GST

Available

The Sutton M219 UNC Hand Tap Set (Taper/Interm/Bottoming) Tungsten Chrome by Sutton Tools is a 0 made from Tungsten Chrome Alloy. It offers a Max Cut Depth of 1.5xD and is suitable for machining.
Buy Now

Resources

Descriptions

  • Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.

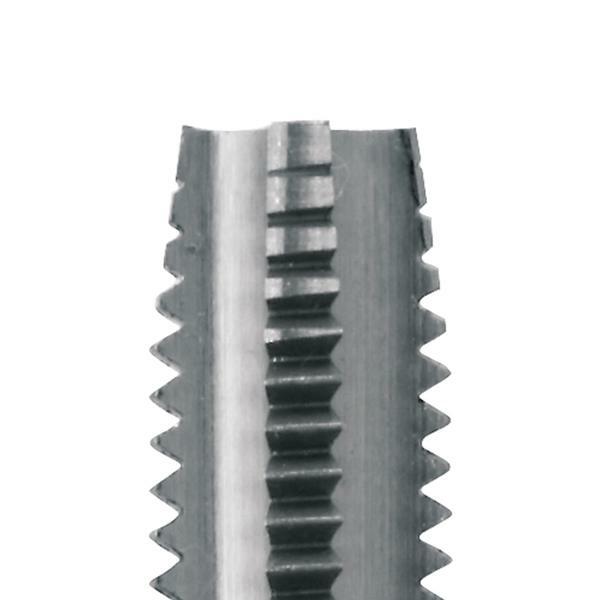

  • Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
  • Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Tungsten Chrome Alloy (TCA)
  • Finish: Bright
  • Max Cut Depth: 1.5xD
  • Shank Form: Square Shank
  • X: als
  • Type: Straight Flute
  • Thread Form: UNC
  • Lead: Set

Features

  • Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
  • Intermediate lead: used after a taper lead tap and are suitable for through holes or blind holes where the thread does not need to go right to the bottom of the hole
  • Square shank for use with a suitable tap wrench to drive the tap
  • Made from tungsten chrome alloy
  • Bright finish for general purpose applications, non-ferrous metals & plastics
