Sutton M3010632 1/4" x 2-1/2" Square M2 HSS Tool Bit
Available
The Sutton M301 is a square M2 HSS tool bit range in 6 sizes from 3/16" to 5/8", in 2-1/2" to 4-1/2" lengths. They are made from M2 high speed steel (HSS) and have a bright finish.
Recommended for turning or machining of low-alloy and free-machining steels and most non-ferrous materials. The square section is ground to the shape and used as a cutting tool for turning and machining. Sizes are quoted in inches, with metric equivalents in the size table.
Where this product is used
- Turning and machining on a lathe or similar machine, in a tool holder.
- Recommended for turning or machining of low-alloy and free-machining steels and most non-ferrous materials.
- Applications include trade, industrial, metalworking, machine shop and MRO work.
Design features
- Square section tool bit in M2 high speed steel (HSS).
- Bright finish.
- 6 sizes, 3/16" to 5/8", lengths 2-1/2" to 4-1/2".
- Recommended for turning or machining of low-alloy and free-machining steels and most non-ferrous materials.
Sizes and item numbers
Each size is a single tool bit unless the pack quantity shows otherwise.
| Size (inch) | Size (mm) | Length (inch) | Length (mm) | Pack qty | Sutton item no. |
|---|---|---|---|---|---|
| 3/16" | 4.76 | 2-1/2" | 63.5 | 1 | M301 0472 |
| 1/4" | 6.35 | 2-1/2" | 63.5 | 1 | M301 0632 |
| 5/16" | 7.94 | 2-1/2" | 63.5 | 1 | M301 0792 |

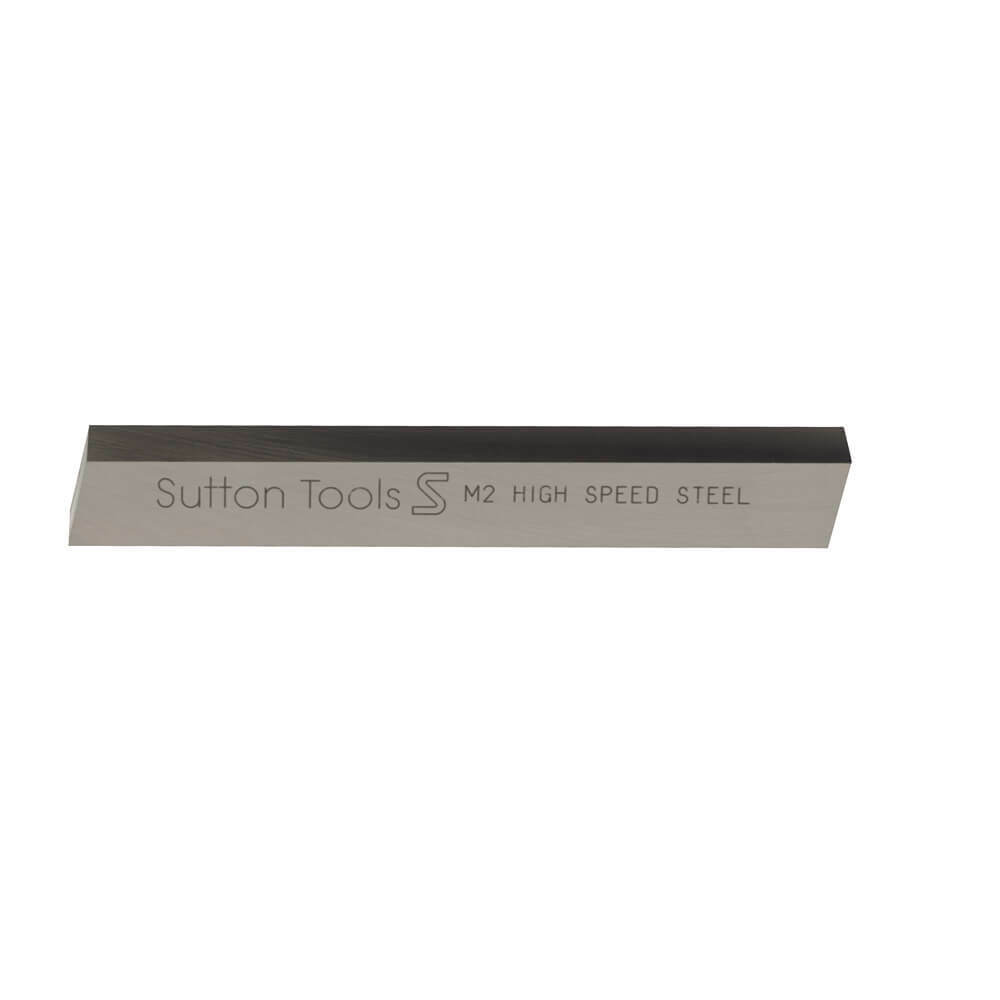

| 3/8" | 9.52 | 3" | 76.2 | 1 | M301 0953 |
| 1/2" | 12.7 | 4" | 101.6 | 1 | M301 1274 |
| 5/8" | 15.88 | 4-1/2" | 114.3 | 1 | M301 1584 |
Using the tool bits
- Choose the size that fits the tool holder or toolpost slot, with the cutting end clear of the holder.
- Grind the cutting geometry to suit the material being turned.
- Keep the overhang from the holder as short as the job allows.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | M301 |
| Type | Square tool bit for turning and machining |
| Sizes | 6 sizes, 3/16" to 5/8" |
| Lengths | 2-1/2" to 4-1/2" |
| Material | M2 high speed steel (HSS) |
| Surface finish | Bright |
| Geometry | Square |
Related products
Other Sutton tool bits: M300 round tool bits and M302 square tool bits and M3041584 bevel tool bit.
