Sutton M4453810 1-1/2"-6 UNC Hexagon Die Nut, 70 mm AF - Carbon Alloy Steel
Available

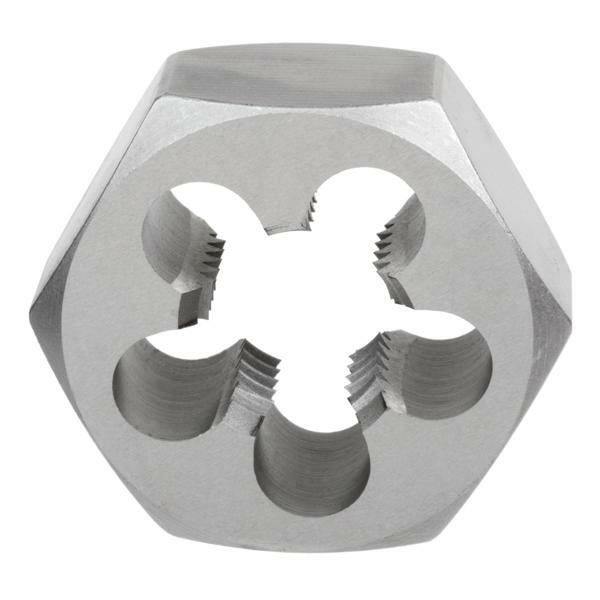

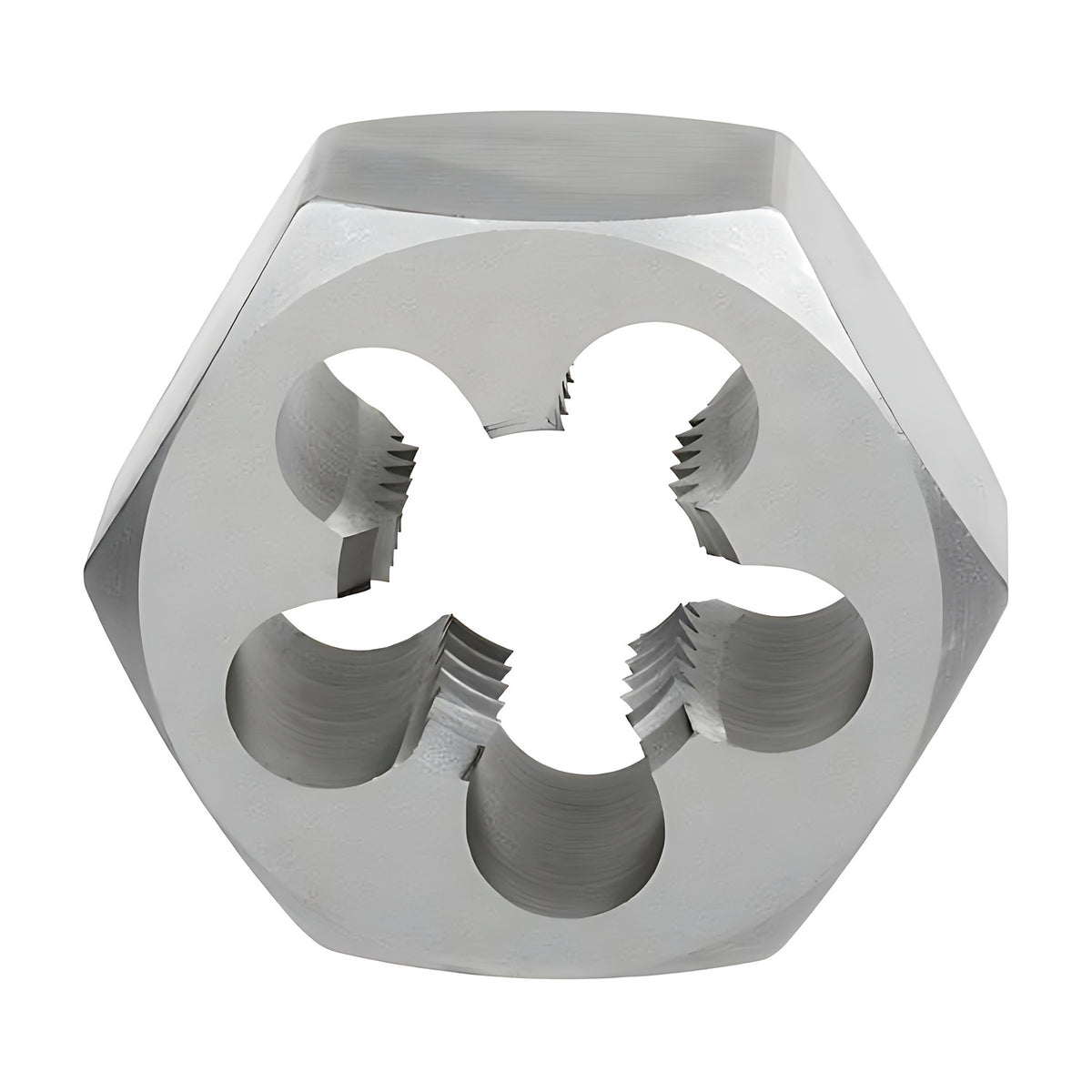

The Sutton M445 is a carbon alloy steel hexagon die nut for cleaning and resizing existing damaged UNC (Unified National Coarse) threads. It comes in 13 sizes, 1/4" to 1-1/2", with hex sizes from 18 to 70 mm AF, and can be turned with a wrench or socket where space is limited.
The hexagon die is best suited for maintenance and repair work. Because the die can be used with a wrench or socket, it works in limited space. Carbon alloy steel threading tools are not suitable for precision, safety or critical threads: they are for general purpose and DIY use only. Applications include DIY, trade, automotive, plumbing, metalworking and MRO work.
Where this product is used
- Cleaning and resizing existing damaged UNC threads.
- Maintenance and repair work.
- Threading in limited space with a wrench or socket.
- General purpose and DIY work where a precision thread is not required.
- Applications include DIY, trade, automotive, plumbing, metalworking and MRO work.
Design features
- Hexagon die: best suited for maintenance and repair work.
- Limited space: the die can be used with a wrench or socket.
- Designed for cleaning and resizing existing damaged threads.
- Carbon alloy steel: suitable for general purpose and DIY use only.
Sizes and item numbers
Hex size is across flats (AF): use a wrench or socket of the same size.
| Size | TPI | Hex (AF mm) | Pack | Sutton item no. |
|---|---|---|---|---|
| 1/4" | 20 | 18 | Blister pack | M445 0635 |
| 5/16" | 18 | 21 | Blister pack | M445 0794 |
| 3/8" | 16 | 23.5 | Blister pack | M445 0953 |
| 7/16" | 14 | 25.5 | Blister pack | M445 1111 |
| 1/2" | 13 | 28 | Blister pack | M445 1270 |
| 9/16" | 12 | 33 | Blister pack | M445 1429 |
| 5/8" | 11 | 33 | Blister pack | M445 1588 |
| 3/4" | 10 | 37.5 | Blister pack | M445 1905 |
| 7/8" | 9 | 42.5 | Box | M445 2223 |
| 1" | 8 | 52 | Box | M445 2540 |
| 1-1/8" | 7 | 56.5 | Box | M445 2858 |
| 1-1/4" | 7 | 56.5 | Box | M445 3175 |
| 1-1/2" | 6 | 70 | Box | M445 3810 |
Using the die nut
- Clean dirt and rust from the damaged thread before starting.
- Start the die square on the thread, turning forward and backing off regularly to break the chip.
- Use a cutting fluid suited to the material being threaded.
- Die nuts are designed to clean and resize existing threads. For a new thread on plain stock, use a button die from the threading dies and sets range.
- Use for general purpose and DIY threads only.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | M445 |
| Thread form | UNC (Unified National Coarse) |
| Sizes | 13 sizes, 1/4" to 1-1/2" |
| Hex size | 18 to 70 mm AF |
| Material | Carbon Alloy Steel |
| Die form | Hexagon die nut |
| Pack | Blister pack (to 3/4"), box (7/8" and larger) |
Related products
Related Sutton threading tools: M446 UNF hexagon die nuts and M454 SDN3 10 piece UNC die nut set. Browse threading dies and sets and threading tools.
