Sutton M454 SDN4 UNF Die Nut Set, 10 Piece - Carbon Alloy Steel
Available
The Sutton M454 SDN4 is a 10 piece UNF (Unified National Fine) die nut set in a metal case: 10 hexagon die nuts from 1/4" to 1", for cleaning and resizing existing damaged threads.
Made from carbon alloy steel. Carbon alloy steel threading tools are not suitable for precision, safety or critical threads: they are for general purpose and DIY use only. The hexagon dies are best suited for maintenance and repair work and can be used with a wrench or socket in limited space. The solid metal case suits storage and transportation, its slim line design fits a tool chest, drawers or work bench, and the layout chart quickly identifies the location of each item.
Where this product is used
- Cleaning and resizing existing damaged UNF threads.
- Maintenance and repair work.
- Threading in limited space with a wrench or socket.
- General purpose and DIY work where a precision thread is not required.
Design features

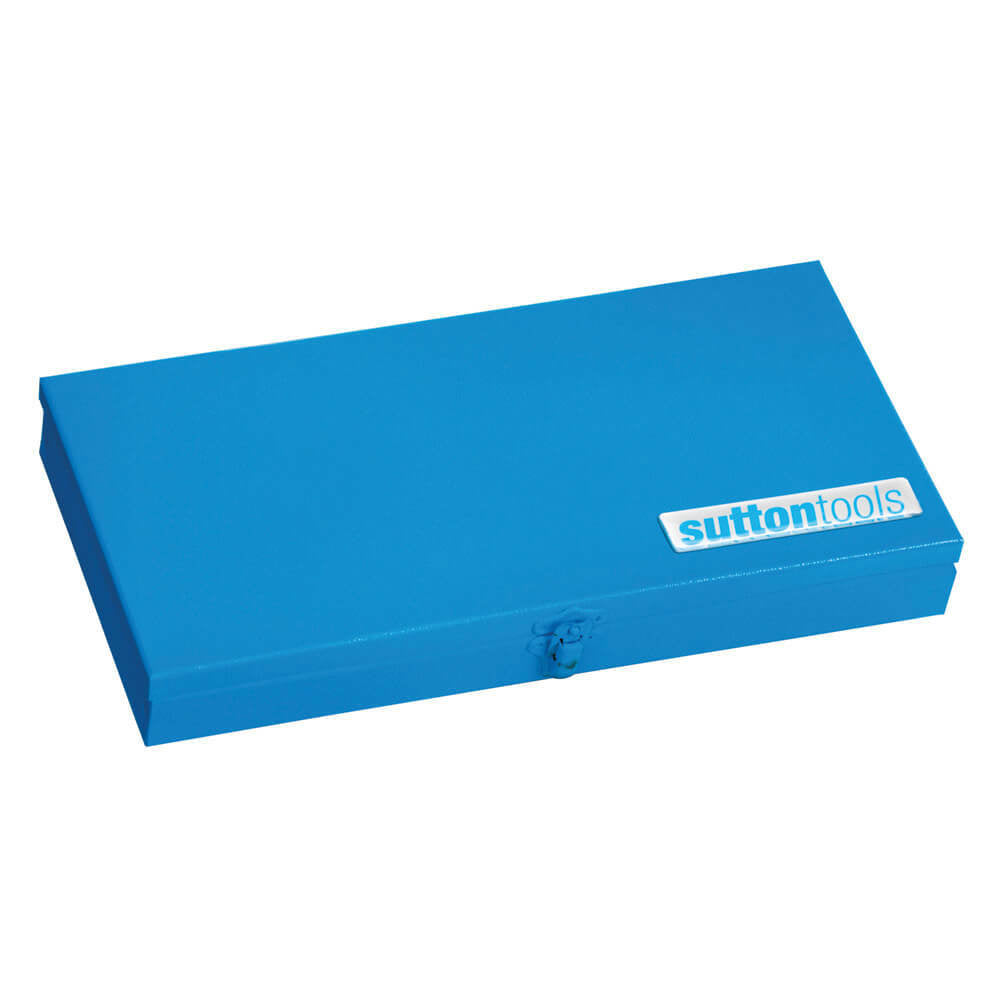

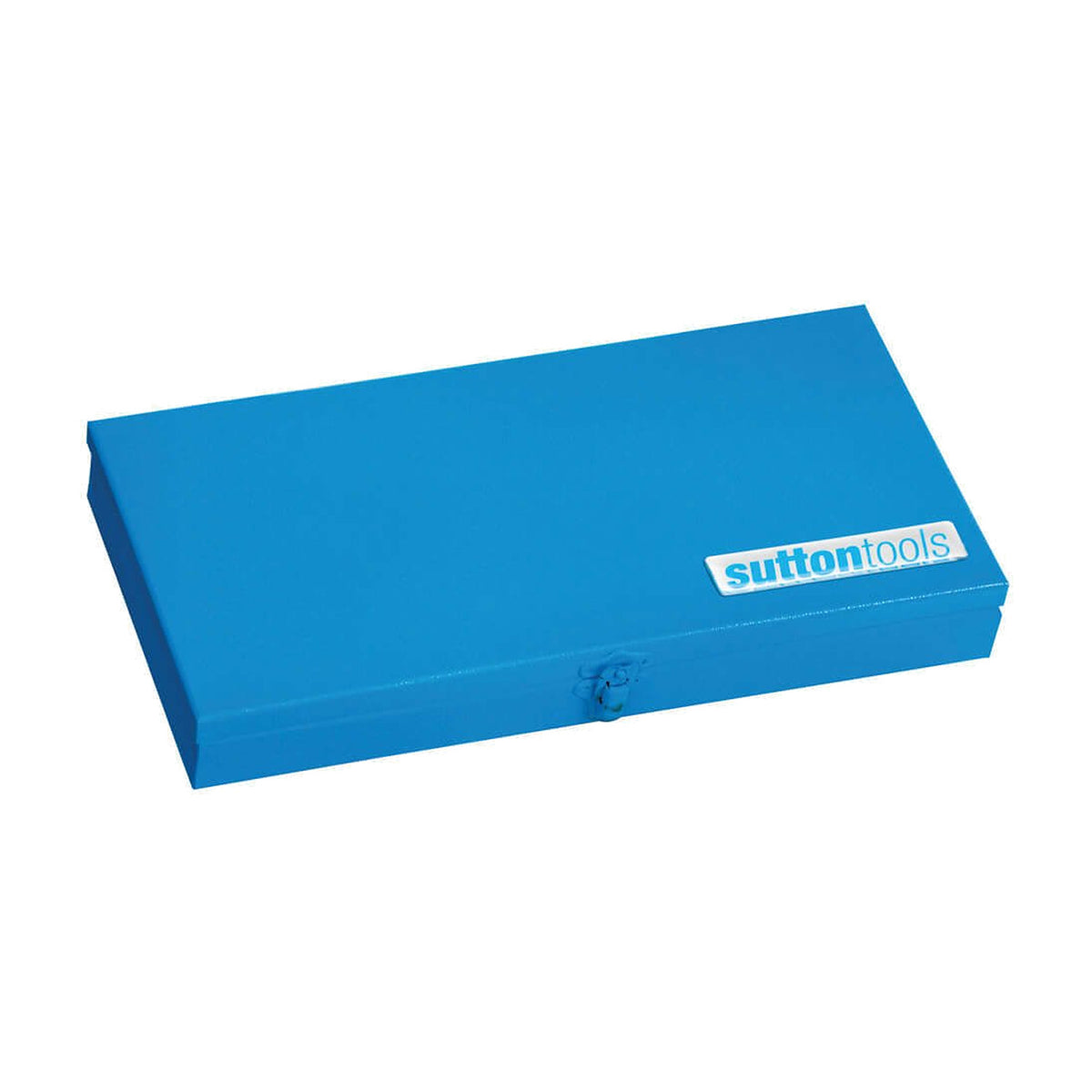

- Metal case: solid construction, ideal for storage and transportation of your tools.
- Slim line design: fits comfortably into a tool chest, drawers and work bench.
- Layout chart: quickly and easily identifies the location of items.
- Hexagon dies: best suited for maintenance and repair work, and usable with a wrench or socket in limited space.
- Carbon alloy steel: suitable for general purpose and DIY use only.

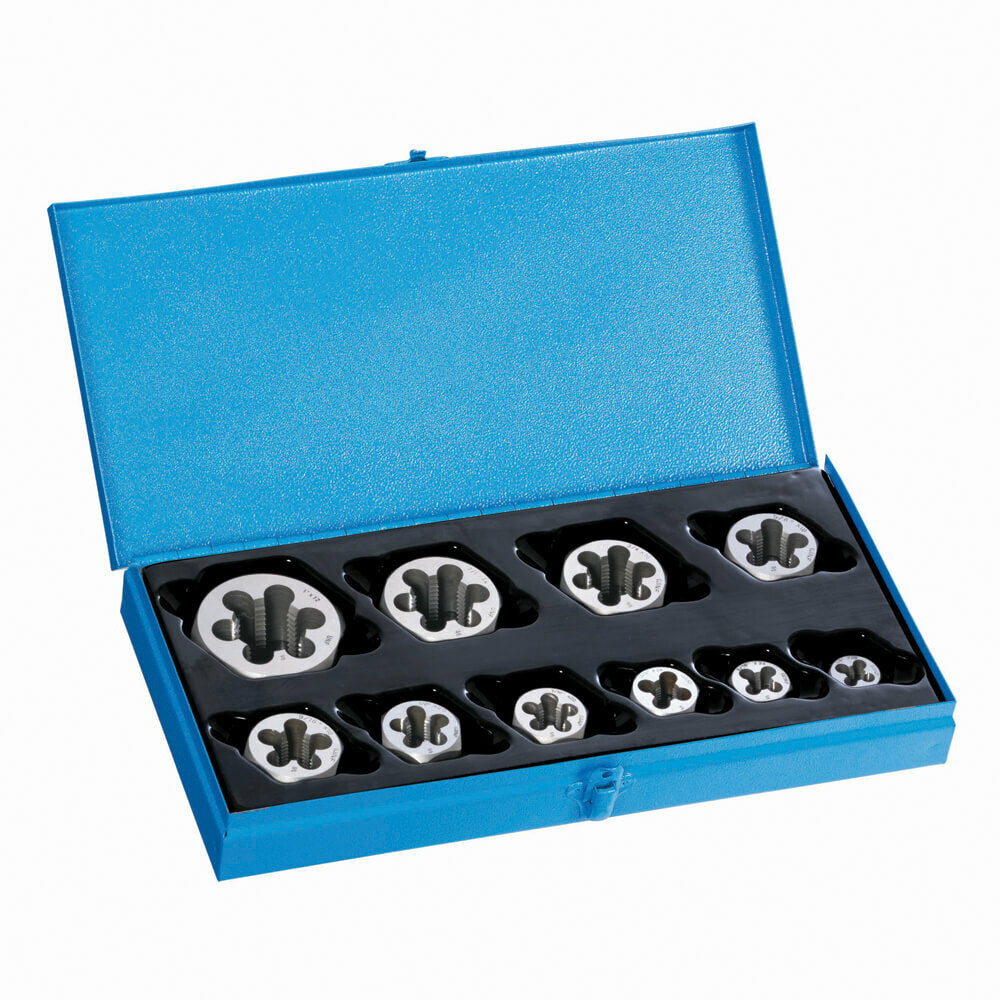

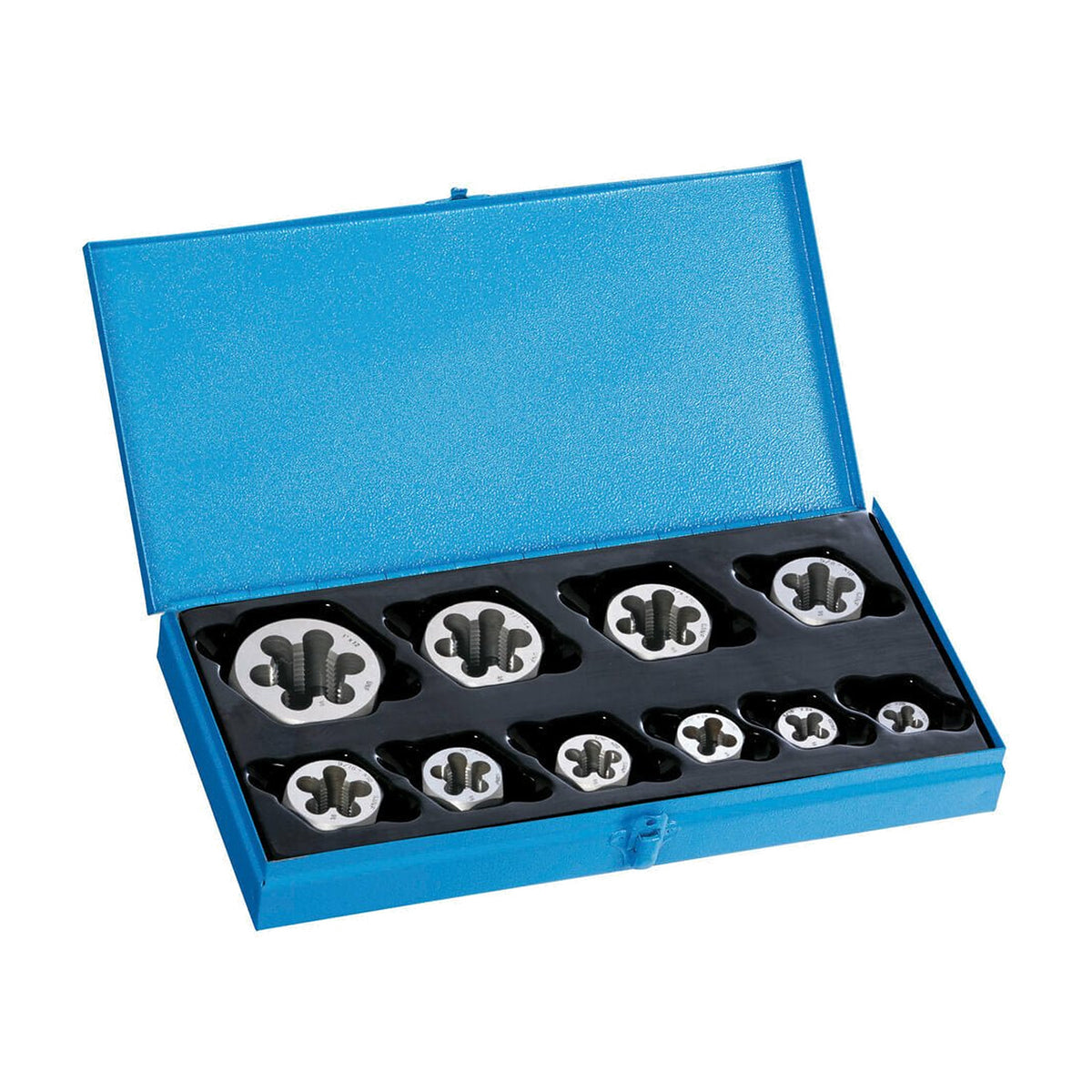

Set contents
The set has 10 UNF die nuts. Sizes and threads per inch are listed below.
| No. | Size | TPI |
|---|---|---|
| 1 | 1/4 | 28 |
| 2 | 5/16 | 24 |
| 3 | 3/8 | 24 |
| 4 | 7/16 | 20 |
| 5 | 1/2 | 20 |
| 6 | 9/16 | 18 |
| 7 | 5/8 | 18 |
| 8 | 3/4 | 16 |
| 9 | 7/8 | 14 |
| 10 | 1" | 12 |
Using the die nuts
- Clean dirt and rust from the damaged thread, then choose the die nut that matches the thread size and TPI.
- Start the die square on the thread, turning forward and backing off regularly to break the chip.
- Use a cutting fluid suited to the material being threaded.
- Die nuts are designed to clean and resize existing threads. For a new thread on plain stock, use a button die from the threading dies and sets range.
- Use for general purpose and DIY threads only.
Key specifications
| Specification | Detail |
|---|---|
| Item number | M454 SDN4 |
| Pieces | 10 |
| Sizes | 1/4" to 1" |
| Thread form | UNF (Unified National Fine) |
| Material | Carbon Alloy Steel |
| Die form | Hexagon die nut |
| Case | Metal case with layout chart |
Related products
Individual die nuts in these threads: M446 UNF die nuts. Browse threading dies and sets and threading tools.
