Sutton M500NC25 25 Piece UNC Tap and Die Set - Carbon Steel

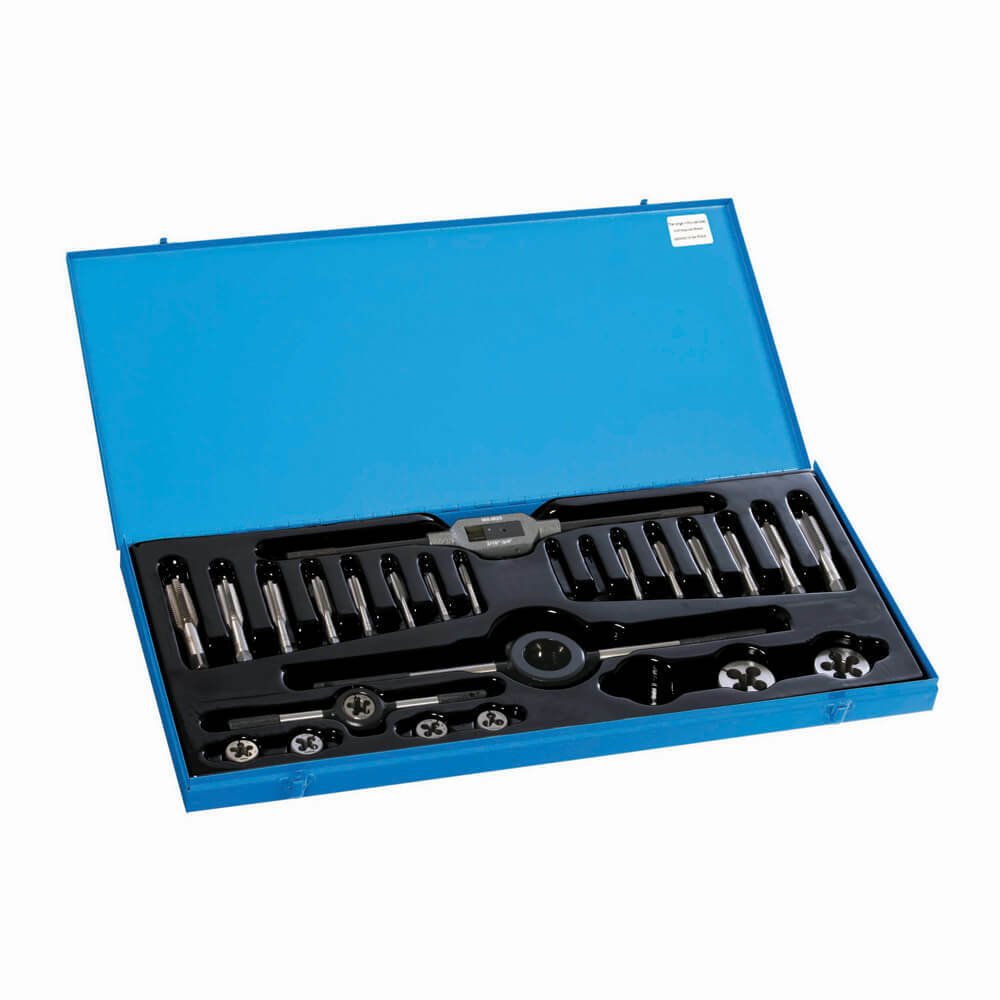

The Sutton M500NC25 is a 25 piece UNC tap and die set. It contains 7 taper taps and 7 bottoming taps (one of each per size), 7 button dies, a #3 bar type tap wrench and 1 inch and 2 inch button die holders, plus a bonus thread pitch gauge. The taps cut internal threads and the button dies cut or clean up external threads on studs and bolts.

The taps and dies are carbon alloy steel for general purpose and DIY use. They are not suitable for precision, safety or critical threads. The set comes in a metal case with a layout chart that shows where each item sits.

Taper taps are used when the material is difficult to work (alloy steel) and are recommended for small diameter threads. Bottoming taps have a continuous cutting edge with almost no taper and are usually used to cut threads to the bottom of a blind hole.

Where this set is used

• Cutting and cleaning up internal and external UNC threads in repair, maintenance and workshop jobs
• Re-threading damaged bolts, studs and tapped holes without having to hunt for the right size
• Keeping the common UNC sizes in one case in the workshop, store or service vehicle

Design features

• 25 piece set: 7 taper taps and 7 bottoming taps (one of each per size), 7 button dies, a #3 bar type tap wrench and 1 inch and 2 inch button die holders, plus a bonus thread pitch gauge
• Covers UNC 1/4 to 3/4
• Metal case with a layout chart that identifies where each item goes

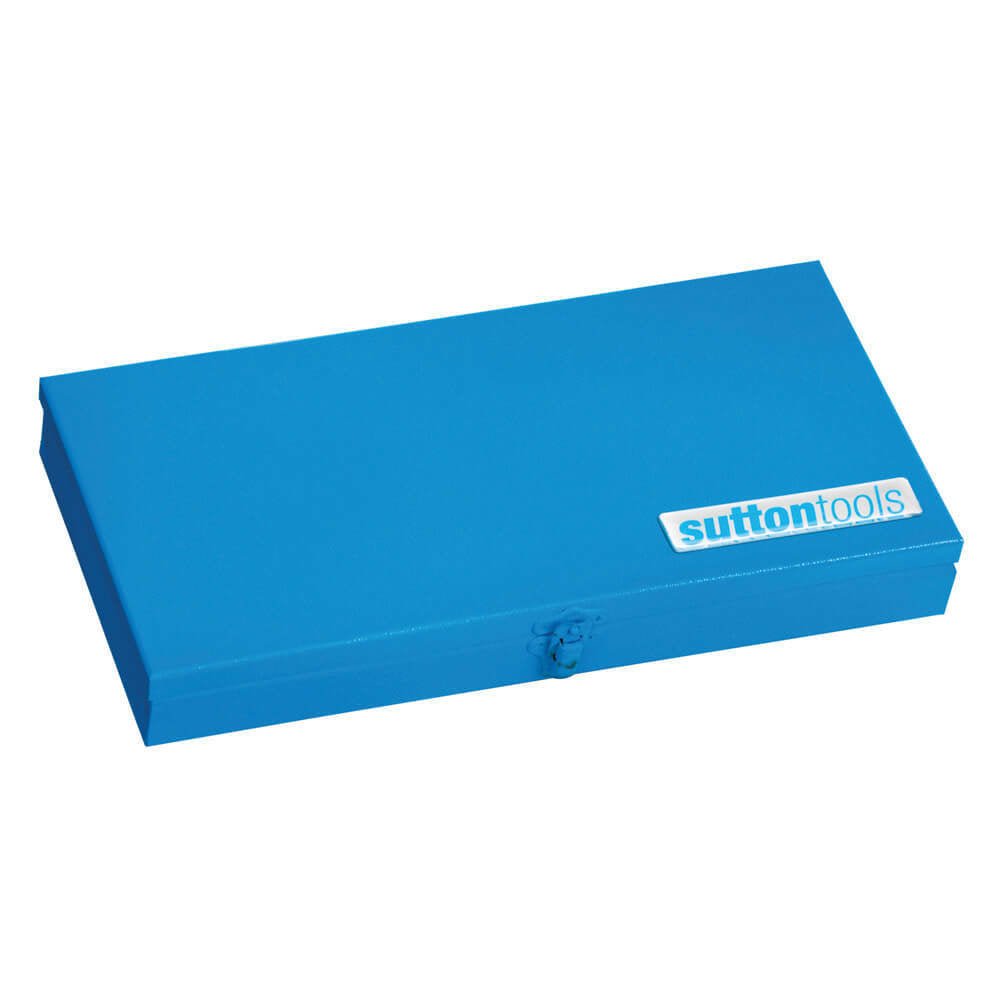

• Slim line case that fits a tool chest, drawer or work bench
• Button dies for the sizes marked * have a 2 inch outer diameter

What is in the set

Sizes

* Button dies for these sizes have a 2 inch outer diameter and fit the 2 inch button die holder.

Tap wrench sizes are the bar type tap wrench numbers in the Sutton range; each covers the thread range shown in the table above.

Key specifications
