Sutton M9030635 M903 T-Type Ratchet Tap Wrench M6 - Tool Steel
Available

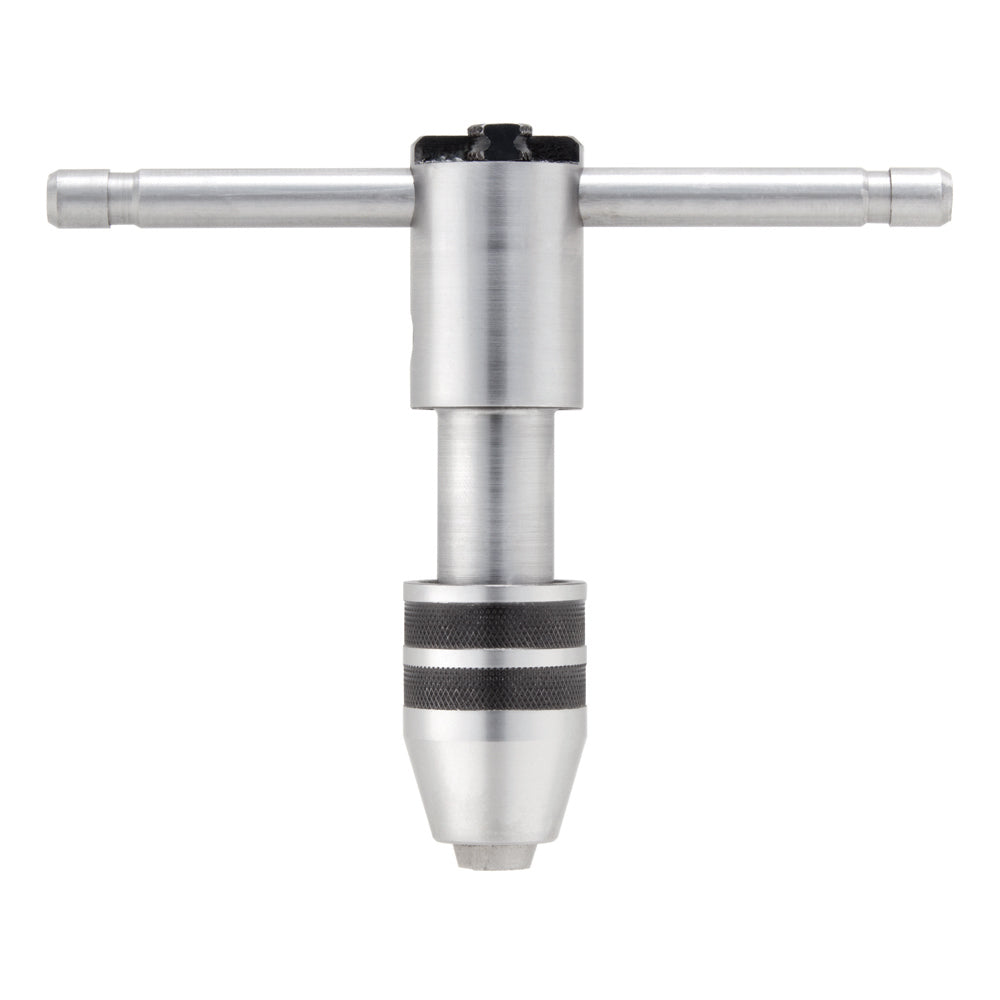

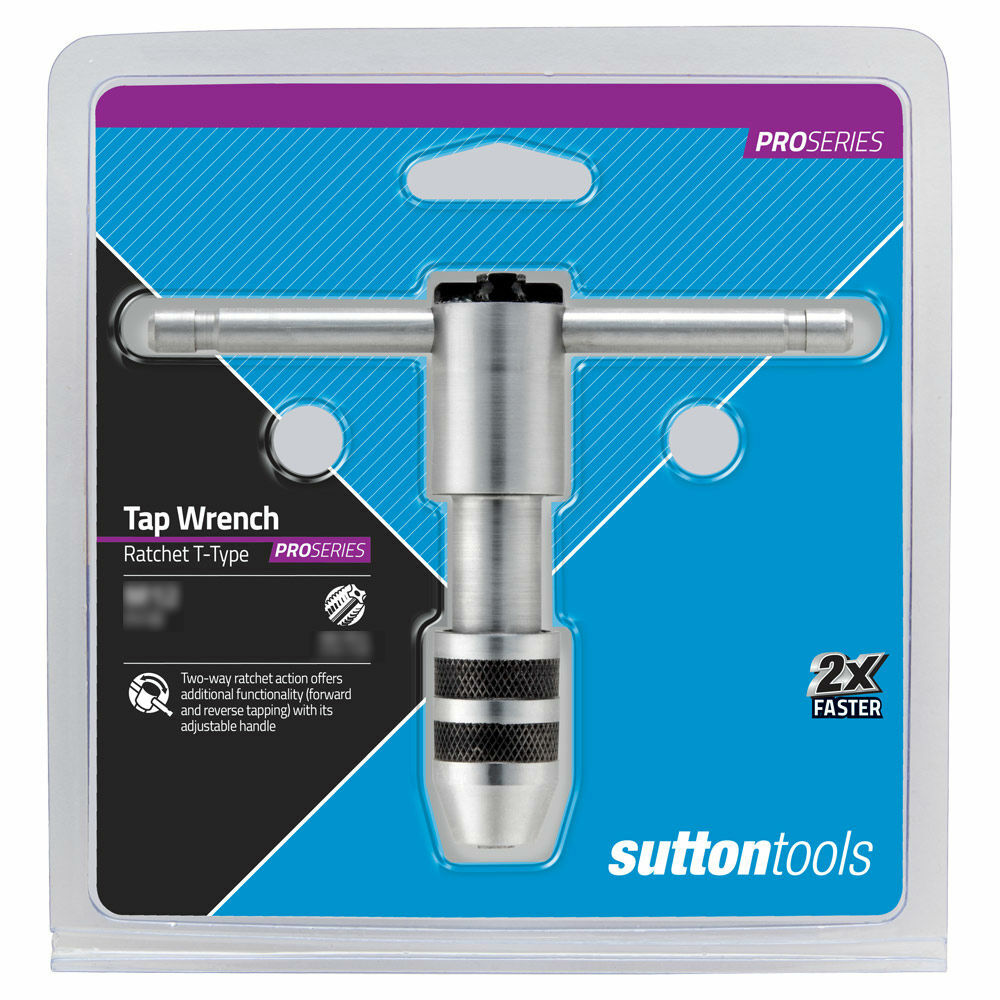

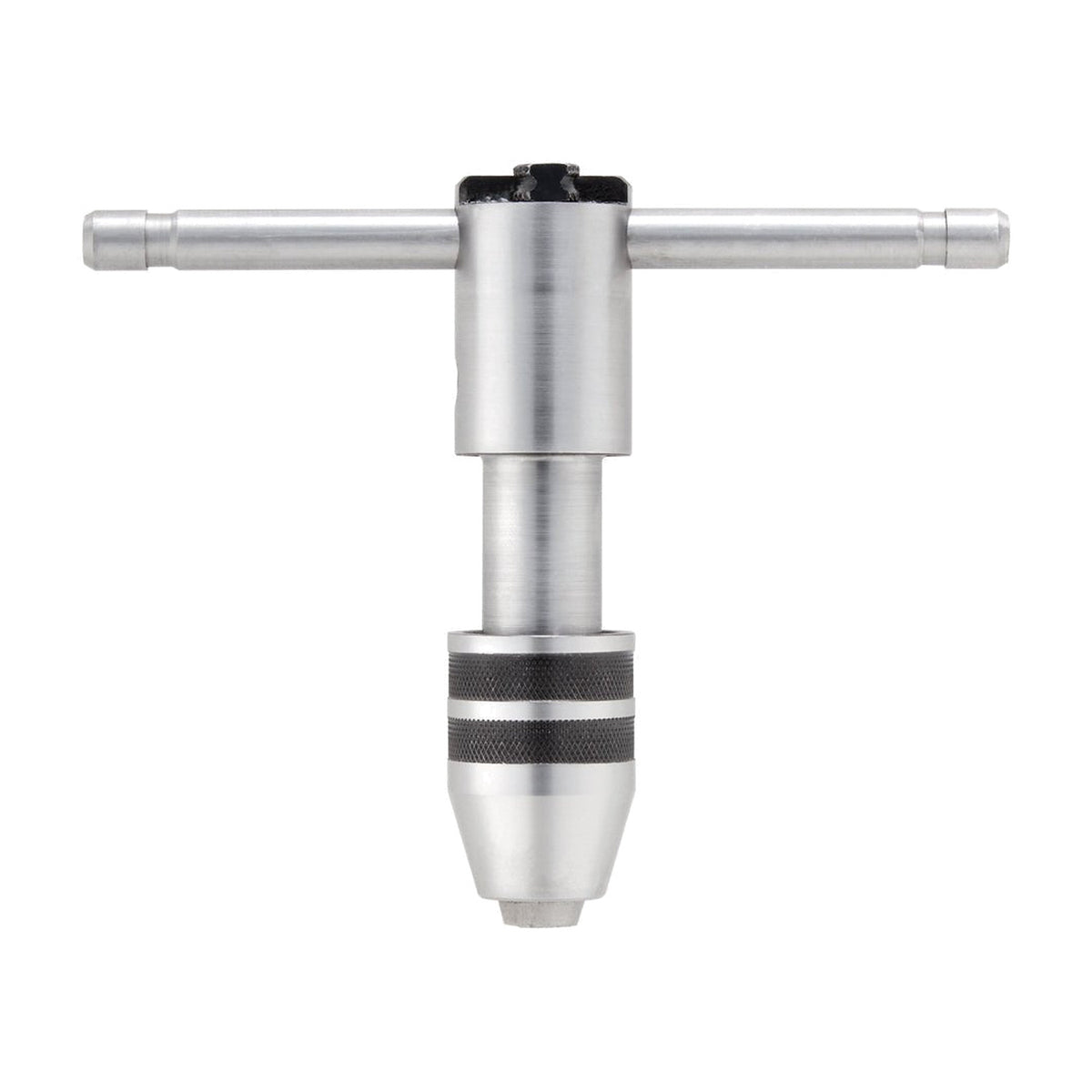

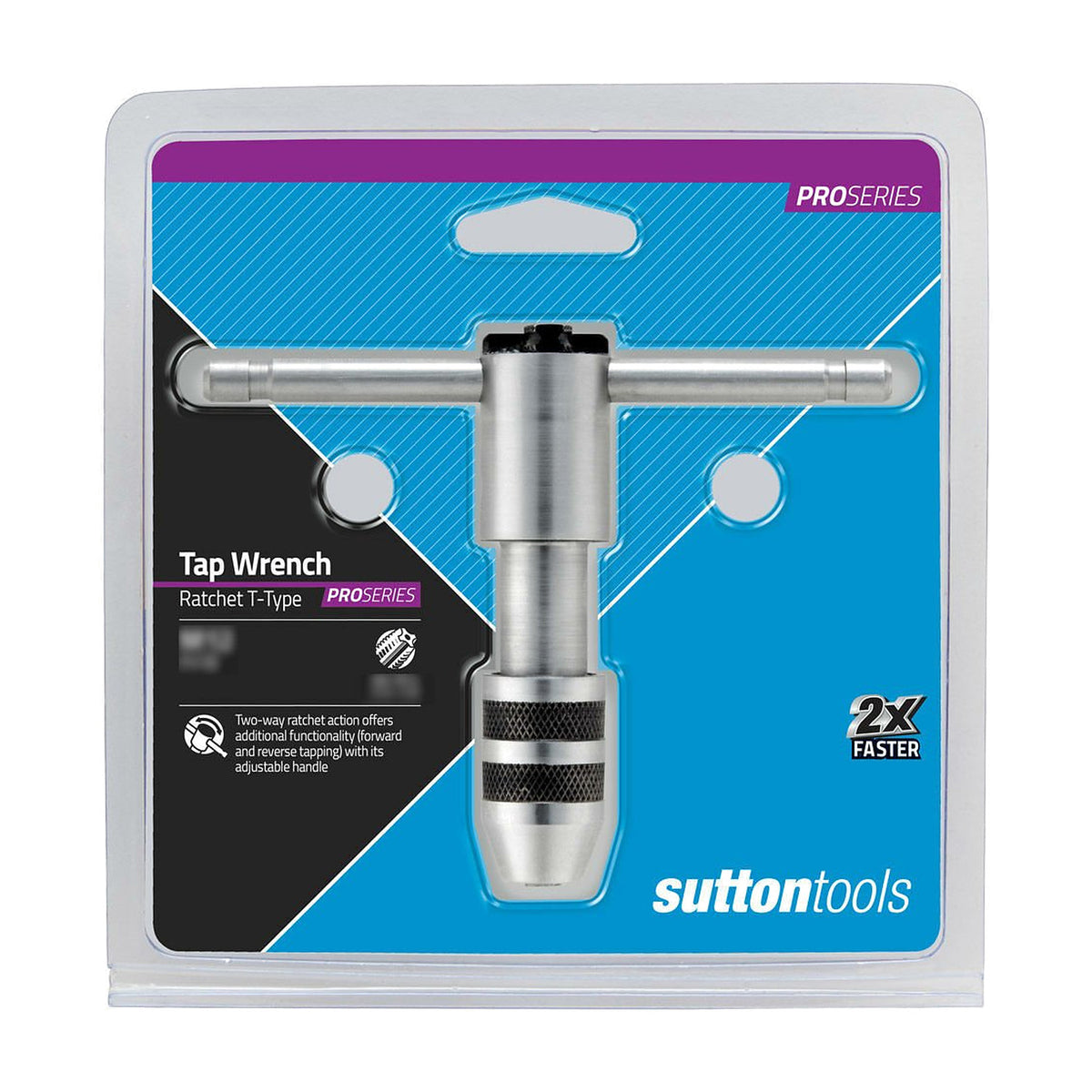

The Sutton M903 precision T-type ratchet tap wrench is the ratchet style of tap wrench. It adds an adjustable handle and a two-way ratchet action to the T-type design, and a knurled nut adjusts and tightens the jaws by turning. It is made in two sizes, the M6 (M3 to M6) and the M12 (M6 to M12), with a 280 mm long reach version of the M12.
The ratchet mechanism offers additional functionality and precision. It is used in DIY, trade, automotive, plumbing, metalworking and maintenance (MRO) work, and is made from tool steel.
For a plain T-handle, see the M901 T-type tap wrench. For larger taps, see the M908 bar type tap wrench.
Where this product is used
- Hand tapping in tight spots where a full turn of the handle is not possible
- Reaching taps in recessed holes with the long reach M12 (280 mm)
- Maintenance and repair tapping in the workshop or on site
Design features
- Two-way ratchet action for tapping in confined spaces
- Adjustable handle
- Knurled nut adjusts and tightens the jaws by turning
- Long reach M12 version, 280 mm
- Tool steel construction
- M3 to M6 and M6 to M12 sizes
Sizes and item numbers
| Item no. | Size | Tap range (metric) | Tap range (inch) |
|---|---|---|---|
| M9030635 | M6 | M3-M6 | 1/8 to 1/4 inch |
| M9031270 | M12 | M6-M12 | 1/4 to 1/2 inch |
| M9031200L | M12 long reach, 280 mm | M6-M12 | 1/4 to 1/2 inch |
Key specifications
| Specification | Detail |
|---|---|
| Brand | Sutton |
| Series | M903 precision T-type ratchet tap wrench |
| Material | Tool steel |
| Sizes | M6 (M3 to M6), M12 (M6 to M12), M12 long reach (280 mm) |
| Action | Two-way ratchet |
Related Sutton threading products
Compare or complete your set-up with: M901 T-type tap wrenches, M908 bar type tap wrenches.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
M3 - M6
Model Number: M9030635
-
M6 - M12 (Long Reach)
Model Number: M9031200L
-
M6 - M12
Model Number: M9031270
