Sutton H6000800 80mm EzyGrind Internal Pipe Cutter for PVC and HDPE Pipe
Available
The Sutton H600 EzyGrind is an internal pipe cutter for PVC and HDPE pipes from 40 to 150 mm. It is designed to cut at or below floor level by going inside the pipe and cutting from the inside with a power drill, and is especially suited to concrete slab construction and difficult-to-access areas. It comes in 36 mm and 80 mm sizes.

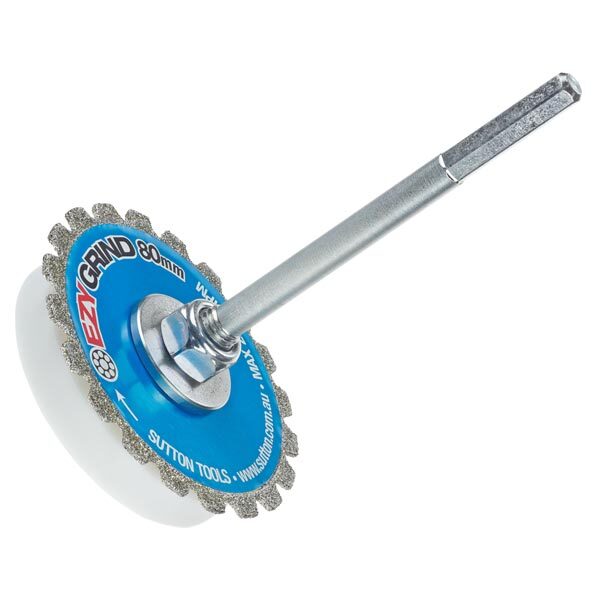

A replaceable diamond blade gives a clean, professional finish in one cutting action. The 7 mm hex shank fits all drill chucks, and each cutter includes two cutting guides for controlled cutting depth: white for standard PVC and black for HDPE pipes.
Where this product is used
- Cutting PVC and HDPE pipes (40 to 150 mm) at or below floor level, from inside the pipe.
- Concrete slab construction, cutting pipes at or below floor level.
- Difficult-to-access areas.
- Applications include plumbing, drainage, civil and building construction and maintenance work.
Design features
- Internal pipe cutter: cuts PVC and HDPE pipe from the inside at or below floor level.
- Replaceable diamond blade.
- Diamond coating for smooth cutting in abrasive materials.
- 7 mm hex shank fits all drill chucks.
- Includes two cutting guides for controlled cutting depth: white for standard PVC, black for HDPE.
- Clean, professional finish in one cutting action.
- Two sizes: 36 mm (pipe 40 to 80 mm) and 80 mm (pipe 90 to 150 mm).
Sizes, item numbers and pipe sizes
| Sutton item no. | Cutter size | DWV pipe (mm) | HDPE pipe (mm) | HD PVC pipe (mm) | Pieces |
|---|---|---|---|---|---|
| H600 0360 | 36 mm | 40-65 | 50-75 | 50-80 | 1 |
| H600 0800 | 80 mm | 90-150 | 90-150 | 100-125 | 1 |
Cutting guide colour by pipe type
For the 80 mm cutter on 90 to 150 mm pipe, choose the guide by pipe type:
| Pipe | Diameter | Guide |
|---|---|---|
| DWV | 90 to 150 mm | White |
| HDPE | 90 to 150 mm | Black |
| PVC Storm | 90 to 150 mm | White |
| HD PVC | 100 to 125 mm | Black |

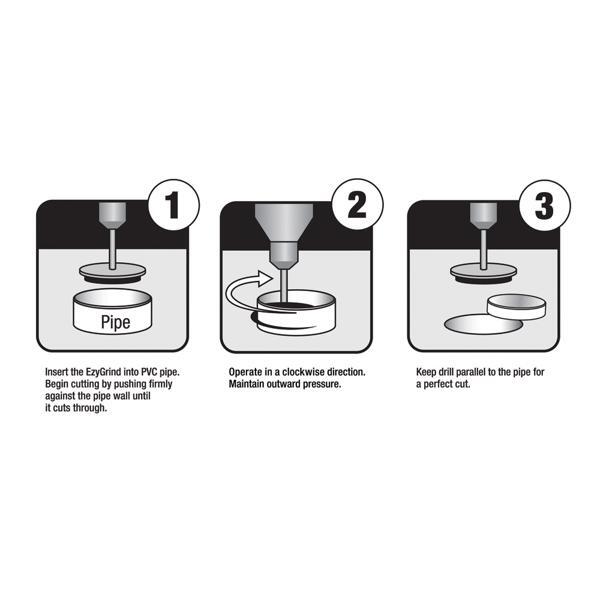

Using the EzyGrind
- Insert the EzyGrind inside the PVC or HDPE pipe and begin cutting by pushing firmly against the pipe wall until it cuts through.
- Operate the drill in a clockwise direction and maintain outward pressure.
- Keep the drill parallel to the pipe for a clean cut.
- Do not operate in excess of 2,500 rpm.
- Make sure the back side of the material being cut is clear of wires, cables, pipes and other objects that might cause hazards.
- Use the white cutting guide for standard PVC and the black guide for HDPE pipe, to control cutting depth.
Key specifications
| Specification | Detail |
|---|---|
| Item numbers | H600 0360 (36 mm) and H600 0800 (80 mm) |
| Type | Internal pipe cutter, diamond blade |
| Pipe materials | PVC and HDPE |
| Pipe size range | 40 to 150 mm |
| Drive | 7 mm hex shank, fits all drill chucks |
| Blade | Replaceable diamond blade |
| Guides | Two cutting guides, white (standard PVC) and black (HDPE) |
| Maximum speed | 2,500 rpm |
| Pieces per item | 1 |
Related products
Replacement blades: H601 EzyGrind replacement diamond blades, 36 mm and 80 mm, 2 piece.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton H600 EzyGrind Internal Pipe Cutter - 36mm and 80mm, PVC and HDPE Pipe 40 to 150mm: 80
SKU: A0133433 | Model: H6000800
This is the 80mm size option of the Sutton H600 EzyGrind Internal Pipe Cutter - 36mm and 80mm, PVC and HDPE Pipe 40 to 150mm. Key details for this option: pipe size dwv 90-150, pipe size hdpe 90-150, pipe size hd pvc 100-125.
Pipe Cutter - Internal - Ezygrind
Sutton Tools Ezygrind is the safest & fastest way to cut pipes at or below floor level by inserting the tool inside the pipe and cutting from the inside.
It is especially suited to concrete slab construction and difficult to access areas. EzyGrind will produce a clean professional finish with one cutting action.
EzyGrind is designed to cut PVC and HDPE pipes (sizes from 40 – 150mm).
Suitable for pipes including encased pipes, pipe penetrations, conduits, stormwater, sewer, WC’s, shower drains, floor wastes, downpipes, and inspection openings.
Ezygrind is your safest choice as it works with a power drill while cutting from inside the pipe protects the user from blade contact.
The alternate method of using an angle grinder will cause potential safety problems.
Many state governments recommend using an alternative to an angle grinder wherever possible.
Specification
Material: Diamond
