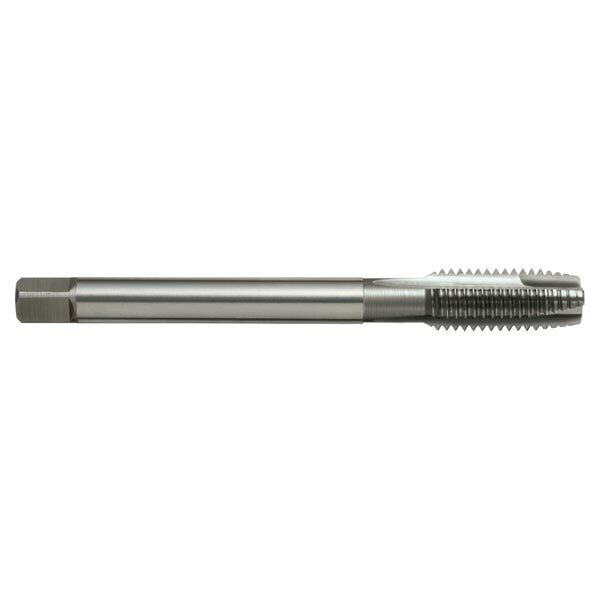

Sutton T1231800 Metric M18 x 2.5(pitch) Spiral Point Tap - HSSE V3 Ni
Sutton T1232000 Metric M20 x 2.5(pitch) Spiral Point Tap - HSSE V3 Ni
Sutton T123 Metric Spiral Point Tap - Premium HSS Ni1
Sutton T123 Metric Spiral Point Tap - Premium HSS Ni2
Sutton T1231200 Metric M12 x 1.75(pitch) Spiral Point Tap - HSSE V3 Ni
Sutton T1231400 Metric M14 x 2(pitch) Spiral Point Tap - HSSE V3 Ni
Sutton T1231600 Metric M16 x 2(pitch) Spiral Point Tap - HSSE V3 Ni
Sutton T1231800 Metric M18 x 2.5(pitch) Spiral Point Tap - HSSE V3 Ni
Sutton T1232000 Metric M20 x 2.5(pitch) Spiral Point Tap - HSSE V3 Ni

Sutton T123 Metric Spiral Point Tap - Premium HSS Ni

Sutton T123 Metric Spiral Point Tap - Premium HSS Ni

SKU: A0012982

$107.55
$107.55
Inc. GST
Buy It Now

Available

The Sutton T123 Metric Spiral Point Tap by Sutton Tools is a 0 made from Premium Grade High Speed Steel (HSSE-V3). It offers M12 thread size and is suitable for Aluminum & Magnesium, wrought alloy - Non Heat Treatable.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

Dimensions

  • d1: M12
  • d2 (mm): 9
  • l1 (mm): 110
  • l2 (mm): 28
  • l4 (mm): 10
  • Square Size (mm): 7
  • z: 3
  • Drill Size (mm): 10.2 (drill)
  • Pitch (mm): 1.75(pitch)

Features

  • Suitable for use in soft materials
  • CrN for copper and non-ferrous materials
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: W (for soft materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Plasma Nitride (Ni)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Dimensions

  • d1: M12
  • d2 (mm): 9
  • l1 (mm): 110
  • l2 (mm): 28
  • l4 (mm): 10
  • Square Size (mm): 7
  • z: 3
  • Drill Size (mm): 10.2 (drill)
  • Pitch (mm): 1.75(pitch)

Specifications

  • Designation: W (for soft materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Plasma Nitride (Ni)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Features

  • Suitable for use in soft materials
  • CrN for copper and non-ferrous materials
  • Through holes
  • Depths up to 3 x d1
