Sutton T126 Metric Spiral Point Tap - Premium HSS CrN1

Sutton T126 Metric Spiral Point Tap - Premium HSS CrN2

Sutton T1260300 Metric M3 x 0.5 Spiral Point Tap - HSSE V3 CrN

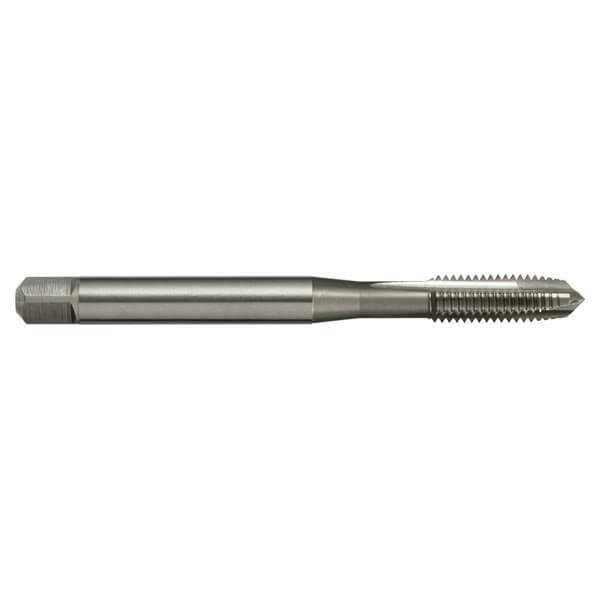

Sutton T1260400 Metric M4 x 0.7 Spiral Point Tap - HSSE V3 CrN

Sutton T1260500 Metric M5 x 0.8 Spiral Point Tap - HSSE V3 CrN

Sutton T1260600 Metric M6 x 1 Spiral Point Tap - HSSE V3 CrN

Sutton T1260800 Metric M8 x 1.25 Spiral Point Tap - HSSE V3 CrN

Sutton T1261000 Metric M10 x 1.5 Spiral Point Tap - HSSE V3 CrN

Description +

Dimensions

d1: M3
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 11
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 3
Drill Size (mm): 2.5 (drill)
Pitch (mm): 0.5 (pitch)

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Through Holes
Depths up to 3 x d

Specifications

Designation: Cu (for copper materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Chromium Nitride (CrN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Specifications +

Dimensions

d1: M3
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 11
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 3
Drill Size (mm): 2.5 (drill)
Pitch (mm): 0.5 (pitch)

Specifications

Designation: Cu (for copper materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Chromium Nitride (CrN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Application +

Applications

Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Features & Benefits +

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Through Holes
Depths up to 3 x d

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T126 Metric Spiral Point Tap - Premium HSS CrN

SKU: A0012995

$57.54

Inc. GST

Buy It Now

Available

The Sutton T126 Metric Spiral Point Tap by Sutton Tools is a 0 with CrN finish. It provides Drill Size 8.5 (drill) and is suitable for Copper & Copper alloys (Brass/Bronze).

FREE SHIPPING OVER $299*
