Sutton T127 Metric Spiral Point Tap - Premium HSS CrN1

Sutton T127 Metric Spiral Point Tap - Premium HSS CrN2

Sutton T1271200 Metric M12 x 1.75 Spiral Point Tap - HSSE V3 CrN

Sutton T1271600 Metric M16 x 2 Spiral Point Tap - HSSE V3 CrN

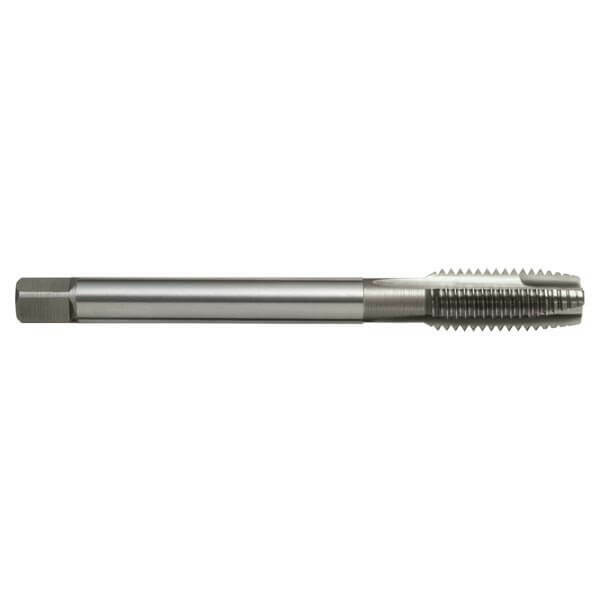

Sutton T1272000 Metric M20 x 2.5 Spiral Point Tap - HSSE V3 CrN

Description +

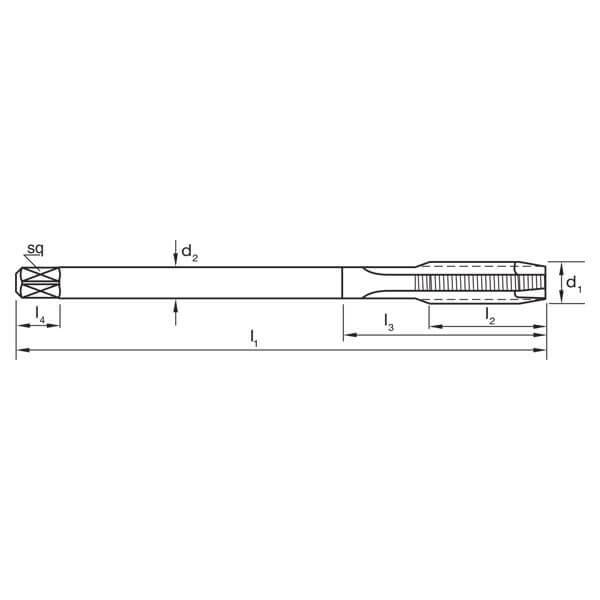

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 28
l4 (mm): 10
Square Size: 7
z: 3
Drill Size (mm): 10.2 (drill)
Pitch (mm): 1.75 (pitch)

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Through Holes
Depths up to 3 x d

Specifications

Designation: Cu (for copper materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Chromium Nitride (CrN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Specifications +

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 28
l4 (mm): 10
Square Size: 7
z: 3
Drill Size (mm): 10.2 (drill)
Pitch (mm): 1.75 (pitch)

Specifications

Designation: Cu (for copper materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Chromium Nitride (CrN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Application +

Applications

Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Features & Benefits +

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Through Holes
Depths up to 3 x d

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T127 Metric Spiral Point Tap - Premium HSS CrN

SKU: A0013001

$127.81

Inc. GST

Buy It Now

Available

The Sutton T127 Metric Spiral Point Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel (HSSE-V3). It provides a drill size of 10.2 mm (drill) and is suitable for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn).

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Taps-Dies-Threading-Catalogue

Sutton-Tools-ISO-Taps-Catalogue
