Description
Description

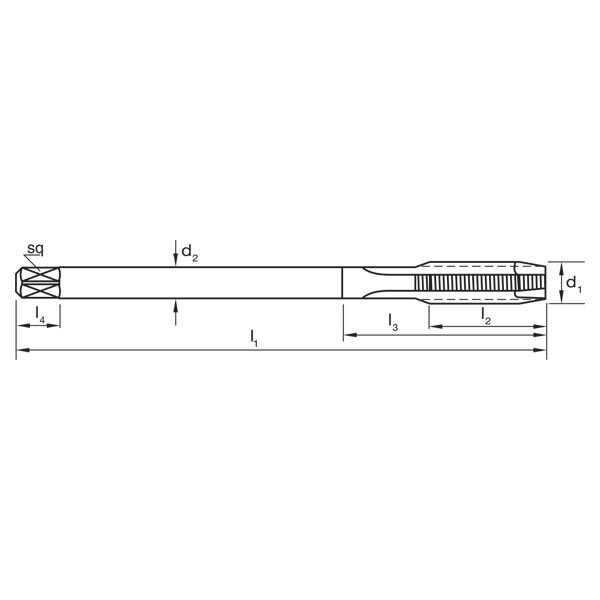

Dimensions
- d1: M18
- d2 (mm): 14
- l1 (mm): 125
- l2 (mm): 34
- l4 (mm): 14
- Square Size (mm): 11
- z: 4
- Drill Size (mm): 15.5 (drill)
- Pitch (mm): 2.5 (pitch)
Features
- Suitable for harder short chipping materials up to 42 HRc
- Through holes
- Depths up to approx. 3 x d1
Specifications
- Designation: NH
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Aluminium Nitride (TiAIN)
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form B / 4.5 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Annealed
- Stainless Steel - Precipitation Hardening
- Cast Iron, Malleable – Ferritic
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Specifications
Specifications
Dimensions
- d1: M18
- d2 (mm): 14
- l1 (mm): 125
- l2 (mm): 34
- l4 (mm): 14
- Square Size (mm): 11
- z: 4
- Drill Size (mm): 15.5 (drill)
- Pitch (mm): 2.5 (pitch)
Specifications
- Designation: NH
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Aluminium Nitride (TiAIN)
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form B / 4.5 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Annealed
- Stainless Steel - Precipitation Hardening
- Cast Iron, Malleable – Ferritic
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Features & Benefits
Features & Benefits
Features
- Suitable for harder short chipping materials up to 42 HRc
- Through holes
- Depths up to approx. 3 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

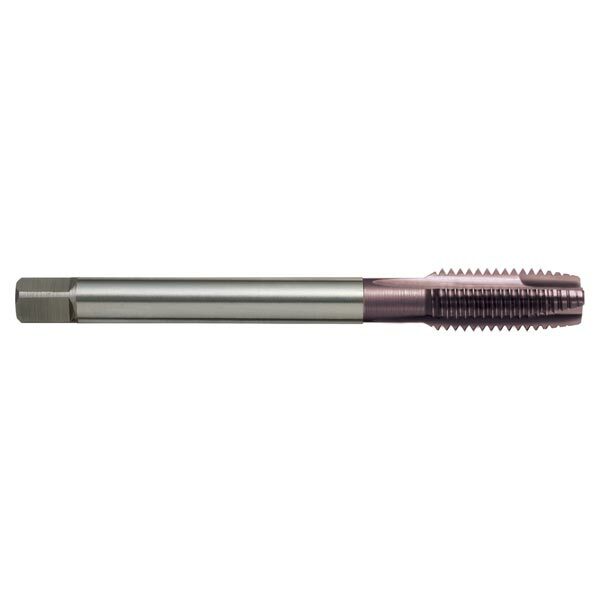

Sutton T141 Spiral Point Tap - Vanadium HSS TiAIN
Sutton T141 Spiral Point Tap - Vanadium HSS TiAIN
SKU: A0013042
- Wide Range
- Reliable Services
- Proven Trust
Out of stock
The Sutton T141 Spiral Point Tap by Sutton Tools is a 0 made from Powdered Metallurgy - Vanadium Grade High Speed Steel. It provides M18 and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered.
